VKB Visualization Guide

Interactive knowledge graph visualization and exploration.

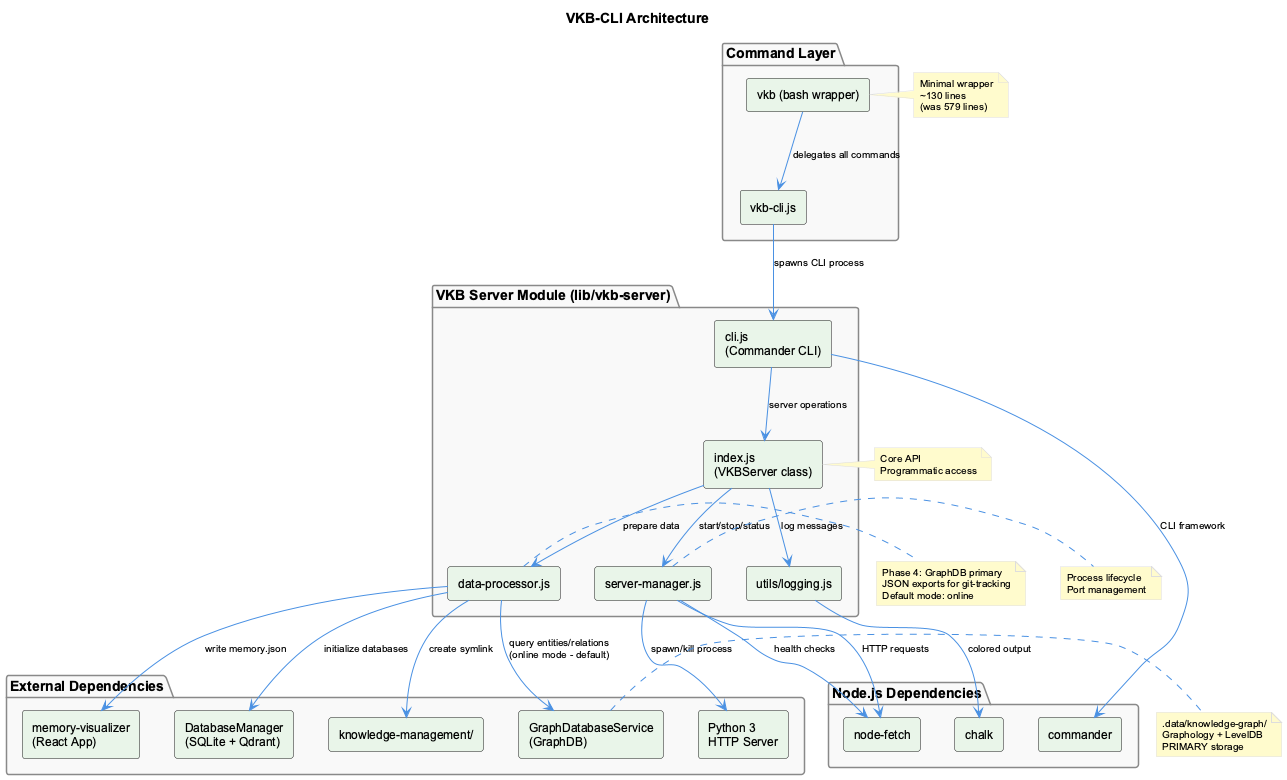

VKB CLI Architecture

Overview

VKB (Visualize Knowledge Base) is a cross-platform knowledge visualization server that provides interactive web-based exploration of knowledge graphs. It offers comprehensive server lifecycle management, real-time data updates, and programmatic control.

Key Features

  • Interactive Visualization: Explore knowledge graphs in browser
  • Server Management: Start, stop, restart with automatic recovery
  • Real-time Updates: Refresh data without restart
  • Health Monitoring: Automatic health checks and status reporting
  • Cross-Platform: Works on Windows, macOS, and Linux
  • Programmatic API: Control server from Node.js code

Visualization Screenshots

Knowledge Graph Viewer — 281 entities with hierarchical Project/Component/SubComponent/Detail layout, filtered by team and learning source

Graph overview with entity type filters, team/view selectors, learning source toggle (Batch/Online/Combined), and chronological history panel.

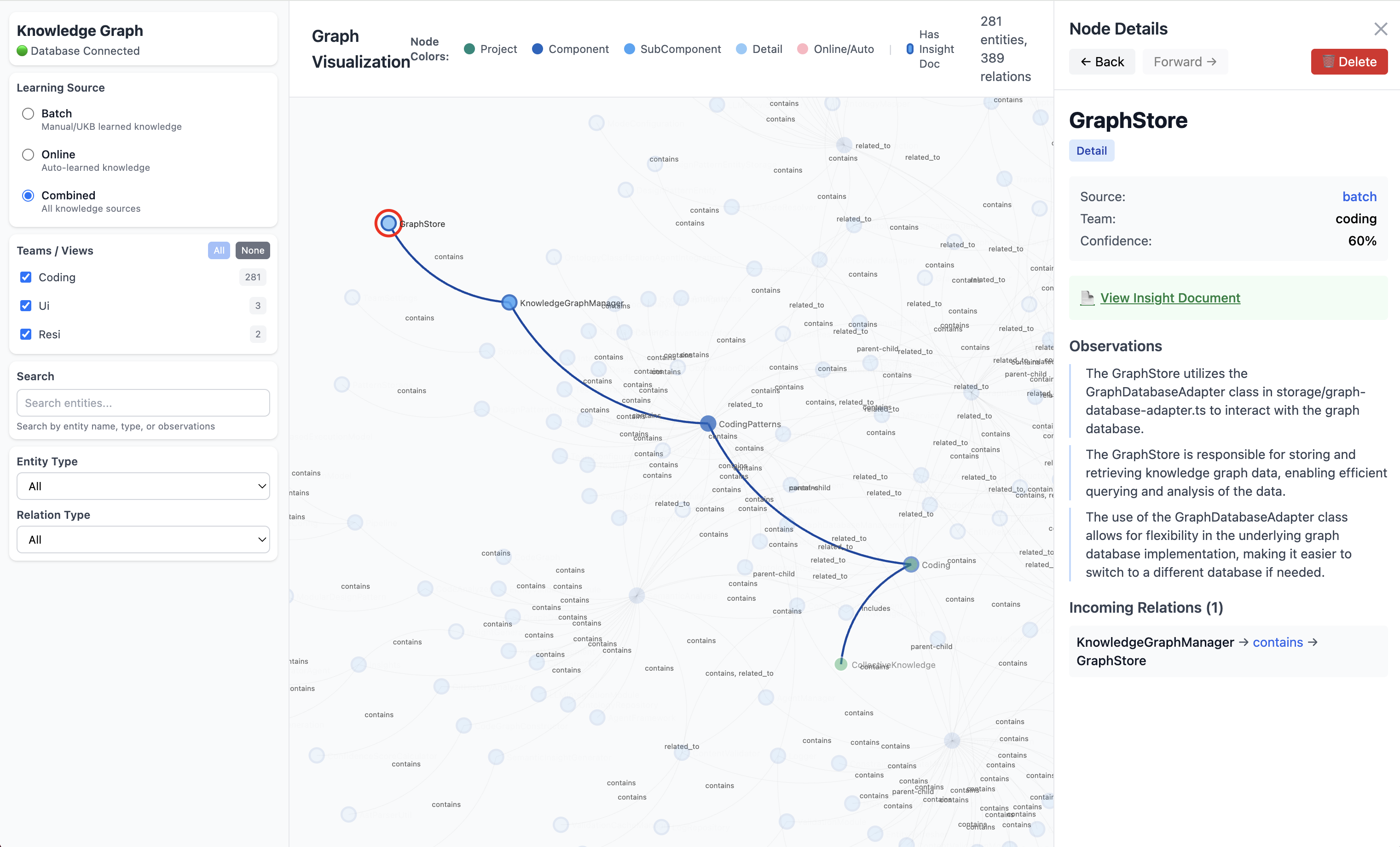

Node Details Panel — GraphStore entity showing observations, confidence score, and incoming relations

Clicking a node reveals its details: entity type, source, team, confidence, observations, and relation links. The "View Insight Document" button opens the full insight.

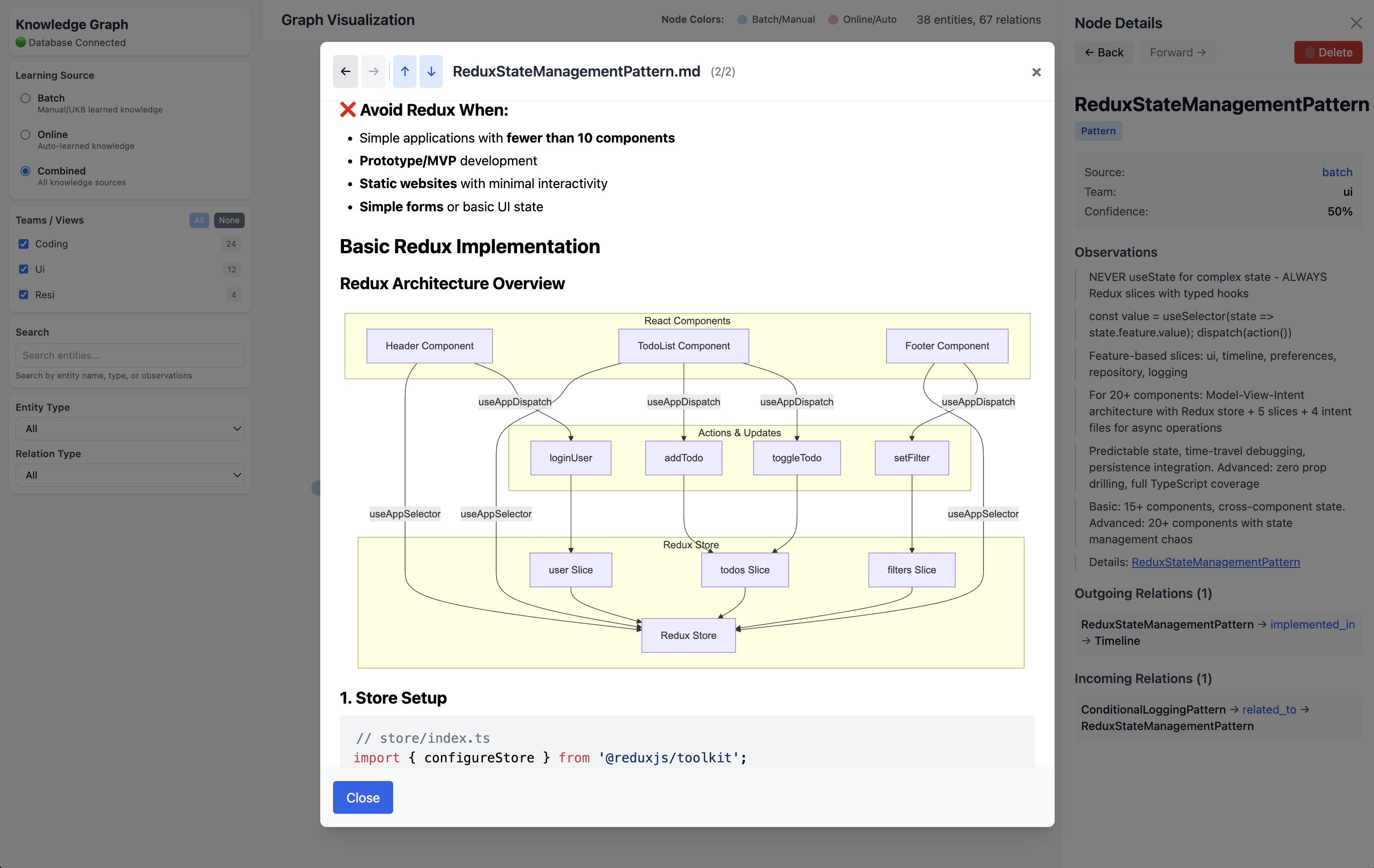

Insight Document Viewer — ReduxStateManagementPattern with rendered markdown, architecture diagram, and code examples

Insight documents render full markdown with diagrams, code blocks, and structured guidance — displayed in a modal overlay alongside the node details panel.

Quick Reference

Basic Commands

# Start visualization server (default command)
vkb
vkb start

# Stop server gracefully
vkb stop

# Restart server
vkb restart

# Check server status
vkb status

# View server logs
vkb logs

# Start in foreground for debugging
vkb fg

# Check what's using the port
vkb port

Access Visualization

Once started, visualization is available at:

http://localhost:8080

Server automatically opens browser on startup (disable with --no-browser)

Usage Modes

1. Background Server (Default)

vkb start

What it does:

  • Starts server in background
  • Opens browser automatically
  • Runs as daemon process
  • PID tracked for management
  • Logs to /tmp/vkb-server.log

Use when:

  • Daily development sessions
  • Long-running visualization access
  • Team knowledge sharing
  • Production-like deployment

2. Foreground Mode

vkb fg
vkb foreground

What it does:

  • Runs server in foreground
  • Logs output to console
  • Blocks terminal
  • Useful for debugging

Use when:

  • Debugging server issues
  • Development and testing
  • Monitoring real-time logs
  • Troubleshooting startup problems

3. Server Management

# Check status
vkb status --json --verbose

# View logs
vkb logs -n 100 --follow

# Check port usage
vkb port --kill

# Force restart
vkb stop --force && vkb start

Server Lifecycle

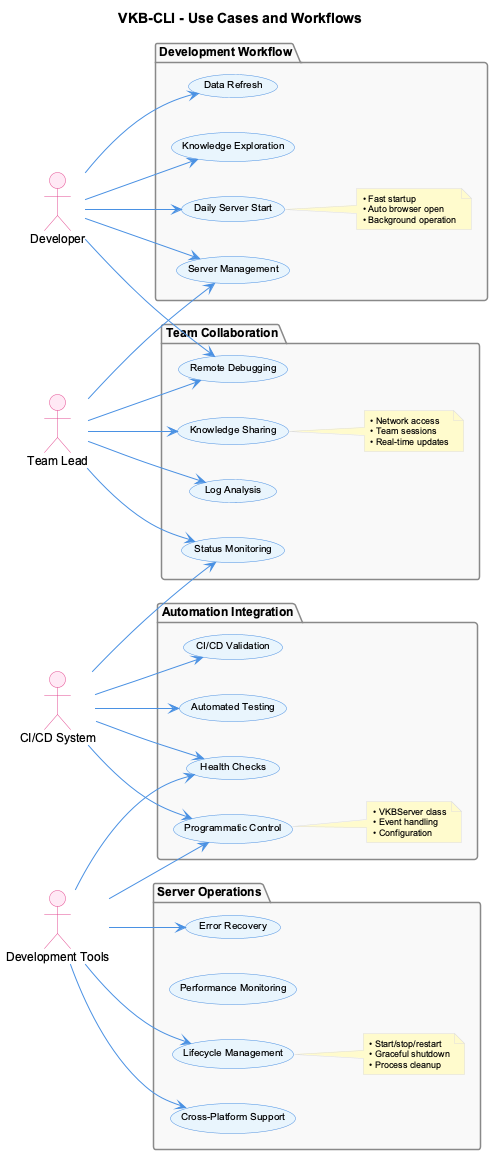

VKB CLI Use Cases

Startup Sequence

  1. Pre-startup Validation
  2. Environment dependency checking (Node.js, Python 3)
  3. Project structure validation
  4. Port availability verification

  5. Existing process detection

  6. Data Preparation

  7. Knowledge base loading and parsing
  8. Format conversion (JSON to NDJSON)
  9. Symlink creation for file serving

  10. Asset verification

  11. Server Initialization

  12. HTTP server process spawning
  13. PID tracking and management
  14. Health verification

  15. Browser integration (optional)

  16. Runtime Monitoring

  17. Process health checks
  18. Log monitoring
  19. Error detection and recovery
  20. Resource usage tracking

Shutdown Sequence

  1. Graceful Termination
  2. Server process signaling (SIGTERM)
  3. Connection draining
  4. Resource cleanup

  5. PID file removal

  6. Forced Cleanup

  7. Process termination (SIGKILL if needed)
  8. Port release verification
  9. Temporary file cleanup
  10. Log file finalization

Data Management

Real-time Data Refresh

# Refresh data without restarting server
vkb-cli data refresh

# Validate data integrity
vkb-cli data validate

# Export data in various formats
vkb-cli data export --format json --output kb-export.json

Workflow Integration

# Knowledge capture happens via:
# 1. Continuous Learning (automatic during coding)
# 2. MCP Semantic Analysis (type "ukb" in Claude chat)

# Refresh visualization after knowledge updates
vkb-cli data refresh

# Or restart for comprehensive refresh
vkb restart

HTTP API Endpoints

When running, VKB exposes HTTP endpoints for integration:

Health Check

curl http://localhost:8080/health

Response:

{
  "status": "healthy",
  "uptime": 135000,
  "version": "2.0.0",
  "timestamp": "2025-06-20T10:30:00.000Z"
}

Server Status

curl http://localhost:8080/api/status

Response:

{
  "running": true,
  "pid": 12345,
  "port": 8080,
  "memory": {
    "rss": 47284224,
    "heapTotal": 32768000,
    "heapUsed": 18234000
  }
}

Knowledge Base Info

curl http://localhost:8080/api/kb/info

Response:

{
  "entities": 45,
  "relations": 123,
  "lastUpdated": "2025-06-20T10:25:00.000Z"
}

Data Refresh

curl -X POST http://localhost:8080/api/kb/refresh

Response:

{
  "success": true,
  "entities": 45,
  "relations": 123,
  "duration": 1250
}

Programmatic API

VKBServer Class

const { VKBServer } = require('vkb-server');

// Create server instance
const server = new VKBServer({
  port: 8080,
  projectRoot: process.cwd(),
  logLevel: 'info',
  autoRestart: true
});

// Start server
await server.start({
  foreground: false,
  openBrowser: true
});

// Get server status
const status = await server.status();
// Use status.port for debugging

// Refresh data
const result = await server.refreshData();
// result.entities and result.relations available

// Health check
const health = await server.healthCheck();
if (!health.healthy) {
  // Handle unhealthy server
}

// View logs
const logs = await server.logs({ lines: 100, level: 'error' });

// Stop server
await server.stop();

Event Handling

server.on('starting', () => {
  // Server is starting
});

server.on('started', (result) => {
  // Server started at result.url
});

server.on('stopped', (result) => {
  // Server stopped, result.pid available
});

server.on('error', (error) => {
  // Handle error
});

server.on('health-check', (result) => {
  if (!result.healthy) {
    // Health check failed
  }
});

Common Use Cases

1. Daily Development Session

# Start development session
cd /path/to/project
vkb start

# Server starts, opens browser automatically
# Developer explores knowledge graph throughout day

# End of day
vkb stop

2. Knowledge Base Updates

# Capture new insights (in Claude chat)
# Type: "ukb"

# Refresh without restart
vkb-cli data refresh

# Or full restart
vkb restart

3. Debugging and Troubleshooting

# Start in foreground for debugging
vkb fg --debug

# Monitor logs in real-time
vkb logs --follow

# Check port conflicts
vkb port

# Check health status
vkb status --verbose

# Force restart if needed
vkb stop --force && vkb start

4. Multi-Project Development

# Project A
cd /path/to/project-a
vkb start --port 8080

# Project B (different port)
cd /path/to/project-b
vkb start --port 8081

# Check both servers
vkb-cli server status --all

# Access in browser
open http://localhost:8080  # Project A
open http://localhost:8081  # Project B

# Cleanup
vkb-cli server stop --all

5. Team Knowledge Sharing

# Presenter starts server
vkb start

# Allow network access
vkb-cli config set host 0.0.0.0
vkb restart

# Team accesses via network: http://presenter-ip:8080

# Refresh with latest insights during session
vkb-cli data refresh

# Generate sharing report after session
vkb-cli server logs --since "1 hour ago" > session-log.txt
vkb-cli data export --format json --output session-knowledge.json

Configuration

Environment Variables

# Default server port
export VKB_PORT=8080

# Project root directory
export VKB_PROJECT_ROOT=/path/to/project

# Logging level
export VKB_LOG_LEVEL=info

# Enable auto-restart
export VKB_AUTO_RESTART=true

# Disable automatic browser opening
export VKB_NO_BROWSER=true

Configuration File

Create .vkbrc in project root:

{
  "port": 8080,
  "logLevel": "info",
  "autoRestart": true,
  "healthCheckInterval": 30000,
  "browser": {
    "enabled": true,
    "command": "open"
  },
  "server": {
    "host": "localhost",
    "workers": 1
  }
}

Troubleshooting

Common Issues

# Port already in use
vkb port --kill
vkb start

# Server not responding
vkb stop --force
vkb start

# Data not updating
vkb-cli data refresh

# Permission issues
sudo vkb start  # or fix file permissions

# Check logs for errors
vkb logs --level error

Debug Mode

# Start with debug logging
vkb fg --debug

# Check detailed status
vkb status --json --verbose

# Monitor health
watch -n 5 'vkb status'
