Constraints - Code Quality Enforcement¶

Real-time code quality enforcement through PreToolUse hooks.

What It Does¶

• PreToolUse Hook Enforcement - Blocks violations BEFORE tool execution
• 20 Active Constraints - Security, architecture, code quality, PlantUML, documentation
• Severity-Based Enforcement - CRITICAL/ERROR blocks, WARNING/INFO allows
• Compliance Scoring - Real-time 0-10 scoring
• Dashboard Monitoring - Live violation feed at http://localhost:3030

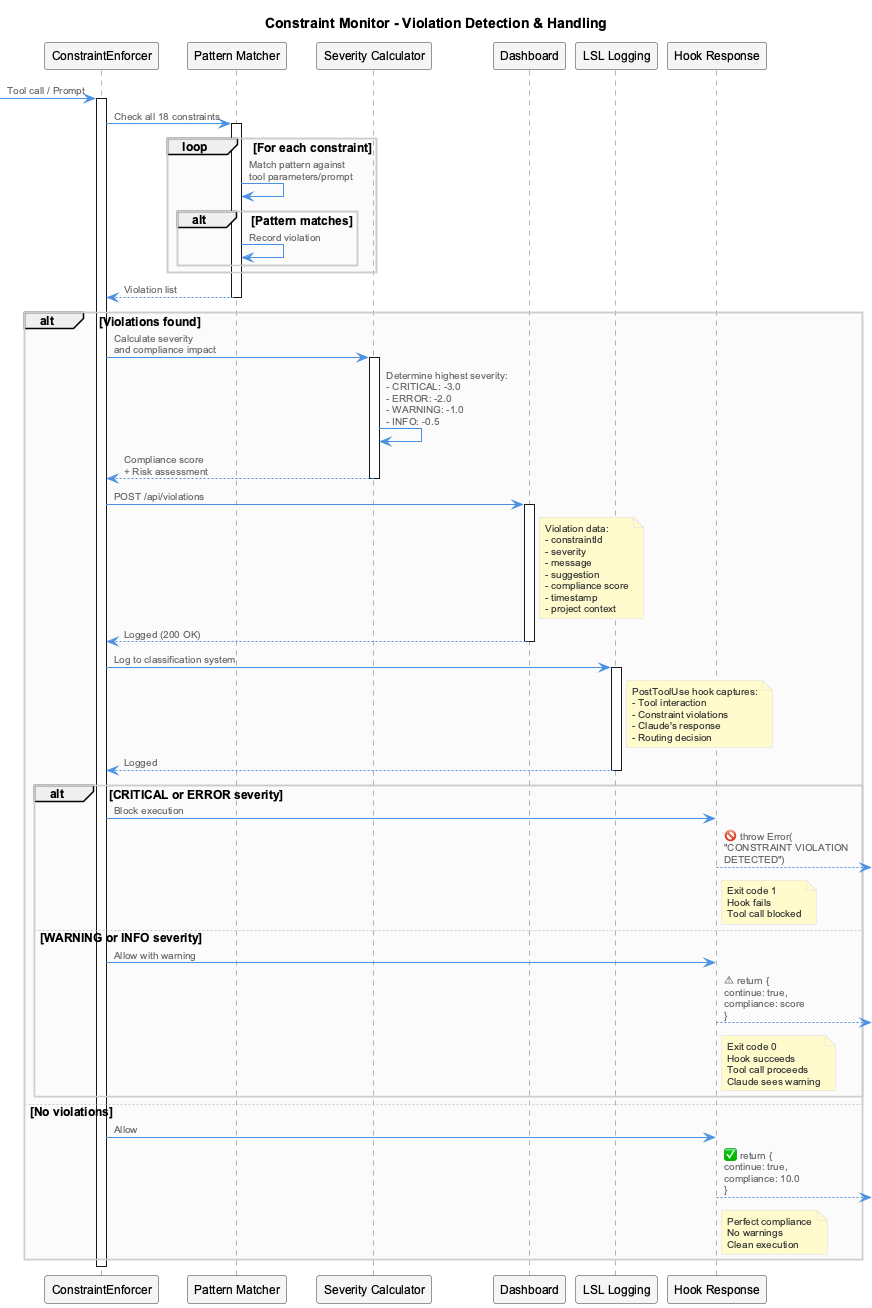

How It Works¶

1. PreToolUse Hook Fires - Before tool execution
2. Constraint Check - Analyzes parameters against 20 constraints
3. Pattern Matching - Regex patterns detect violations
4. Severity Evaluation - Determines enforcement action
5. Decision:
6. CRITICAL/ERROR: BLOCK (exit code 1)
7. WARNING/INFO: ALLOW with feedback (exit code 0)

Severity Levels¶

Active Constraints¶

Security (2) - 100% Detection¶

Architecture (3) - 100% Detection¶

Code Quality (5)¶

no-magic-numbers was retired — its \b\d{2,}\b pattern matched any 2+ digit number (port numbers, PIDs, line numbers, even Bash command digits) and produced 96% of all logged violations, drowning out everything else.

no-console-log carries tool_filter: ['Edit','Write'] and file_pattern: \.(js|ts|jsx|tsx|mjs|cjs)$ so it only fires when source code actually changes. no-backup-files carries applies_to: file_path so it inspects target paths instead of file content.

PlantUML (5)¶

Dashboard¶

URL: http://localhost:3030

Features:

• Real-time violation feed
• Compliance score gauge (0-10)
• 7-day trend chart
• Project selector
• Constraint toggles

API Endpoints (Port 3031)¶

Configuration¶

Single canonical source of truth¶

The constraint monitor used to load configs from multiple paths with silent fallbacks:

• The host hooks loaded ${CODING_REPO}/.constraint-monitor.yaml
• The container dashboard loaded integrations/mcp-constraint-monitor/constraints.yaml

These two files drifted — the same no-console-log rule was severity=error on the host and severity=warning in the dashboard. The dashboard reported 20 constraints; the running hook enforced 30. /Users/Q284340/Agentic/coding/.constraint-monitor.yaml is now the only canonical config. It is bind-mounted into the container at /coding/.constraint-monitor.yaml, and findProjectConfig() throws when the file is missing instead of falling back to a different one.

If you see Error: CODING_REPO=... but ... does not exist, fix the path or set CONSTRAINT_CONFIG_PATH explicitly — the system refuses to silently load from somewhere else.

Regex matches are authoritative¶

A separate SemanticValidator previously called an LLM (anthropic/claude-haiku, groq/llama-3.3, gemini-2.5-flash) to second-guess regex matches. When the routed provider was unreachable (e.g. corp network blocking Anthropic), the validator fell back to a different model whose judgment then suppressed valid matches — no-hardcoded-secrets had fired exactly once across the entire history. The semantic-validation path has been removed; if a constraint over-matches, tighten the regex or add exceptions/whitelist/file_pattern rather than asking an LLM to disagree with it.

Engine errors are surfaced, not swallowed¶

checkConstraintsDirectly used to catch any engine error and return zero violations ("fail open"). That hid bugs like the config split-brain. It now re-throws so the wrapper hook prints the error to stderr where Claude can see it.

File: ${CODING_REPO}/.constraint-monitor.yaml

- id: no-hardcoded-secrets
  group: security
  pattern: 'API_KEY|SECRET|TOKEN pattern here'
  message: 'CRITICAL: Potential hardcoded secret detected'
  severity: critical
  enabled: true
  suggestion: Use environment variables instead

Enable/Disable¶

- id: no-console-log
  enabled: false  # Disable this constraint

Key Files¶

Status Line Integration¶

Format: [🔒{compliance}%] — with an optional 🟡{N} sub-segment when violations are non-zero.

Example: [🔒94%] shows 94% compliance; [🔒75%🟡4] shows 75% with 4 active violations.
