LLM Architecture¶

What this layer is¶

A single shared library that every LLM caller in the project goes through, replacing three separate abstractions that each handled providers differently. It owns provider registration, caching, circuit-breaking and metrics.

It answers how a provider is talked to. Which provider a given piece of work goes to is a separate question, answered by LLM Routing.

Subscriptions first, APIs as fallback¶

Work is served from flat-rate subscription accounts wherever possible, and only falls through to metered API keys when those cannot serve it — on quota exhaustion, or when a capability is missing.

Three modes¶

Resilience defaults¶

A circuit breaker opens after 5 consecutive failures and resets after 60 seconds; an LRU cache holds 1,000 entries for an hour. Both are shared by every caller, so one service's retries do not become every service's outage.

The components¶

A facade is the single entry point for every LLM operation — it selects a provider, applies routing, and wires in the shared infrastructure. A registry holds the providers and validates their configuration. An infrastructure layer supplies the circuit breaker, the LRU cache and the metrics that the token-usage dashboard reads.

Three consumers sit on top: the semantic-analysis workflows, the inference engine, and the validator — all of which previously carried their own provider handling.

Subscription and metered accounts¶

The distinction that matters is not which company makes the model but which account gets billed. Subscription accounts are flat-rate: work served there costs nothing marginal. Metered API keys cost per token. The layer prefers the former and treats the latter as fallback, which is why quota tracking exists at all.

Beyond those, local runners and a mock provider round out the set — the mock being what makes a workflow single-steppable without spending anything.

Quota, backoff and falling through¶

Subscription quota is tracked optimistically: the layer assumes capacity until a provider says otherwise, rather than pre-counting. When a provider does refuse, exponential backoff keeps the system from hammering an exhausted account, and the call falls through to the next candidate.

The failure worth understanding is what happens when the only provider with a needed capability is exhausted — every chain that requires that capability collapses at once. The answer is to keep more than one capable provider configured, not to relax the capability check, because a provider that silently drops a capability returns confident nonsense.

Modes¶

Mock mode makes no network calls and is what the debug variant of the knowledge workflow uses. Local mode routes to a local runner. Public mode is the default and uses cloud providers.

Injection points¶

Three interfaces let you substitute behaviour without touching the layer: a mock service, a budget tracker, and a sensitivity classifier. They exist so that cost policy and data-handling policy can be project decisions rather than library ones.

What gets logged¶

Every call records its provider, model, calling process, token counts and latency. The process field is what makes per-service attribution possible on the Token Usage dashboard; a call without one is attributed to unknown.

Where to look next¶

• LLM Routing — which provider and model a given job resolves to
• Token Usage — what it all consumed
• LLM Providers — adding or troubleshooting a provider

Overview¶

The @rapid/llm-proxy unified LLM layer consolidates three previously separate LLM abstractions into a single, comprehensive library that provides intelligent routing, resilience, and cost optimization across its provider implementations (12 concrete ones under src/providers/), including subscription-based providers that eliminate per-token API costs. It is maintained as a standalone package shared with OKB and other projects.

Why it was created: - Before: 3 separate LLM abstractions (Semantic Analysis, Unified Inference Engine, Semantic Validator) - Problem: Code duplication, inconsistent provider handling, no shared caching or resilience - After: Single unified layer (@rapid/llm-proxy) with shared infrastructure, tier-based routing, circuit breaker, and LRU cache

Key Features: - Parallelized copilot-first routing (library path) — Copilot scales well with parallelism (0.77s effective per call at 10 concurrent). The runtime bridge does not order providers globally: its defaults.background is claude-code-max and each route names its own provider - Zero-cost routing via GitHub Copilot and Claude Code subscriptions - Automatic fallback to paid APIs on quota exhaustion - Batch-optimized — agents already use Promise.all with concurrency 5-20, copilot as primary unlocks peak throughput - Optimistic quota tracking with exponential backoff

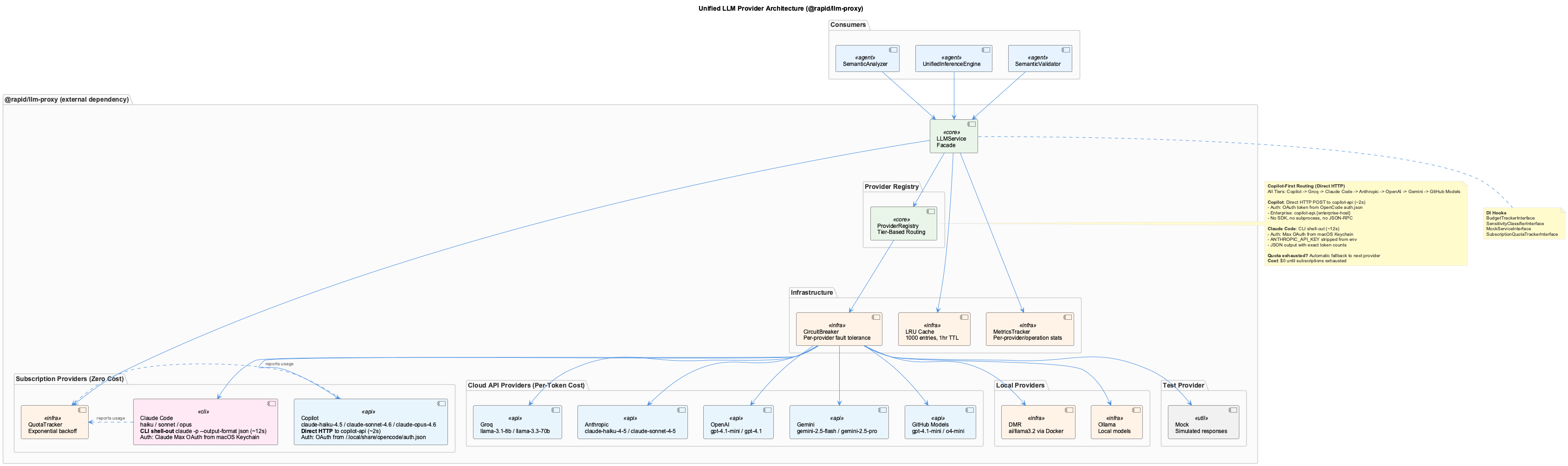

Architecture Components¶

Core Components¶

1. LLMService (Facade)
2. Single entry point for all LLM operations
3. Handles tier-based routing
4. Manages provider selection and fallback

5. Integrates with infrastructure (cache, circuit breaker, metrics)

6. ProviderRegistry

7. Central registry for all LLM providers
8. Dynamic provider registration and lookup

9. Configuration validation

10. Infrastructure Layer

11. Circuit Breaker: Prevents cascading failures (threshold: 5 failures, reset: 60s)
12. LRU Cache: 1000 entries, 1-hour TTL
13. Metrics: Request tracking, cost monitoring, performance stats

Consumers¶

The unified layer serves three primary consumers:

1. SemanticAnalyzer (integrations/semantic-analysis/)
2. Batch analysis workflows
3. Git history analysis

4. Ontology classification

5. UnifiedInferenceEngine (shared utility)

6. General-purpose LLM inference

7. Multi-provider support

8. SemanticValidator (integrations/constraint-monitor/)

9. Constraint violation detection
10. Semantic code analysis

Supported Providers¶

The library ships 12 concrete provider implementations under src/providers/ with tier-based model selection:

Subscription Providers (Zero Cost)¶

1. Claude Code (Max subscription)¶

Path: Direct OAuth → CLI fallback (since 2026-05-19) Cost: $0 per token (uses existing Claude Max subscription)

Two-tier dispatch (proxy-bridge/server.mjs):

1. Direct OAuth (fast path) — completeClaudeCodeDirect() POSTs to api.anthropic.com/v1/messages with Authorization: Bearer <oauth> read from the macOS keychain. Real token counts (9 in / 4 out for say OK). Bearer + anthropic-version: 2023-06-01 + anthropic-beta: oauth-2025-04-20.
2. CLI fallback (slower) — on 401/403/429, falls back to completeClaudeCodeViaCLI() which spawns claude -p --output-format json --tools '' .... Uses the same Max subscription but a different Anthropic rate-limit bucket (sonnet/opus succeed via CLI when bearer 429s). Costs ~16-22K cache_creation tokens per call because the CLI auto-injects its full system prompt + tool definitions.

Requirements: - The claude CLI on the host (only used for fallback path): which claude && claude --version - Authenticated: env -u ANTHROPIC_API_KEY claude auth status returns loggedIn: true, authMethod: "claude.ai", subscriptionType: "max" - Keychain entry Claude Code-credentials populated by the CLI

Token cache (proxy-side, in-memory): - Read on first claude-code call; cached until expiresAt - now < 60s - On 401: cache cleared, CLI fallback fires, the CLI rotates the keychain blob; next direct call reads the fresh token

Escape hatches: - LLM_PROXY_DISABLE_CLAUDE_DIRECT=1 — force every claude-code call through the legacy CLI path

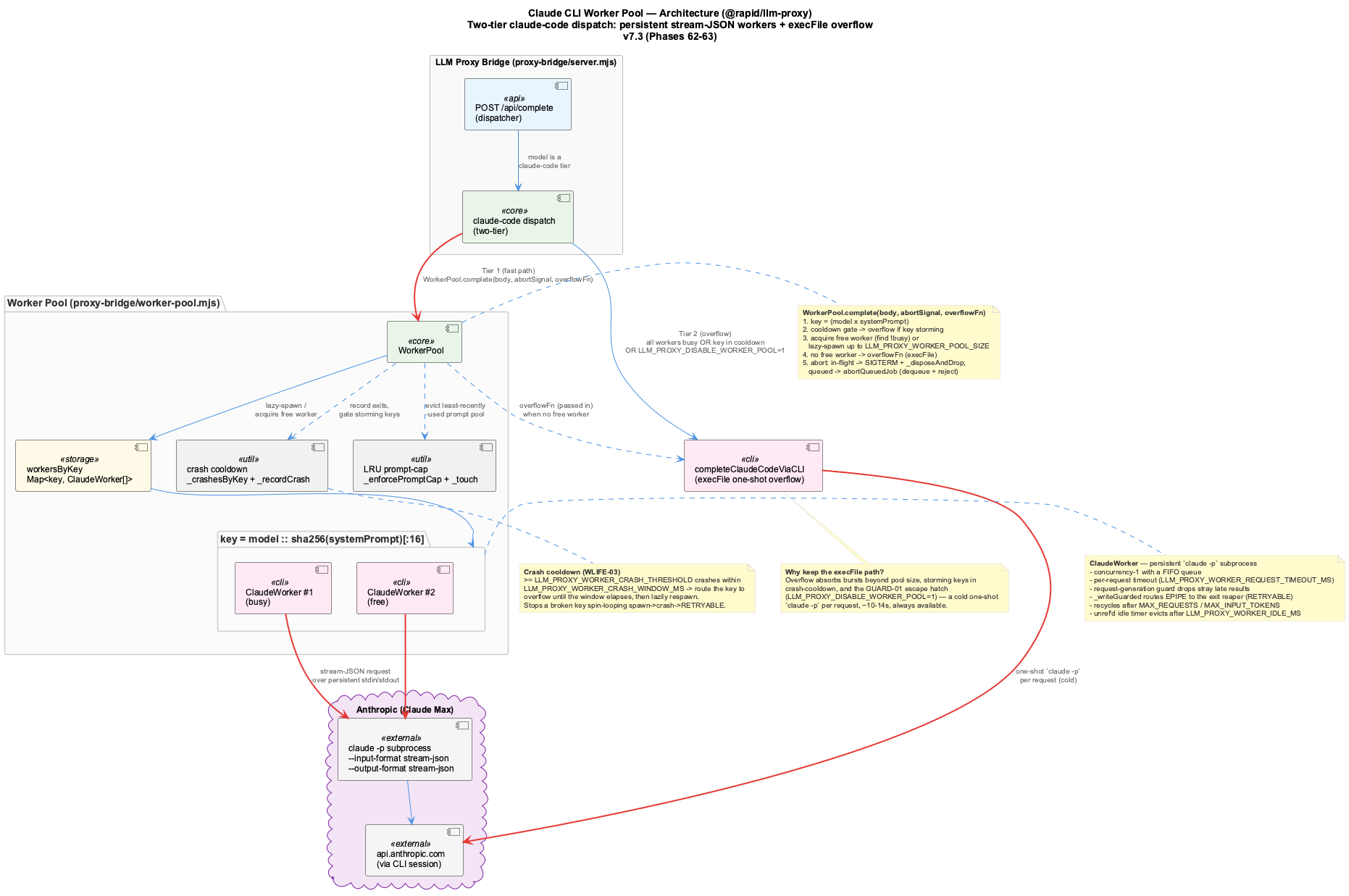

Claude CLI Worker Pool (v7.3)¶

The v7.3 milestone restructures the CLI fallback described above into a two-tier dispatch backed by a warm worker pool (proxy-bridge/worker-pool.mjs, wired into the claude-code dispatcher in proxy-bridge/server.mjs). The legacy fallback paid the CLI's full system-prompt warm-up (~16-22K cache_creation tokens, ~10-14s) on every call because each call cold-spawned a fresh claude -p. The pool keeps that subprocess warm and reuses it, cutting steady-state fallback latency to ~2-3s. This affects claude-code only — copilot stays a direct HTTP POST and is never pooled.

WorkerPool / ClaudeWorker, keyed by (model × systemPrompt):

• WorkerPool owns a map of per-key worker pools, keyed by model :: sha256(systemPrompt)[:16]. Keying on both the model and the system prompt means callers sharing an identical (model, prompt) pairing reuse the same warm subprocess, while distinct prompts get isolated pools. An LRU prompt-cap bounds the number of distinct (model × prompt) pools held in memory.
• ClaudeWorker wraps one persistent claude -p --input-format stream-json --output-format stream-json subprocess running concurrency-1 behind a FIFO queue. It owns that worker's lifecycle: lazy spawn, idle eviction, crash tracking, request/token-based recycling, and cancellation (see LLM Proxy Bridge → Claude CLI Worker Pool for the WLIFE-01..04 lifecycle guarantees).

How it slots under the claude-code dispatcher: the dispatcher's direct-OAuth fast path is unchanged. Only when it falls back to the CLI does the pool engage, as Tier 1: WorkerPool.complete(body, abortSignal, overflowFn). If every worker for a key is busy, the key is in crash-cooldown, or LLM_PROXY_DISABLE_WORKER_POOL=1 is set, the call transparently degrades to Tier 2 overflow — completeClaudeCodeViaCLI, the original cold one-shot execFile of claude -p. The pool is therefore a latency optimisation layered inside the existing CLI-fallback leg of the two-tier claude-code dispatch, not a new provider.

2. GitHub Copilot (Primary Provider)¶

Method: Direct HTTP POST to Copilot API Cost: $0 per token (uses existing GitHub Copilot subscription)

Why Copilot is primary: Performance benchmarks revealed that Copilot API calls scale beautifully with parallelism — 0.77s effective per call at 10 concurrent (vs 5s sequential). Since batch agents already parallelize LLM calls via Promise.all (concurrency 5-20), copilot as the first-choice provider unlocks peak throughput.

Authentication: - Reads OAuth token from ~/.local/share/opencode/auth.json - Direct HTTP POST to OpenAI-compatible Copilot API endpoint - No CLI tools required

Features: - Shared quota tracking system - Automatic provider rotation on exhaustion - Zero API costs - From containers: Falls back to LLM Proxy Bridge on host.docker.internal:12435

LLM Proxy Bridge (Docker Bridge)¶

When running inside Docker, host-side tools are unavailable. The LLM Proxy Bridge runs on the host (port 12435) and forwards requests. For Copilot, the proxy bridge reads OAuth tokens from ~/.local/share/opencode/auth.json and makes direct HTTP POST calls to the Copilot API. For Claude Code, it spawns the claude CLI. Each provider automatically detects and uses the proxy during initialization when the LLM_CLI_PROXY_URL environment variable is set.

API Providers (Per-Token Cost)¶

3. Groq¶

API Key: GROQ_API_KEY

4. Anthropic¶

API Key: ANTHROPIC_API_KEY

5. OpenAI¶

API Key: OPENAI_API_KEY

6. Google Gemini¶

API Key: GOOGLE_API_KEY

7. GitHub Models¶

API Key: GITHUB_TOKEN Base URL: https://models.github.ai/inference/v1

8. DMR (Docker Model Runner)¶

Local provider - no API key required Base URL: http://localhost:12434/engines/v1

• Default Model: ai/llama3.2
• Specialized Models:
• ai/llama3.2:3B-Q4_K_M (lightweight tasks)
• ai/qwen2.5-coder:7B-Q4_K_M (code analysis)

9. Ollama¶

Local provider - no API key required

• Supports any locally installed Ollama models
• Used as final fallback for local-only mode

10. Mock Provider¶

Test/debug mode - no API key required

• Returns simulated responses
• Used for testing and development

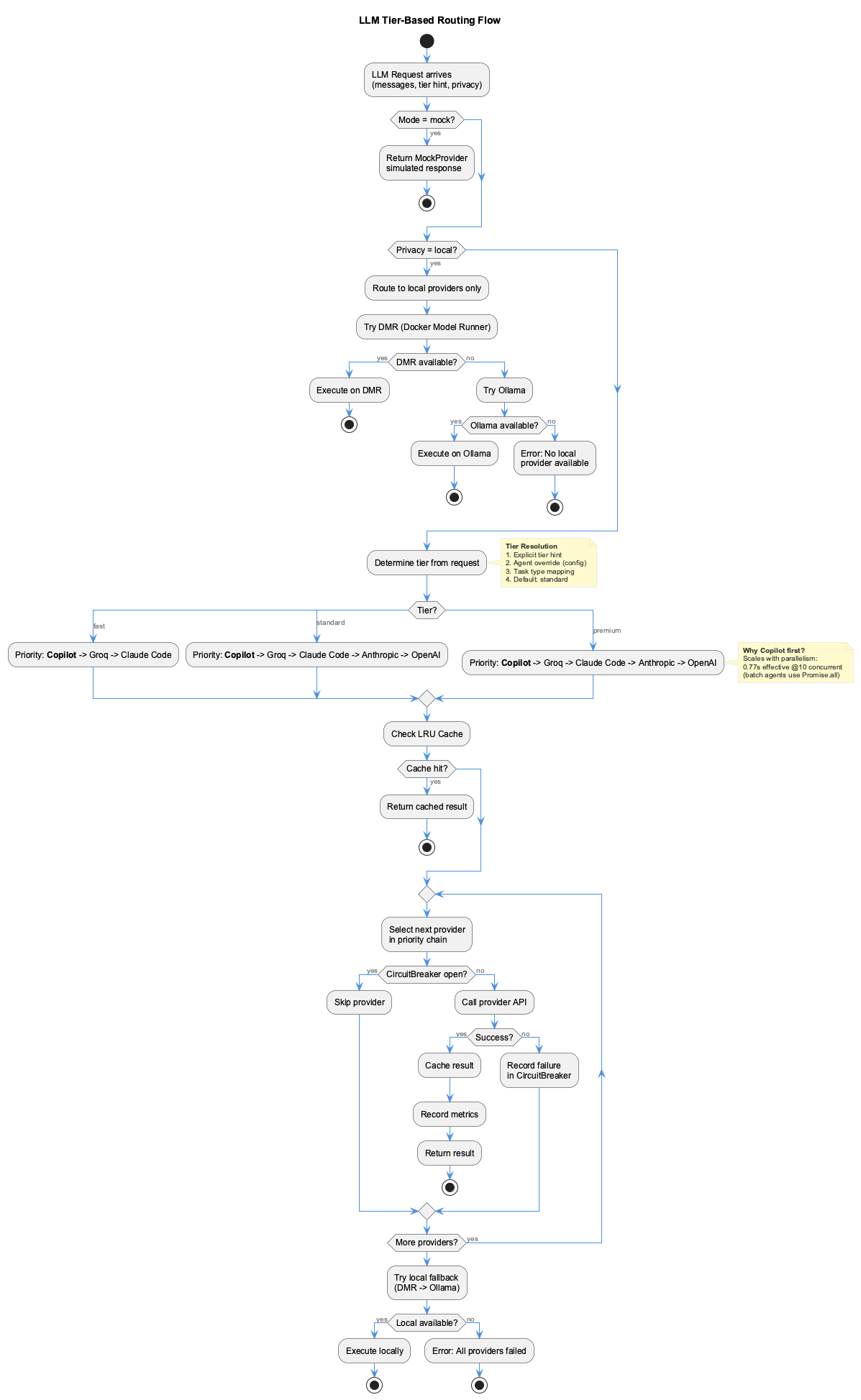

Tier-Based Routing¶

The library routes requests to providers based on task complexity and cost optimization:

Tier Definitions¶

Fast Tier (zero cost → low cost, high speed) - Simple extraction and parsing - Basic classification - File pattern matching - Provider Priority: Copilot → Groq → Claude Code → Anthropic → OpenAI → Gemini → GitHub Models

Standard Tier (zero cost → balanced cost/quality) - Semantic code analysis - Git history analysis - Documentation linking - Ontology classification - Provider Priority: Copilot → Groq → Claude Code → Anthropic → OpenAI → Gemini → GitHub Models

Premium Tier (zero cost → highest quality) - Insight generation - Pattern recognition - Quality assurance review - Deep code analysis - Provider Priority: Copilot → Groq → Claude Code → Anthropic → OpenAI → Gemini → GitHub Models

Task-to-Tier Mapping¶

Tasks are automatically mapped to tiers based on their complexity:

# Fast tier examples
- git_file_extraction
- commit_message_parsing
- basic_classification

# Standard tier examples
- git_history_analysis
- semantic_code_analysis
- ontology_classification

# Premium tier examples
- insight_generation
- observation_generation
- pattern_recognition

Fallback Chain¶

1. Primary: Try providers in priority order (copilot first — parallelism-optimized)
2. Subscription check: Verify quota availability (copilot, claude-code)
3. Circuit breaker check: Skip failed providers temporarily
4. Cache check: Return cached results if available
5. API fallback: Use paid API providers (Groq, Anthropic, OpenAI, Gemini, GitHub Models)
6. Local fallback: DMR → Ollama (always available, no API costs)

Parallelism: Batch agents call LLMService via Promise.all (concurrency 5-20). Copilot scales from 5s sequential to 0.77s effective per call at 10 concurrent, making it ideal as the primary provider.

Subscription Quota Management¶

The system tracks subscription usage and automatically handles quota exhaustion:

Quota Tracking¶

Storage: .data/llm-subscription-usage.json

Tracked Metrics: - Completions per hour (rolling window) - Estimated token usage - Quota exhaustion state - Consecutive failure count

Soft Limits: - Claude Code: 100 completions/hour - Copilot: 100 completions/hour

Exponential Backoff¶

When quota is exhausted, the system applies exponential backoff:

1. First exhaustion: Retry after 5 minutes
2. Second exhaustion: Retry after 15 minutes
3. Third+ exhaustion: Retry after 1 hour

Automatic recovery: On successful completion, reset failure counters

Automatic Fallback¶

Request → Check Copilot quota (primary — parallelism-optimized)
       ↓ (exhausted)
       → Use Groq (paid API, fast fallback)
       ↓ (circuit breaker open)
       → Check Claude Code quota
       ↓ (exhausted)
       → Use Anthropic (paid API)
       ↓ (all failed)
       → Use DMR (local)

Cost Impact: - If subscriptions available: $0 - If subscriptions exhausted: Standard API costs apply - Seamless transition - no user intervention needed

Data Persistence¶

Quota data is automatically: - Persisted to disk after each request - Pruned (keep last 24 hours only) - Loaded on service initialization

Reset quota tracking (for testing):

rm .data/llm-subscription-usage.json

Mode Routing¶

The system supports three routing modes:

1. Mock Mode¶

Environment: SEMANTIC_ANALYSIS_MODE=mock

• Uses Mock provider exclusively
• Returns simulated responses
• No API calls or costs
• Ideal for testing and development

2. Local Mode¶

Environment: SEMANTIC_ANALYSIS_MODE=local

• Uses DMR and Ollama only
• No external API calls
• Zero API costs
• Requires local model servers running

3. Public Mode (Default)¶

Environment: SEMANTIC_ANALYSIS_MODE=public or unset

• Uses all cloud providers (Groq, Anthropic, OpenAI, Gemini, GitHub)
• Falls back to DMR/Ollama if all cloud providers fail
• Optimizes for quality and availability

Dependency Injection Hooks¶

The system provides interfaces for extending functionality:

1. MockServiceInterface¶

interface MockServiceInterface {
  getMockResponse(task: string, tier: string): Promise<string>;
}

2. BudgetTrackerInterface¶

interface BudgetTrackerInterface {
  trackCost(provider: string, tokens: number, cost: number): void;
  getBudgetRemaining(): number;
  isOverBudget(): boolean;
}

3. SensitivityClassifierInterface¶

interface SensitivityClassifierInterface {
  classifyContent(content: string): 'public' | 'internal' | 'confidential';
  canUseProvider(provider: string, sensitivity: string): boolean;
}

Configuration¶

All LLM provider configuration is centralized in:

File: config/llm-providers.yaml

Key configuration sections:

providers:
  # Subscription providers (zero cost)
  claude-code:
    cliCommand: "claude"
    timeout: 60000
    models:
      fast: "sonnet"
      standard: "sonnet"
      premium: "opus"
    quotaTracking:
      enabled: true
      softLimitPerHour: 100

  copilot:
    cliCommand: "copilot-cli"
    timeout: 120000
    models:
      fast: "claude-haiku-4.5"        # Benchmarked: 0.77s @10 parallel
      standard: "claude-sonnet-4.5"
      premium: "claude-opus-5"
    quotaTracking:
      enabled: true
      softLimitPerHour: 100

  # API providers (per-token cost)
  groq:
    apiKeyEnvVar: GROQ_API_KEY
    fast: "llama-3.1-8b-instant"
    standard: "llama-3.3-70b-versatile"
    premium: "openai/gpt-oss-120b"

  anthropic:
    apiKeyEnvVar: ANTHROPIC_API_KEY
    fast: "claude-haiku-4-5"
    standard: "claude-sonnet-4-5"
    premium: "claude-opus-5"
  # ... more providers (openai, gemini, github-models)

# Copilot first — scales with parallelism (0.77s effective @10 concurrent)
# Batch agents use Promise.all, so copilot as primary unlocks peak throughput
provider_priority:
  fast: ["copilot", "groq", "claude-code", "anthropic", "openai", "gemini", "github-models"]
  standard: ["copilot", "groq", "claude-code", "anthropic", "openai", "gemini", "github-models"]
  premium: ["copilot", "groq", "claude-code", "anthropic", "openai", "gemini", "github-models"]

cache:
  maxSize: 1000
  ttlMs: 3600000  # 1 hour

circuit_breaker:
  threshold: 5
  resetTimeoutMs: 60000  # 1 minute

Environment Overrides¶

Force specific behavior via environment variables:

# Force all tasks to premium tier
export SEMANTIC_ANALYSIS_TIER=premium

# Force specific provider (skip routing)
export SEMANTIC_ANALYSIS_PROVIDER=anthropic

# Use budget mode (fast tier everywhere)
export SEMANTIC_ANALYSIS_COST_MODE=budget

# Use local-only mode
export SEMANTIC_ANALYSIS_MODE=local

Cost Management¶

Cost Limits¶

Per-workflow limits (configured in llm-providers.yaml): - Budget mode: $0.05 per run - Standard mode: $0.50 per run - Quality mode: $2.00 per run

Batch workflow limits: - Max tokens per batch: 500,000 - Max cost per batch: $1.00 USD - Total budget: $50.00 USD - Automatic fallback to local on quota exceeded

Cost Optimization Strategies¶

1. Copilot-first parallelized routing: Copilot scales with concurrency (0.77s @10 parallel), batch agents use Promise.all
2. Tier-based routing: Use cheapest provider that meets quality requirements
3. Caching: Avoid duplicate LLM calls (1-hour TTL)
4. Automatic fallback: Switch to paid APIs only when subscriptions exhausted
5. Local fallback: Switch to DMR/Ollama when budget exhausted
6. Circuit breaker: Stop calling failed providers quickly

Cost Savings Example¶

Typical UKB batch analysis run: - 50 fast tier calls (extraction, parsing) - 100 standard tier calls (semantic analysis) - 20 premium tier calls (insight generation)

Before subscriptions (all API): - Fast: 50 × $0.001 = $0.05 - Standard: 100 × $0.01 = $1.00 - Premium: 20 × $0.05 = $1.00 - Total: ~$2.05 per run

After subscriptions (until quota exhausted): - Fast: $0 (Copilot/claude-haiku-4.5, parallelized) - Standard: $0 (Copilot/claude-sonnet-4.5) - Premium: $0 (Copilot/claude-opus-5) - Total: $0.00 per run ✅ - Bonus: ~3x faster via parallelized copilot calls

Savings: When the subscription quota covers the request, the per-token cost is $0 — material per-call savings vs. the paid-API fallback path.

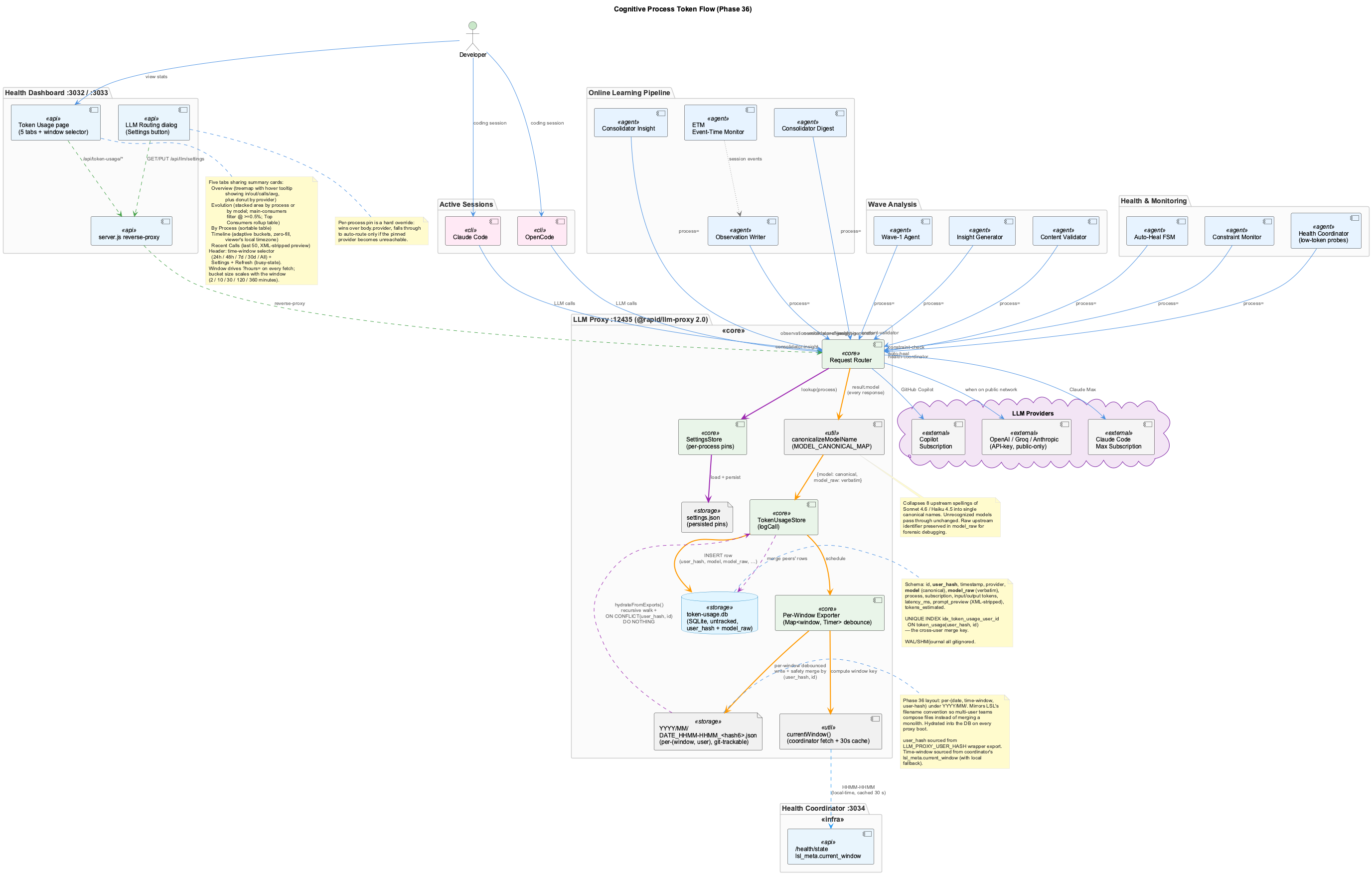

Token Usage Monitoring¶

All LLM calls pass through the LLM Proxy Bridge (:12435), which logs every request to a persistent SQLite database for usage analytics and cost attribution.

How It Works¶

Every cognitive process that calls the LLM proxy includes a process identifier in the request body. The proxy logs the call with provider, model, token counts, latency, and subscription type to .observations/token-usage.db.

Logged Fields¶

Cognitive Process Identifiers¶

Dashboard¶

The Token Usage page on the Health Dashboard (:3032/token-usage) provides:

• Token distribution by process — treemap showing biggest consumers
• Provider breakdown — donut chart of provider usage
• Timeline — hourly token consumption area chart
• Recent calls — sortable table with process, model, tokens, latency

See Token Usage Dashboard for full documentation.

API Endpoints¶

The proxy exposes query endpoints for programmatic access:

GET /api/token-usage/summary?hours=24    # Aggregated stats
GET /api/token-usage/recent?limit=50     # Recent calls

Storage¶

• Database: .observations/token-usage.db (SQLite)
• Retention: All calls logged indefinitely
• Size: ~1KB per logged call

In-Memory Metrics¶

The LLM layer also tracks in-memory metrics per session:

• Request metrics: Total calls per provider, success/failure rates
• Performance: Latency per provider, throughput
• Cost: Token usage, estimated costs per provider
• Cache: Hit/miss ratio, cache size

Metrics are exposed via the LLMService.getMetrics() method.

Integration Example¶

import { LLMService, loadProviderConfig } from '@rapid/llm-proxy';
import type { LLMCompletionRequest } from '@rapid/llm-proxy';

const llmService = LLMService.getInstance();

const request: LLMCompletionRequest = {
  messages: [
    { role: 'user', content: 'Analyze this code for bugs...' }
  ],
  tier: 'standard',  // or 'fast' / 'premium'
  task: 'semantic_code_analysis',
  temperature: 0.7,
  maxTokens: 4096
};

const result = await llmService.complete(request);

Logger.log('info', result.content);           // LLM response
Logger.log('info', `Provider: ${result.provider}`);          // Which provider was used
Logger.log('info', `Model: ${result.model}`);             // Specific model
Logger.log('info', `Tokens: ${result.usage.totalTokens}`); // Token usage
Logger.log('info', `Cached: ${result.cached}`);            // Was it from cache?

Related Documentation¶

• Token Usage Dashboard - Detailed token usage monitoring documentation
• LLM Provider Guide - User guide for working with providers
• Semantic Analysis Integration - SA consumer usage
• Getting Started - Installation and API key setup

Configuration Files: - config/llm-providers.yaml - Full provider configuration schema - docs/provider-configuration.md - Detailed API key setup guide
