Data Flow¶

System data flow patterns and integration points.

Overall System Flow¶

flowchart TB
    subgraph "User Layer"
        U[User] --> CC[Claude Code]
    end

    subgraph "Tool Layer"
        CC -->|PreToolUse| CM[Constraint Monitor]
        CM -->|Block/Allow| CC
        CC -->|Tool Call| MCP[MCP Servers]
        CC -->|PostToolUse| LSL[LSL Monitor]
    end

    subgraph "Analysis Layer"
        MCP --> SA[Semantic Analysis]
        MCP --> CGR[Code Graph RAG]
    end

    subgraph "Storage Layer"
        LSL --> FS[.specstory/history/]
        SA --> KMC[("@fwornle/km-core<br/>GraphKMStore<br/>shared by A/B/C")]
        CGR --> MG[Memgraph]
        SA --> QD[Qdrant]
    end

    subgraph "Visualization"
        KMC --> VKB[VKB Server]
        FS --> VKB
    end

LSL Data Flow¶

Exchange Processing:

1. Capture: Transcript monitor detects new exchange
2. Classify: 5-layer classifier determines routing
3. Redact: Security patterns sanitized
4. Route: Content written to LOCAL or CODING history
5. Log: Classification decision logged

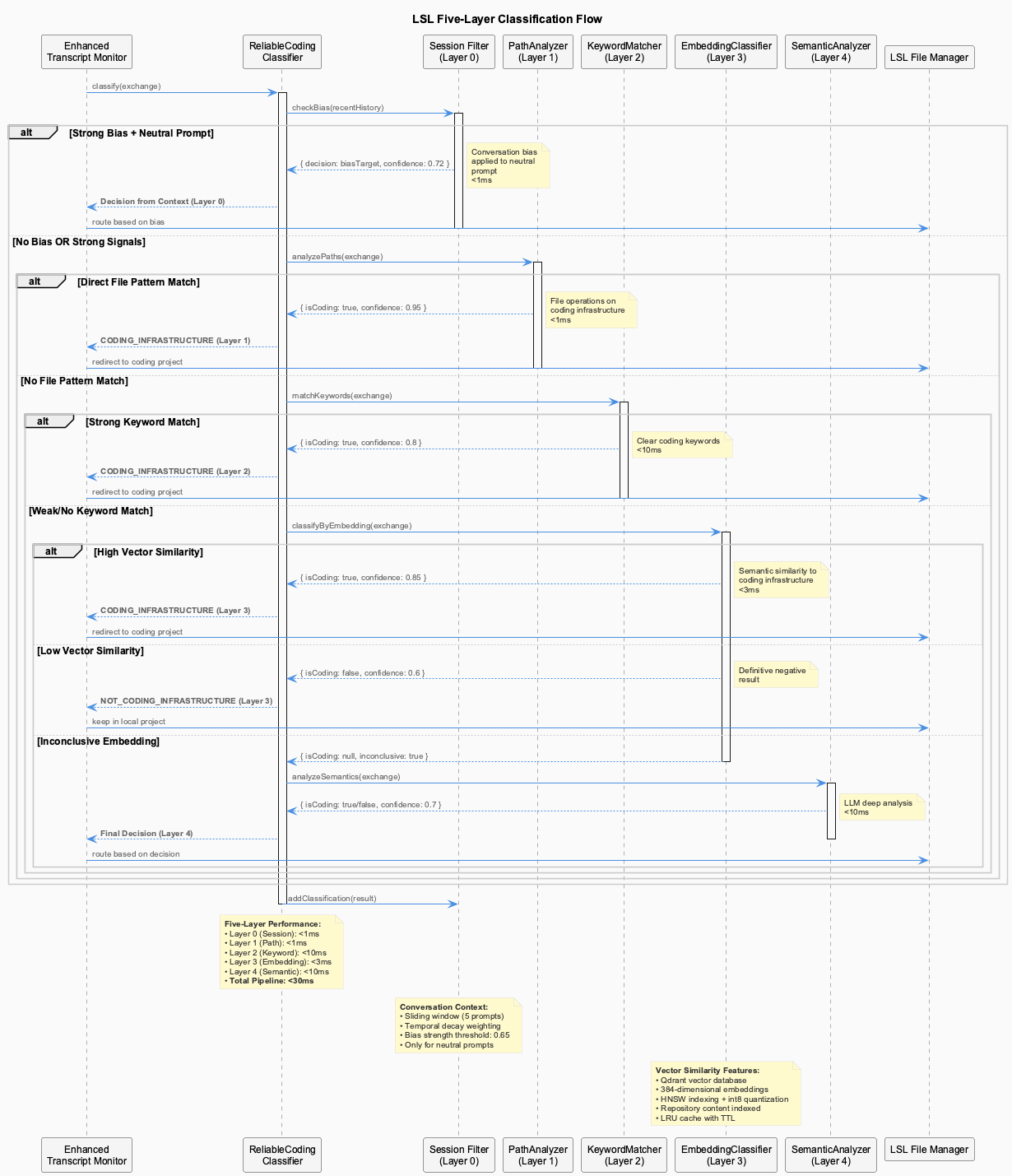

Classification Decision Tree:

flowchart TD
    E[Exchange] --> L0{Layer 0: Session Filter}
    L0 -->|Confident| D[Decision]
    L0 -->|Uncertain| L1{Layer 1: PathAnalyzer}
    L1 -->|Confident| D
    L1 -->|Uncertain| L2{Layer 2: KeywordMatcher}
    L2 -->|Confident| D
    L2 -->|Uncertain| L3{Layer 3: EmbeddingClassifier}
    L3 -->|Confident| D
    L3 -->|Uncertain| L4{Layer 4: SemanticAnalyzer}
    L4 --> D
    D -->|LOCAL| LP[Project History]
    D -->|CODING| CP[Coding History]

Knowledge Flow¶

All three knowledge streams persist through the same @fwornle/km-core library — identical GraphKMStore, OntologyRegistry, LayeredDeduplicator (Jaccard → Cosine → LLM), and v7-strict ID minting.

System A — Online learning (observations/digests/insights):

1. Capture: ETM detects a completed prompt set; ObservationApiClient fires HTTP to the host obs-api (port 12436)
2. Summarize: ObservationWriter calls the LLM proxy (Intent/Approach/Artifacts/Result)
3. Dedup: content-hash + semantic keyword similarity (4h sliding window)
4. Store: km-core GraphKMStore (.data/knowledge-graph/) — legacy SQLite (.observations/observations.db) was archived 2026-06-05 (Phase 44 Plan 18) and is no longer the runtime store
5. REST: km-core's createKMRouter() is mounted at /api/km/ for entities / observations / digests / insights queries
6. Consolidate: digests (daily) + insights (≥5 unsynthesized digests) via in-process LLM passes
7. Export: git-tracked JSON to .data/observation-export/

System B — UKB / semantic-analysis Flow:

1. Trigger: MCP command (ukb, ukb full) or workflow execution
2. Extract: 14 agents — git analysis, vibe history, semantic, web search, etc.
3. Classify: 4-layer ontology pipeline via km-core's OntologyRegistry
4. Persist: persistWithKmCore() writes to canonical .data/knowledge-graph-migrated/
5. Merge: km-core mergeEntities() + LayeredDeduplicator
6. Export: .data/knowledge-export/{team}.json (git-tracked, 5s debounce)

System C — OKB / OKM Flow (cross-repo, _work/rapid-automations/.../operational-knowledge-management):

1. Ingest: extractor reads markdown, Confluence, CodeBeamer, RCA docs
2. Dedup: km-core LayeredDeduplicator
3. Resolve: km-core resolveEntities against @fwornle/km-core/ontology
4. Store: canonical .data/leveldb-kmcore/ GraphKMStore
5. Serve: OKB API (port 8090) + VOKB viewer (port 3002)

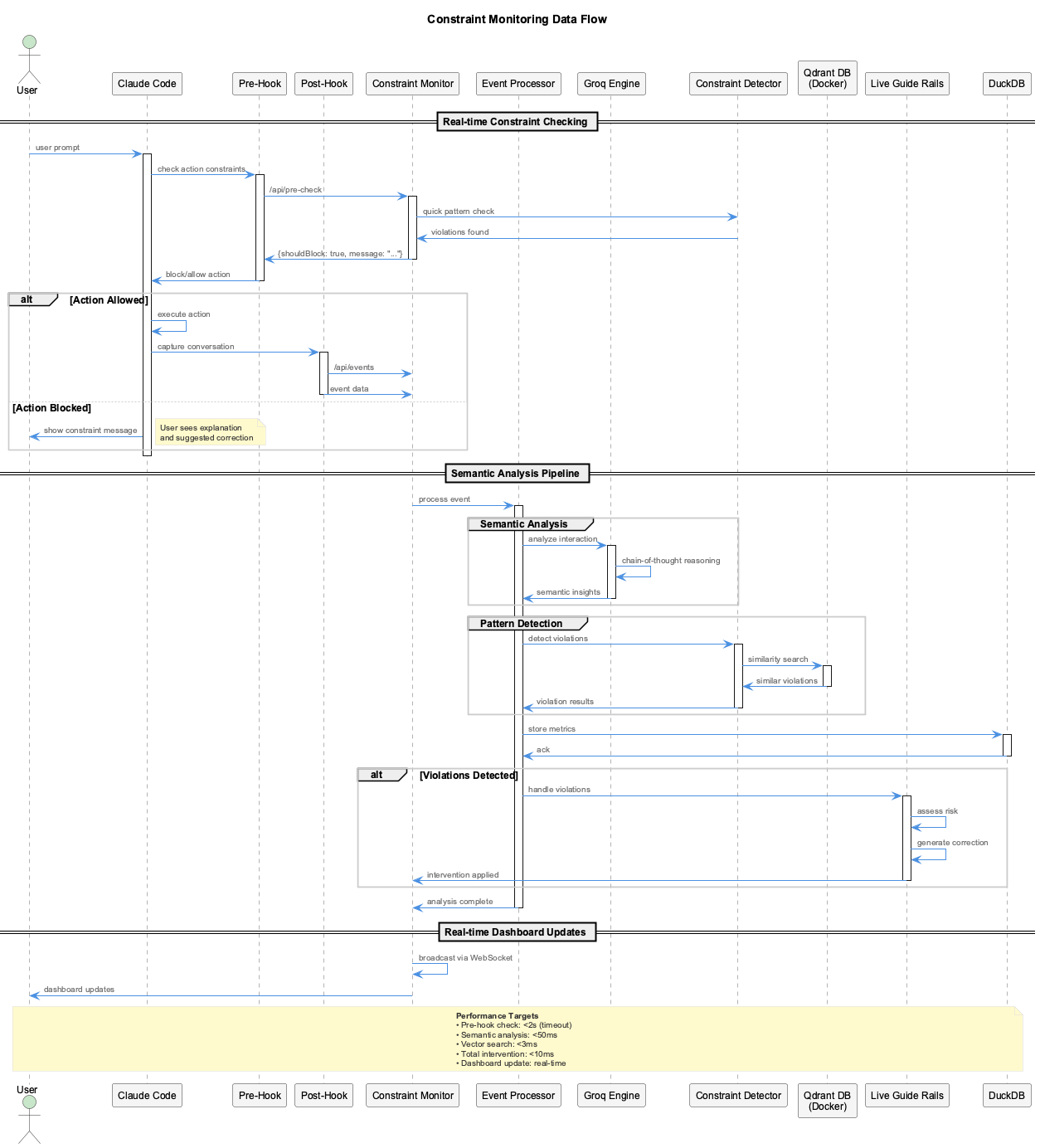

Constraint Flow¶

PreToolUse Hook Flow:

1. Intercept: Hook fires before tool execution
2. Check: ConstraintEnforcer evaluates parameters
3. Match: PatternMatcher runs regex against 20 constraints
4. Score: ComplianceCalculator updates score
5. Decide: Block (CRITICAL/ERROR) or Allow (WARNING/INFO)
6. Log: Violation logged to dashboard API

MCP Server Communication¶

Claude CLI <--stdio--> Proxy <--HTTP/SSE--> Container Server

The host-side Claude CLI talks to lightweight stdio proxies, which forward to the containerized MCP servers over HTTP/SSE.

Storage Locations¶

Cross-System Integration¶

LSL + Knowledge¶

LSL data feeds both Observational Memory (in-flight) and the UKB (manual / batch):

LSL Exchange  --> ETM observation tap --> obs-api (port 12436)
              --> ObservationWriter (km-core GraphKMStore + SQLite)
LSL History   --> UKB git analysis    --> km-core GraphKMStore (canonical)

OKB ingestion does not consume LSL — it pulls from documentation sources directly. All three streams converge on @fwornle/km-core's GraphKMStore.

Constraints + LSL¶

PostToolUse hooks log all tool interactions:

Tool Execution --> PostToolUse Hook --> LSL Logger --> .specstory/history/

Health + All Systems¶

Health monitoring spans all components:

All Services --> Health Files --> Coordinator --> Dashboard
