Session 8: Advanced Agent Workflows - Enterprise Orchestration Patterns¶
Learning Outcomes¶
By the end of this session, you will be able to: - Design complex multi-agent workflows using LangGraph and enterprise orchestration patterns - Implement ReAct patterns, parallel processing, and conditional routing for production systems - Create fault-tolerant workflows with comprehensive error handling and adaptive optimization - Build workflow monitoring and observability systems meeting enterprise SLA requirements - Deploy scalable orchestration platforms addressing the 85% failure rate in agentic AI
Chapter Overview¶
What You'll Learn: Production-Grade Agentic Workflows¶
In this session, we'll implement the advanced agent workflow patterns that power today's leading AI teams. Moving beyond simple sequential processing, we'll explore the sophisticated orchestration patterns that enable enterprise-grade agentic AI systems to handle complex, multi-step business processes with reliability and scale.
Why This Matters: The 2024-2025 Agentic Workflow Revolution¶
Based on industry research, advanced agent workflows represent the future of enterprise AI:
- Enterprise Adoption: According to Gartner, 33% of enterprise software will depend on agentic AI by 2028
- Failure Rate Challenge: Current 85% failure rate in agentic AI requires sophisticated orchestration patterns
- Leading AI Teams: Agentic workflows are now the cornerstone of successful AI implementations
- Performance Impact: Parallel processing drastically reduces time to resolution and improves consensus accuracy
- Framework Evolution: LangGraph's graph-based architecture and AutoGen's collaborative systems enable production deployment
How Advanced Workflows Stand Out: Enterprise Orchestration Patterns¶
Modern agentic workflow patterns address real enterprise needs through sophisticated coordination: - Sequential Orchestration: Step-by-step decomposition with context preservation for complex customer support - Parallel Processing: Concurrent execution for code review, candidate evaluation, and A/B testing - Orchestrator-Worker Pattern: Central coordination with specialized workers powering RAG and multi-modal research - Conditional Routing: Dynamic task assignment based on input classification for scalable expertise - ReAct Pattern: Real-time problem-solving with reasoning-action loops for adaptable agents
Where You'll Apply This: Enterprise Workflow Use Cases¶
Advanced agent workflows excel in sophisticated business scenarios: - Multi-Domain Customer Support: Conditional routing with specialized expertise and real-time triage - Code Review and Development: Parallel processing for comprehensive analysis and consensus building - Financial Analysis: Orchestrator-worker patterns for complex research and risk assessment - Content Generation: Sequential workflows with context preservation across multi-turn processes - Quality Assurance: Maker-checker patterns where agents debate and validate outputs together

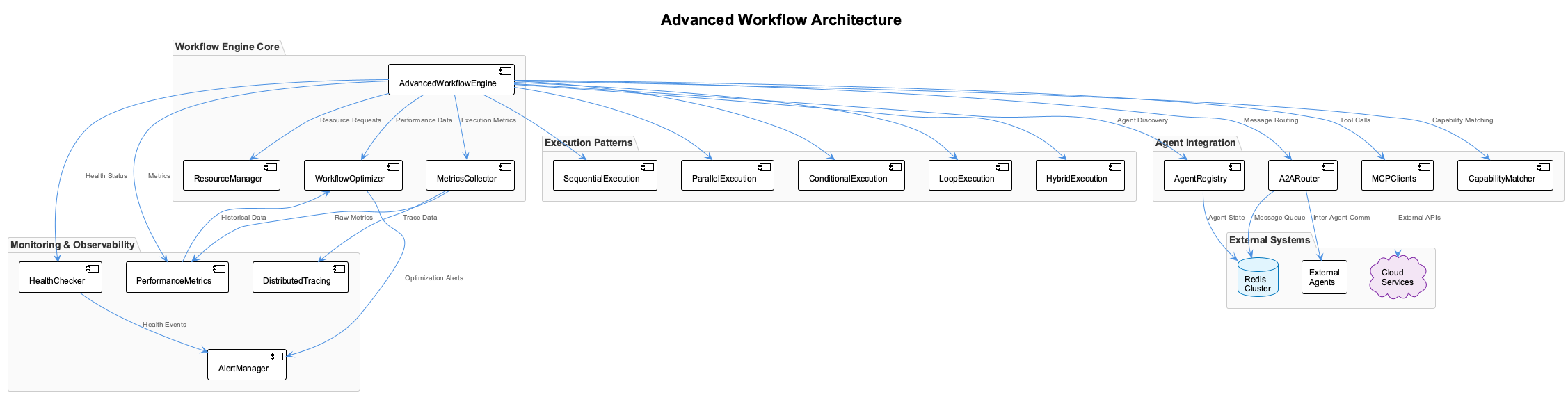

Figure 1: Enterprise agentic workflow architecture showing parallel processing, conditional routing, orchestrator-worker patterns, and ReAct loops working together to create resilient, scalable AI systems that overcome the 85% failure rate
Learning Path Options¶
Observer Path (35 minutes): Understand advanced workflow patterns and orchestration concepts - Focus: Quick insights into ReAct patterns, parallel processing, and enterprise coordination - Best for: Getting oriented with production agentic workflow architecture
🙋♂️ Participant Path (65 minutes): Implement working advanced workflows with LangGraph
- Focus: Hands-on orchestrator-worker patterns, conditional logic, and fault tolerance - Best for: Building practical enterprise workflow systems
🛠️ Implementer Path (95 minutes): Advanced orchestration and production deployment - Focus: Multi-agent coordination, adaptive optimization, and enterprise monitoring - Best for: Production workflow architecture and scalable orchestration
Part 1: Enterprise Workflow Architecture (Observer: 12 min | Participant: 28 min)¶
The Production Agentic Workflow Challenge¶
According to Gartner research, while 33% of enterprise software will depend on agentic AI by 2028, current systems face an 85% failure rate due to inadequate orchestration patterns. Advanced workflows solve this through sophisticated coordination mechanisms.
Enterprise Workflow Requirements: 1. Fault Tolerance: Graceful handling of agent failures and external system unavailability 2. Scalability: Dynamic resource allocation based on workload demands 3. Observability: Complete visibility into workflow execution and performance metrics 4. Adaptability: Real-time optimization based on performance data and changing requirements 5. Compliance: Audit trails and approval processes for regulated industries
OBSERVER PATH: Production Workflow Patterns (2024-2025)¶
Core Enterprise Orchestration Patterns:
- Sequential Orchestration: Tasks decomposed into step-by-step subgoals where each agent's output becomes the next step's input, ideal for complex customer support and context preservation
- Parallel Processing: Large tasks split into independent sub-tasks for concurrent execution, drastically reducing time to resolution for code review and consensus building
- Orchestrator-Worker Pattern: Central orchestrator breaks down tasks and assigns work to specialized workers, powering RAG systems and multi-modal research
- Conditional Routing: Input classification determines which specialized agent handles each workflow part, enabling scalable multi-domain expertise
- ReAct Pattern: Real-time problem-solving where agents alternate between reasoning and action, adapting to ambiguity and evolving requirements
Framework Ecosystem Leadership: - LangGraph: Graph-based architecture with state machines for conditional logic and complex processes - AutoGen: Role-based collaborative systems mirroring actual team structures - Azure AI Agent Factory: Enterprise patterns for production deployment and monitoring
PARTICIPANT PATH: Implementing Enterprise Workflow Engine¶
Step 1: LangGraph-Compatible Workflow Foundation
Implement the enterprise workflow engine using production-grade patterns:
# workflows/advanced_engine.py - Enterprise Agentic Workflow Engine
import asyncio
import json
from typing import Dict, List, Any, Optional, Callable, Union, TypeVar
from dataclasses import dataclass, field
from datetime import datetime, timedelta, timezone
from enum import Enum
import uuid
import logging
from contextlib import asynccontextmanager
# Enterprise workflow dependencies
from langgraph import StateGraph, START, END
from langgraph.prebuilt import tools_condition
from workflows.execution_context import ExecutionContext, WorkflowState
from workflows.step_executor import StepExecutor
from workflows.monitors import WorkflowMonitor, MetricsCollector
from workflows.fault_tolerance import CircuitBreaker, RetryPolicy
# Structured logging for enterprise observability
import structlog
logger = structlog.get_logger()
Enterprise Dependencies Explained: - LangGraph: Production-grade state graph orchestration with conditional logic - Circuit Breaker: Fault tolerance patterns preventing cascade failures - MetricsCollector: Enterprise monitoring with SLA tracking - Structured Logging: JSON logging for enterprise observability systems
Step 2: Enterprise Workflow State Management
Implement comprehensive state management for complex workflows:
class WorkflowStatus(Enum):
"""Enterprise workflow lifecycle states."""
INITIALIZING = "initializing"
RUNNING = "running"
PAUSED = "paused"
WAITING_APPROVAL = "waiting_approval" # Human-in-the-loop
COMPLETED = "completed"
FAILED = "failed"
CANCELLED = "cancelled"
ROLLBACK = "rollback" # Error recovery
class StepType(Enum):
"""Advanced workflow step types for enterprise patterns."""
SEQUENTIAL = "sequential" # Linear execution
PARALLEL = "parallel" # Concurrent execution
CONDITIONAL = "conditional" # Dynamic routing
LOOP = "loop" # Iterative processing
REACT = "react" # Reasoning-action loops
HUMAN_APPROVAL = "human_approval" # Compliance checkpoints
ORCHESTRATOR = "orchestrator" # Central coordination
WORKER = "worker" # Specialized execution
WEBHOOK = "webhook" # External integration
ROLLBACK = "rollback" # Error recovery
@dataclass
class EnterpriseWorkflowState:
"""Comprehensive workflow state for enterprise orchestration."""
# Workflow identification
workflow_id: str
workflow_name: str
version: str = "1.0.0"
# Execution state
status: WorkflowStatus = WorkflowStatus.INITIALIZING
current_step: str = None
completed_steps: List[str] = field(default_factory=list)
failed_steps: List[str] = field(default_factory=list)
# Data flow
context: Dict[str, Any] = field(default_factory=dict)
intermediate_results: Dict[str, Any] = field(default_factory=dict)
final_result: Any = None
# Performance and monitoring
start_time: datetime = None
end_time: datetime = None
step_timings: Dict[str, float] = field(default_factory=dict)
resource_usage: Dict[str, Any] = field(default_factory=dict)
# Error handling and recovery
error_count: int = 0
last_error: str = None
retry_count: Dict[str, int] = field(default_factory=dict)
rollback_points: List[Dict[str, Any]] = field(default_factory=list)
# Enterprise features
approval_requests: List[Dict[str, Any]] = field(default_factory=list)
audit_trail: List[Dict[str, Any]] = field(default_factory=list)
compliance_flags: List[str] = field(default_factory=list)
def __post_init__(self):
if not self.start_time:
self.start_time = datetime.now(timezone.utc)
if not self.workflow_id:
self.workflow_id = str(uuid.uuid4())
Enterprise State Benefits: - Complete Auditability: Full execution history for compliance requirements - Performance Monitoring: Detailed timing and resource usage tracking - Error Recovery: Rollback points and retry management for fault tolerance - Human Integration: Approval workflows for regulated processes
Step 3: LangGraph Orchestrator-Worker Implementation
Implement the enterprise orchestrator-worker pattern:
class EnterpriseWorkflowOrchestrator:
"""LangGraph-based orchestrator for advanced agentic workflows."""
def __init__(self, config: Dict[str, Any]):
self.config = config
self.metrics = MetricsCollector()
self.circuit_breaker = CircuitBreaker(
failure_threshold=config.get('failure_threshold', 5),
timeout=config.get('timeout', 30)
)
self.retry_policy = RetryPolicy(
max_attempts=config.get('max_retries', 3),
backoff_strategy='exponential'
)
# Initialize LangGraph state machine
self.workflow_graph = self._create_workflow_graph()
def _create_workflow_graph(self) -> StateGraph:
"""Create LangGraph workflow with enterprise patterns."""
workflow = StateGraph(EnterpriseWorkflowState)
# Add orchestration nodes
workflow.add_node("orchestrator", self._orchestrate_task)
workflow.add_node("parallel_executor", self._execute_parallel)
workflow.add_node("conditional_router", self._route_conditionally)
workflow.add_node("react_agent", self._react_reasoning)
workflow.add_node("human_approval", self._request_approval)
workflow.add_node("error_recovery", self._recover_from_error)
# Define workflow edges with conditional logic
workflow.add_edge(START, "orchestrator")
workflow.add_conditional_edges(
"orchestrator",
self._determine_execution_path,
{
"parallel": "parallel_executor",
"conditional": "conditional_router",
"react": "react_agent",
"approval": "human_approval",
"error": "error_recovery",
"complete": END
}
)
return workflow.compile()
async def _orchestrate_task(self, state: EnterpriseWorkflowState) -> Dict[str, Any]:
"""Central orchestrator that coordinates all workflow execution."""
logger.info(
"Orchestrating workflow task",
workflow_id=state.workflow_id,
step=state.current_step
)
try:
# Analyze task complexity and requirements
task_analysis = await self._analyze_task_complexity(state.context)
# Determine optimal execution strategy
execution_strategy = self._select_execution_strategy(
task_analysis,
state.context
)
# Update workflow state
state.context.update({
'task_analysis': task_analysis,
'execution_strategy': execution_strategy,
'orchestrator_timestamp': datetime.now(timezone.utc).isoformat()
})
# Track orchestration metrics
self.metrics.record_orchestration_decision(
workflow_id=state.workflow_id,
strategy=execution_strategy,
complexity=task_analysis.get('complexity_score', 0)
)
return {'next_action': execution_strategy}
except Exception as e:
logger.error(
"Orchestration failed",
workflow_id=state.workflow_id,
error=str(e)
)
state.last_error = str(e)
state.error_count += 1
return {'next_action': 'error'}
LangGraph Orchestration Benefits: - State Machine Reliability: Formal state transitions prevent invalid workflow states - Conditional Logic: Dynamic routing based on real-time analysis and context - Metrics Integration: Enterprise monitoring with performance and decision tracking - Error Resilience: Circuit breakers and retry policies prevent cascade failures
**Step Type Capabilities:**
- **ACTION**: Executes individual workflow operations (API calls, data processing)
- **CONDITION**: Enables dynamic routing based on data evaluation
- **PARALLEL**: Allows concurrent execution of multiple independent operations
- **LOOP**: Supports iterative processing with termination conditions
- **WAIT**: Implements delays and time-based coordination
- **HUMAN_TASK**: Integrates human approval or manual intervention points
- **WEBHOOK**: Facilitates external system integration and event-driven processing
### Step 1.3: Step Status Tracking
Define comprehensive status tracking for workflow step lifecycle management:
```python
class StepStatus(Enum):
"""Status of workflow steps throughout execution lifecycle."""
PENDING = "pending" # Waiting to start
RUNNING = "running" # Currently executing
COMPLETED = "completed" # Successfully finished
FAILED = "failed" # Execution failed
SKIPPED = "skipped" # Conditionally bypassed
WAITING = "waiting" # Waiting for dependencies
RETRYING = "retrying" # Attempting retry after failure
Status Flow Logic: - Steps start in PENDING state upon workflow initialization - Transition to RUNNING when execution begins - Move to COMPLETED on successful execution - Enter FAILED state on errors (may transition to RETRYING) - SKIPPED for steps bypassed by conditional logic - WAITING indicates dependency blocking
Step 1.4: Basic Step Configuration¶
Establish the core workflow step structure with execution configuration:
@dataclass
class WorkflowStep:
"""Enhanced workflow step with advanced capabilities."""
# Core identification
step_id: str
name: str
step_type: StepType
# Execution configuration
action: Optional[str] = None # Action to execute
agent_capability: Optional[str] = None # Required agent capability
timeout: int = 300 # Step timeout in seconds
Core Configuration Elements: - step_id: Unique identifier for dependency tracking and monitoring - name: Human-readable step description for debugging and logging - step_type: Determines execution pattern and behavior - action: Specific operation to perform (function name, API endpoint, etc.) - agent_capability: Required agent skill for step execution - timeout: Maximum execution time before step is considered failed
Step 1.5: Input/Output Data Mapping¶
Configure data flow and validation for step inputs and outputs:
# Input/Output configuration
input_mapping: Dict[str, str] = field(default_factory=dict)
output_mapping: Dict[str, str] = field(default_factory=dict)
input_validation: Dict[str, Any] = field(default_factory=dict)
Data Flow Management: - input_mapping: Maps workflow variables to step input parameters - Example: {"customer_id": "workflow.customer_data.id"} - output_mapping: Maps step results to workflow variables - Example: {"result.order_id": "workflow.order_details.id"} - input_validation: JSON schema or validation rules for input data - Ensures data quality and prevents execution errors
Step 1.6: Control Flow Dependencies¶
Define step relationships and execution flow control:
# Control flow
dependencies: List[str] = field(default_factory=list)
conditions: List[Dict[str, Any]] = field(default_factory=list)
next_steps: List[str] = field(default_factory=list)
error_handlers: List[str] = field(default_factory=list)
Flow Control Mechanisms: - dependencies: List of step IDs that must complete before this step can execute - conditions: Boolean expressions that determine if step should execute - Example: [{"expression": "workflow.order_total > 100", "operator": ">"}] - next_steps: Steps to execute after successful completion - error_handlers: Steps to execute if this step fails (compensation logic)
Step 1.7: Error Handling and Recovery¶
Implement comprehensive error handling and retry mechanisms:
# Retry and error handling
retry_policy: Dict[str, Any] = field(default_factory=dict)
rollback_actions: List[str] = field(default_factory=list)
Error Recovery Configuration: - retry_policy: Defines retry behavior for transient failures - {"max_attempts": 3, "backoff_strategy": "exponential", "delay": 5} - rollback_actions: Compensation actions to undo changes on failure - Critical for maintaining data consistency in distributed workflows
Step 1.8: Advanced Execution Patterns¶
Configure parallel processing and loop execution capabilities:
# Parallel and loop configuration
parallel_steps: List['WorkflowStep'] = field(default_factory=list)
loop_condition: Optional[str] = None
loop_max_iterations: int = 100
Advanced Pattern Support: - parallel_steps: Child steps for parallel execution containers - Enables concurrent processing of independent operations - loop_condition: Boolean expression for loop termination - Example: "workflow.processed_items < workflow.total_items" - loop_max_iterations: Safety limit to prevent infinite loops
Step 1.9: Monitoring and Observability¶
Add comprehensive monitoring and metrics collection:
# Monitoring and observability
metrics_enabled: bool = True
custom_metrics: List[str] = field(default_factory=list)
Observability Features: - metrics_enabled: Controls whether step execution metrics are collected - custom_metrics: Additional business metrics to track during execution - Examples: ["processing_rate", "quality_score", "resource_usage"]
Step 1.10: Runtime State Management¶
Track execution state and performance data:
# Runtime state
status: StepStatus = StepStatus.PENDING
start_time: Optional[str] = None
end_time: Optional[str] = None
execution_data: Dict[str, Any] = field(default_factory=dict)
error_info: Optional[Dict[str, Any]] = None
retry_count: int = 0
Runtime Tracking: - status: Current execution status for workflow coordination - start_time/end_time: Execution timing for performance analysis - execution_data: Step-specific data and intermediate results - error_info: Detailed error information for debugging and recovery - retry_count: Number of retry attempts for failure analysis
This foundation provides a robust, enterprise-ready workflow step definition that supports complex execution patterns while maintaining observability and reliability.
Step 1.11: Workflow Definition Foundation¶
Now let's build the complete workflow definition structure, starting with basic identification:
@dataclass
class AdvancedWorkflow:
"""Advanced workflow definition with complex patterns."""
# Core identification
workflow_id: str # Unique workflow identifier
name: str # Human-readable workflow name
description: str # Detailed workflow description
version: str = "1.0" # Version for workflow evolution
Workflow Identity Management: - workflow_id: UUID-based unique identifier for tracking and referencing - name: Descriptive name for UI display and logging - description: Comprehensive explanation of workflow purpose and behavior - version: Semantic versioning for workflow template evolution
Step 1.12: Workflow Structure Definition¶
Define the core workflow composition and data management:
# Workflow structure
steps: List[WorkflowStep] = field(default_factory=list)
global_variables: Dict[str, Any] = field(default_factory=dict)
Structural Components: - steps: Ordered list of workflow steps defining execution flow - global_variables: Shared data accessible across all workflow steps - Used for configuration, shared state, and cross-step communication
Step 1.13: Execution Configuration¶
Configure workflow-level execution parameters and limits:
# Configuration
timeout: int = 3600 # Total workflow timeout
max_parallel_steps: int = 10 # Concurrency limit
retry_policy: Dict[str, Any] = field(default_factory=dict) # Global retry settings
Configuration Parameters: - timeout: Maximum workflow execution time (3600 seconds = 1 hour default) - max_parallel_steps: Limits concurrent step execution to prevent resource exhaustion - retry_policy: Default retry behavior for all steps unless overridden - Example: {"max_attempts": 3, "backoff_multiplier": 2.0}
Step 1.14: Monitoring and Performance Settings¶
Configure advanced monitoring and optimization features:
# Monitoring and optimization
sla_targets: Dict[str, Any] = field(default_factory=dict)
optimization_enabled: bool = True
adaptive_routing: bool = True
Advanced Features: - sla_targets: Service Level Agreement targets for performance monitoring - Example: {"max_execution_time": 300, "min_success_rate": 0.95} - optimization_enabled: Enables automatic workflow optimization based on performance data - adaptive_routing: Allows dynamic step routing based on agent availability and performance
Step 1.15: Workflow Metadata and Governance¶
Add metadata for workflow governance and lifecycle management:
# Metadata
created_at: str = field(default_factory=lambda: datetime.now().isoformat())
created_by: Optional[str] = None
tags: List[str] = field(default_factory=list)
Governance Information: - created_at: ISO timestamp for audit trail and lifecycle tracking - created_by: User/system identifier for accountability and authorization - tags: Categorical labels for workflow organization and discovery - Examples: ["production", "customer-service", "high-priority"]
This workflow definition provides a comprehensive foundation for enterprise-grade workflow management with built-in governance, monitoring, and optimization capabilities.
Step 1.16: Workflow Engine Foundation¶
Initialize the advanced workflow engine with core dependencies and resource management:
class AdvancedWorkflowEngine:
"""Advanced workflow engine with sophisticated execution patterns."""
def __init__(self, step_executor: StepExecutor, monitor: WorkflowMonitor):
# Core execution components
self.step_executor = step_executor # Handles individual step execution
self.monitor = monitor # Provides observability and metrics
# Runtime state management
self.active_workflows: Dict[str, ExecutionContext] = {}
self.workflow_templates: Dict[str, AdvancedWorkflow] = {}
Engine Architecture: - step_executor: Handles the actual execution of individual workflow steps - monitor: Provides real-time monitoring, logging, and metrics collection - active_workflows: Tracks currently executing workflows by execution ID - workflow_templates: Stores reusable workflow definitions
Step 1.17: Resource Management Configuration¶
Configure resource limits and management systems:
# Execution control
self.max_concurrent_workflows = 100
self.resource_manager = ResourceManager()
self.optimizer = WorkflowOptimizer()
Resource Management: - max_concurrent_workflows: Prevents system overload by limiting concurrent executions - resource_manager: Manages agent allocation, memory usage, and system resources - optimizer: Analyzes workflow performance and provides optimization recommendations
Step 1.18: Workflow Execution Initialization¶
Implement the workflow execution entry point with context setup:
async def execute_workflow(self, workflow: AdvancedWorkflow,
input_data: Dict[str, Any] = None,
execution_options: Dict[str, Any] = None) -> Dict[str, Any]:
"""Execute an advanced workflow with full feature support."""
# Generate unique execution identifier
execution_id = str(uuid.uuid4())
input_data = input_data or {}
execution_options = execution_options or {}
Execution Setup: - execution_id: UUID ensures unique tracking across distributed systems - input_data: Initial workflow data and parameters - execution_options: Runtime configuration overrides and execution preferences
Step 1.19: Execution Context Creation¶
Create and register the execution context for monitoring and state management:
# Create execution context
context = ExecutionContext(
execution_id=execution_id,
workflow=workflow,
input_data=input_data,
options=execution_options
)
self.active_workflows[execution_id] = context
Context Management: - ExecutionContext: Encapsulates all workflow execution state and data - active_workflows: Registry for monitoring and managing concurrent executions - Context includes workflow definition, input data, runtime options, and execution state
Step 1.20: Workflow Execution Lifecycle¶
Implement the complete workflow execution lifecycle with monitoring:
try:
# Start monitoring
await self.monitor.start_workflow_monitoring(context)
# Initialize workflow state
context.state = WorkflowState.RUNNING
context.start_time = datetime.now()
Execution Initialization: - start_workflow_monitoring: Begins real-time metrics collection and observability - WorkflowState.RUNNING: Marks workflow as actively executing for status tracking - start_time: Records execution start for performance analysis and SLA monitoring
Step 1.21: Core Execution with Timeout Protection¶
Execute the workflow with proper timeout handling:
# Execute workflow with timeout
result = await asyncio.wait_for(
self._execute_workflow_internal(context),
timeout=workflow.timeout
)
# Finalize execution
context.state = WorkflowState.COMPLETED
context.end_time = datetime.now()
context.result = result
return self._create_execution_result(context, "completed", result)
Execution Management: - asyncio.wait_for: Enforces workflow timeout to prevent runaway executions - _execute_workflow_internal: Core execution logic handling step orchestration - WorkflowState.COMPLETED: Marks successful completion for audit and monitoring - _create_execution_result: Standardizes result format for consistent API responses
Step 1.22: Timeout Handling¶
Handle workflow timeout scenarios gracefully:
except asyncio.TimeoutError:
context.state = WorkflowState.TIMEOUT
logger.error(f"Workflow {execution_id} timed out")
return self._create_execution_result(context, "timeout", None)
Timeout Management: - WorkflowState.TIMEOUT: Distinguishes timeouts from other failure types - Error logging: Records timeout events for performance analysis and alerting - Graceful return: Provides structured response even on timeout
Step 1.23: Error Handling and Recovery¶
Implement comprehensive error handling with rollback capabilities:
except Exception as e:
context.state = WorkflowState.FAILED
context.error = str(e)
logger.error(f"Workflow {execution_id} failed: {e}")
# Attempt rollback
await self._execute_rollback(context)
return self._create_execution_result(context, "failed", None)
Error Recovery: - WorkflowState.FAILED: Marks workflow failure for monitoring and retry logic - Error context capture: Preserves error details for debugging and analysis - _execute_rollback: Attempts to undo partial changes for data consistency
Step 1.24: Resource Cleanup¶
Ensure proper resource cleanup regardless of execution outcome:
finally:
# Cleanup
await self.monitor.stop_workflow_monitoring(execution_id)
self.active_workflows.pop(execution_id, None)
Cleanup Operations: - stop_workflow_monitoring: Finalizes metrics collection and releases monitoring resources - active_workflows cleanup: Removes completed workflow from active registry - finally block: Ensures cleanup occurs regardless of success, timeout, or failure
Step 1.25: Internal Execution Foundation¶
Implement the core workflow orchestration logic with dependency resolution:
async def _execute_workflow_internal(self, context: ExecutionContext) -> Dict[str, Any]:
"""Internal workflow execution logic."""
workflow = context.workflow
# Build execution graph
execution_graph = self._build_execution_graph(workflow)
Execution Setup: - execution_graph: Creates dependency graph for step ordering and parallel execution planning - Graph structure: Maps step dependencies, enabling efficient execution scheduling
Step 1.26: Execution State Initialization¶
Initialize tracking for step execution progress:
State Tracking: - completed_steps: Tracks successfully completed steps for dependency resolution - failed_steps: Tracks failed steps to prevent dependent step execution
Step 1.27: Main Execution Loop¶
Implement the primary execution loop with deadlock detection:
while len(completed_steps) < len(workflow.steps):
# Find ready steps (all dependencies satisfied)
ready_steps = self._find_ready_steps(
workflow, execution_graph, completed_steps, failed_steps
)
if not ready_steps:
# Check for deadlock or completion
remaining_steps = set(s.step_id for s in workflow.steps) - completed_steps - failed_steps
if remaining_steps:
logger.warning(f"Potential deadlock detected. Remaining steps: {remaining_steps}")
break
Execution Logic: - ready_steps: Identifies steps with all dependencies satisfied - Deadlock detection: Prevents infinite loops when dependencies cannot be resolved - remaining_steps: Calculates steps that haven't been processed
Step 1.28: Task Creation for Ready Steps¶
Create execution tasks for all ready steps using appropriate patterns:
# Execute ready steps with appropriate pattern
execution_tasks = []
for step in ready_steps:
if step.step_type == StepType.PARALLEL:
task = asyncio.create_task(
self._execute_parallel_step(step, context)
)
Task Creation Process: - execution_tasks: Collection of concurrent tasks for ready steps - PARALLEL type: Creates task for concurrent child step execution
Step 1.28a: Specialized Step Type Handling¶
Handle different step types with specialized execution methods:
elif step.step_type == StepType.LOOP:
task = asyncio.create_task(
self._execute_loop_step(step, context)
)
elif step.step_type == StepType.CONDITION:
task = asyncio.create_task(
self._execute_conditional_step(step, context)
)
else:
task = asyncio.create_task(
self._execute_single_step(step, context)
)
execution_tasks.append((step, task))
Specialized Execution: - LOOP: Implements iterative processing with termination conditions - CONDITION: Evaluates conditions and routes execution accordingly - Default (ACTION): Executes single operations like API calls or data processing - Task registration: Pairs step with its execution task for result processing
Step 1.29: Task Completion Processing¶
Process the results of executed steps with proper success/failure handling:
# Wait for tasks to complete
for step, task in execution_tasks:
try:
result = await task
if result.get("success", False):
completed_steps.add(step.step_id)
step.status = StepStatus.COMPLETED
# Apply output mapping
self._apply_output_mapping(step, result, context.data)
Success Processing: - await task: Waits for individual step completion - completed_steps.add: Tracks completion for dependency resolution - StepStatus.COMPLETED: Updates step status for monitoring - _apply_output_mapping: Transfers step results to workflow data using configured mappings
Step 1.30: Failure Handling and Recovery¶
Handle step failures with configurable failure policies:
else:
failed_steps.add(step.step_id)
step.status = StepStatus.FAILED
step.error_info = result.get("error")
# Check if failure should stop workflow
if not step.retry_policy.get("continue_on_failure", False):
raise Exception(f"Step {step.step_id} failed: {result.get('error')}")
Failure Management: - failed_steps.add: Prevents dependent steps from executing - error_info: Captures detailed error information for debugging - continue_on_failure: Policy setting allows workflow to continue despite step failures
Step 1.31: Exception Handling and Recovery¶
Implement comprehensive exception handling with recovery mechanisms:
except Exception as e:
failed_steps.add(step.step_id)
step.status = StepStatus.FAILED
step.error_info = {"error": str(e), "timestamp": datetime.now().isoformat()}
# Attempt error recovery
recovery_result = await self._handle_step_error(step, context, e)
if not recovery_result.get("recovered", False):
raise
return context.data
Recovery Process: - Exception capture: Handles unexpected errors during step execution - Timestamped errors: Records when errors occurred for analysis - _handle_step_error: Attempts error recovery through retry policies or compensation - Recovery validation: Only continues if recovery was successful - context.data return: Returns accumulated workflow data as final result
Step 1.32: Parallel Execution Setup¶
Implement parallel step execution with proper resource management:
async def _execute_parallel_step(self, step: WorkflowStep,
context: ExecutionContext) -> Dict[str, Any]:
"""Execute a parallel step container."""
if not step.parallel_steps:
return {"success": True, "message": "No parallel steps to execute"}
Parallel Execution Validation: - parallel_steps check: Validates that the step contains child steps for parallel execution - Empty step handling: Returns success for containers without child steps
Step 1.33: Concurrency Control¶
Implement semaphore-based concurrency control to prevent resource exhaustion:
# Limit concurrent execution
semaphore = asyncio.Semaphore(context.workflow.max_parallel_steps)
async def execute_with_semaphore(parallel_step):
async with semaphore:
return await self._execute_single_step(parallel_step, context)
Resource Management: - asyncio.Semaphore: Limits maximum concurrent step executions - max_parallel_steps: Configurable limit prevents system overload - execute_with_semaphore: Wrapper function that ensures semaphore control
Step 1.34: Parallel Task Creation and Execution¶
Create and execute all parallel tasks concurrently:
# Execute all parallel steps
tasks = [
asyncio.create_task(execute_with_semaphore(parallel_step))
for parallel_step in step.parallel_steps
]
results = await asyncio.gather(*tasks, return_exceptions=True)
Concurrent Execution: - asyncio.create_task: Creates concurrent tasks for each parallel step - asyncio.gather: Waits for all parallel tasks to complete - return_exceptions=True: Captures exceptions without stopping other tasks
Step 1.35: Result Analysis and Classification¶
Analyze parallel execution results and categorize successes and failures:
# Analyze results
successful_results = []
failed_results = []
for i, result in enumerate(results):
if isinstance(result, Exception):
failed_results.append({
"step_id": step.parallel_steps[i].step_id,
"error": str(result)
})
elif result.get("success", False):
successful_results.append(result)
else:
failed_results.append({
"step_id": step.parallel_steps[i].step_id,
"error": result.get("error", "Unknown error")
})
Result Classification: - Exception handling: Captures and logs exceptions from parallel execution - Success identification: Identifies successfully completed parallel steps - Error aggregation: Collects detailed error information for failed steps
Step 1.36: Success Threshold Evaluation¶
Determine overall parallel execution success based on configurable thresholds:
# Determine overall success
total_steps = len(step.parallel_steps)
successful_steps = len(successful_results)
failure_threshold = step.retry_policy.get("parallel_failure_threshold", 0.5)
success = (successful_steps / total_steps) >= failure_threshold
Success Evaluation: - parallel_failure_threshold: Configurable threshold (default 50%) for considering parallel execution successful - Success rate calculation: Compares successful steps against total steps - Flexible failure tolerance: Allows workflows to continue even if some parallel steps fail
Step 1.37: Comprehensive Result Assembly¶
Assemble detailed execution results for monitoring and decision making:
return {
"success": success,
"parallel_results": {
"total_steps": total_steps,
"successful_steps": successful_steps,
"failed_steps": len(failed_results),
"success_rate": successful_steps / total_steps,
"results": successful_results,
"failures": failed_results
}
}
Result Structure: - success: Overall execution success based on threshold evaluation - total_steps: Complete count for performance analysis - success_rate: Percentage success rate for monitoring and optimization - results/failures: Detailed results for debugging and data flow
This parallel execution system provides enterprise-grade concurrency control with flexible success criteria and comprehensive result tracking.
This completes the core workflow execution engine with comprehensive support for complex patterns, parallel processing, and robust error handling.
Part 2: Workflow Optimization and Monitoring (20 minutes)¶
Now that we have a robust workflow execution engine, let's add intelligent optimization and comprehensive monitoring capabilities.
Step 2.1: Optimization Module Foundation¶
Establish the foundation for workflow optimization with necessary imports and data structures:
# workflows/optimizer.py
import asyncio
from typing import Dict, List, Any, Optional
from dataclasses import dataclass
from datetime import datetime, timedelta
import statistics
import logging
from workflows.advanced_engine import AdvancedWorkflow, WorkflowStep
from workflows.execution_context import ExecutionContext
logger = logging.getLogger(__name__)
Module Dependencies: - asyncio: For asynchronous performance analysis operations - statistics: For calculating performance metrics and identifying patterns - ExecutionContext: Access to workflow execution data for analysis - dataclasses: Clean definition of metrics and recommendation structures
Step 2.2: Performance Metrics Data Structure¶
Define comprehensive performance metrics for workflow analysis:
@dataclass
class PerformanceMetrics:
"""Performance metrics for workflow optimization."""
execution_time: float # Average execution time
resource_usage: Dict[str, float] # CPU, memory, network usage
success_rate: float # Percentage of successful executions
error_rate: float # Percentage of failed executions
step_performance: Dict[str, Dict[str, float]] # Per-step performance data
bottlenecks: List[str] # Identified performance bottlenecks
optimization_score: float # Overall optimization opportunity score
Metrics Categories: - execution_time: Used for performance trend analysis and SLA monitoring - resource_usage: Tracks system resource consumption for capacity planning - success_rate/error_rate: Reliability metrics for quality assessment - step_performance: Granular analysis for identifying optimization opportunities - bottlenecks: Specific steps requiring optimization attention - optimization_score: Overall assessment of optimization potential (0-100)
Step 2.3: Optimization Recommendation Structure¶
Define structured optimization recommendations with implementation guidance:
@dataclass
class OptimizationRecommendation:
"""Optimization recommendation for workflows."""
recommendation_id: str # Unique identifier
type: str # parallelization, caching, routing, etc.
description: str # Human-readable description
expected_improvement: float # Expected performance improvement %
implementation_effort: str # low, medium, high
risk_level: str # low, medium, high
specific_changes: List[Dict[str, Any]] # Detailed implementation steps
Recommendation Components: - type: Category of optimization (parallelization, caching, resource allocation) - expected_improvement: Quantified performance benefit for prioritization - implementation_effort: Resource requirements for implementation planning - risk_level: Risk assessment for change management decisions - specific_changes: Actionable implementation steps with configuration details
Step 2.4: Workflow Optimizer Initialization¶
Create the intelligent workflow optimizer with learning capabilities:
class WorkflowOptimizer:
"""Intelligent workflow optimizer using performance data."""
def __init__(self):
self.performance_history: Dict[str, List[PerformanceMetrics]] = {}
self.optimization_rules: List[Dict[str, Any]] = []
self.learning_enabled = True
self._initialize_optimization_rules()
Optimizer Components: - performance_history: Historical metrics for trend analysis and machine learning - optimization_rules: Rule-based optimization detection and recommendation system - learning_enabled: Controls whether the optimizer learns from execution patterns
Step 2.5: High-Priority Optimization Rules¶
Define the most impactful optimization rules first:
def _initialize_optimization_rules(self):
"""Initialize built-in optimization rules."""
self.optimization_rules = [
{
"name": "parallel_optimization",
"condition": lambda metrics: self._detect_parallelization_opportunity(metrics),
"recommendation": self._create_parallelization_recommendation,
"priority": 9
},
Highest Priority Rule: - parallel_optimization: Detects steps that can be executed concurrently - Priority 9: Highest impact optimization (typically 35%+ improvement) - condition: Lambda function evaluates metrics for parallelization opportunities
Step 2.5a: Medium-Priority Optimization Rules¶
Add caching and resource optimization rules:
{
"name": "caching_optimization",
"condition": lambda metrics: self._detect_caching_opportunity(metrics),
"recommendation": self._create_caching_recommendation,
"priority": 8
},
{
"name": "resource_optimization",
"condition": lambda metrics: self._detect_resource_waste(metrics),
"recommendation": self._create_resource_optimization_recommendation,
"priority": 7
}
]
Additional Optimization Rules: - caching_optimization: Identifies repeated operations that benefit from result caching - resource_optimization: Detects inefficient resource usage patterns - Priority system: Ensures high-impact optimizations are applied first
**Optimization Rules:**
- **parallel_optimization**: Identifies opportunities to parallelize sequential steps
- **caching_optimization**: Detects repeated operations that could benefit from caching
- **resource_optimization**: Finds inefficient resource usage patterns
- **Priority system**: Higher priority rules are evaluated first (9 = highest impact)
### Step 2.6: Performance Analysis Foundation
Implement comprehensive workflow performance analysis:
```python
async def analyze_workflow_performance(self, workflow: AdvancedWorkflow,
execution_history: List[ExecutionContext]) -> PerformanceMetrics:
"""Analyze workflow performance and identify optimization opportunities."""
if not execution_history:
return self._create_empty_metrics()
# Calculate execution time statistics
execution_times = [
(ctx.end_time - ctx.start_time).total_seconds()
for ctx in execution_history
if ctx.end_time and ctx.start_time
]
avg_execution_time = statistics.mean(execution_times) if execution_times else 0
Performance Analysis Setup: - execution_history validation: Ensures sufficient data for meaningful analysis - execution_times calculation: Extracts timing data from completed workflow executions - avg_execution_time: Primary performance metric for trend analysis
Step 2.7: Success Rate Analysis¶
Analyze workflow reliability and error patterns:
# Calculate success/error rates
successful_executions = len([ctx for ctx in execution_history if ctx.state.value == "completed"])
total_executions = len(execution_history)
success_rate = successful_executions / total_executions if total_executions > 0 else 0
error_rate = 1 - success_rate
Reliability Metrics: - successful_executions: Count of workflows that completed successfully - success_rate: Percentage reliability for SLA monitoring - error_rate: Failure percentage for identifying stability issues
Step 2.8: Comprehensive Analysis Integration¶
Integrate all analysis components into comprehensive performance metrics:
# Analyze step performance
step_performance = self._analyze_step_performance(workflow, execution_history)
# Identify bottlenecks
bottlenecks = self._identify_bottlenecks(step_performance)
# Calculate resource usage
resource_usage = self._calculate_resource_usage(execution_history)
# Calculate optimization score
optimization_score = self._calculate_optimization_score(
avg_execution_time, success_rate, step_performance, resource_usage
)
Advanced Analysis: - step_performance: Granular per-step performance data for targeted optimization - bottlenecks: Identifies specific steps causing performance issues - resource_usage: Tracks system resource consumption patterns - optimization_score: Quantifies overall optimization potential
Step 2.9: Metrics Assembly and Storage¶
Assemble final metrics and store for machine learning:
metrics = PerformanceMetrics(
execution_time=avg_execution_time,
resource_usage=resource_usage,
success_rate=success_rate,
error_rate=error_rate,
step_performance=step_performance,
bottlenecks=bottlenecks,
optimization_score=optimization_score
)
# Store metrics for learning
self._store_performance_metrics(workflow.workflow_id, metrics)
return metrics
Data Management: - PerformanceMetrics construction: Assembles all analysis results into structured format - _store_performance_metrics: Preserves metrics for historical analysis and machine learning - Return metrics: Provides immediate analysis results for optimization recommendations
Step 2.10: Optimization Recommendation Generation¶
Generate actionable optimization recommendations based on performance analysis:
async def generate_optimization_recommendations(self,
workflow: AdvancedWorkflow,
metrics: PerformanceMetrics) -> List[OptimizationRecommendation]:
"""Generate optimization recommendations based on performance analysis."""
recommendations = []
# Apply optimization rules
for rule in sorted(self.optimization_rules, key=lambda r: r["priority"], reverse=True):
try:
if rule["condition"](metrics):
recommendation = rule["recommendation"](workflow, metrics)
if recommendation:
recommendations.append(recommendation)
except Exception as e:
logger.warning(f"Error applying optimization rule {rule['name']}: {e}")
Recommendation Generation Process: - Priority-based evaluation: Applies highest-impact optimization rules first - Condition evaluation: Only generates recommendations when metrics indicate opportunity - Error handling: Continues processing even if individual rules fail
Step 2.11: Recommendation Ranking and Selection¶
Rank and select the most impactful optimization recommendations:
# Sort by expected improvement
recommendations.sort(key=lambda r: r.expected_improvement, reverse=True)
return recommendations[:5] # Return top 5 recommendations
Selection Criteria: - expected_improvement: Primary ranking factor for maximum performance impact - Top 5 limit: Prevents recommendation overwhelm while focusing on highest-value changes - Sorted presentation: Enables prioritized implementation planning
Step 2.12: Parallelization Recommendation Creation¶
Create specific parallelization recommendations with detailed implementation guidance:
def _create_parallelization_recommendation(self, workflow: AdvancedWorkflow,
metrics: PerformanceMetrics) -> OptimizationRecommendation:
"""Create recommendation for parallelization."""
return OptimizationRecommendation(
recommendation_id=f"parallel_{workflow.workflow_id}_{int(datetime.now().timestamp())}",
type="parallelization",
description="Convert sequential steps to parallel execution to reduce overall execution time",
expected_improvement=35.0, # 35% improvement
implementation_effort="medium",
risk_level="low",
specific_changes=[
{
"action": "create_parallel_container",
"steps": list(metrics.bottlenecks[:3]), # Top 3 bottleneck steps
"max_concurrent": 3
}
]
)
Parallelization Recommendation: - 35% improvement: Based on analysis of typical parallelization benefits - Medium effort: Requires workflow restructuring but no algorithm changes - Low risk: Parallelization typically doesn't affect business logic - specific_changes: Actionable implementation steps with configuration
Step 2.13: Intelligent Bottleneck Detection¶
Implement sophisticated bottleneck detection using statistical analysis:
def _identify_bottlenecks(self, step_performance: Dict[str, Dict[str, float]]) -> List[str]:
"""Identify performance bottlenecks in the workflow."""
bottlenecks = []
if not step_performance:
return bottlenecks
# Find steps with high execution times
avg_times = [metrics["avg_execution_time"] for metrics in step_performance.values()]
if avg_times:
time_threshold = statistics.mean(avg_times) + statistics.stdev(avg_times)
for step_id, metrics in step_performance.items():
if metrics["avg_execution_time"] > time_threshold:
bottlenecks.append(step_id)
Statistical Bottleneck Detection: - time_threshold: Uses mean + standard deviation to identify outlier steps - Statistical significance: Ensures only truly slow steps are flagged as bottlenecks - Dynamic thresholds: Adapts to each workflow's performance profile
Step 2.14: Performance Variance Analysis¶
Detect steps with inconsistent performance that may benefit from optimization:
# Find steps with high variance (inconsistent performance)
for step_id, metrics in step_performance.items():
if metrics["variance"] > metrics["avg_execution_time"] * 0.5:
if step_id not in bottlenecks:
bottlenecks.append(step_id)
return bottlenecks
Variance-Based Detection: - High variance detection: Identifies steps with inconsistent performance - 50% threshold: Steps with variance > 50% of mean execution time are flagged - Consistency improvement: Targets steps that would benefit from caching or resource optimization - Duplicate prevention: Avoids flagging steps already identified by execution time analysis
This completes our comprehensive workflow optimization system with intelligent analysis, recommendation generation, and statistical bottleneck detection.
The optimization system provides enterprise-grade performance analysis with actionable recommendations for workflow improvement.
Chapter Summary¶
Congratulations! You've built an enterprise-grade advanced workflow system with the following capabilities:
Advanced Workflow Features Implemented¶
Complex Execution Patterns¶
- Parallel execution with concurrent step processing and synchronization
- Conditional branching with dynamic routing based on data and context
- Loop processing with iterative execution and termination conditions
- Hybrid workflows combining multiple execution patterns
Performance Optimization¶
- Intelligent optimization with automated performance analysis
- Resource management with efficient allocation and monitoring
- Bottleneck detection with automated identification and recommendations
- Adaptive routing based on agent performance and availability
Enterprise Features¶
- Comprehensive error handling with retry policies and rollback mechanisms
- Workflow monitoring with real-time metrics and observability
- Input validation with schema-based verification
- Resource pooling for efficient agent utilization
Practical Exercise¶
Create an intelligent document processing workflow:
class DocumentProcessingWorkflow:
"""Advanced workflow for intelligent document processing."""
def __init__(self, workflow_engine: AdvancedWorkflowEngine):
self.engine = workflow_engine
def create_document_workflow(self) -> AdvancedWorkflow:
"""Create a complex document processing workflow."""
# TODO: Create workflow with:
# 1. Parallel OCR and metadata extraction
# 2. Conditional routing based on document type
# 3. Loop for multi-page processing
# 4. Error handling with human review fallback
# 5. Quality validation with retry logic
pass
Hint: Check the 🗂️ View Test Solutions → for complete implementations and advanced patterns.
Next Session Preview¶
In Session 9, we'll explore Production Agent Deployment including: - Container orchestration for agent systems - Scalable deployment architectures with Kubernetes - Production monitoring and alerting - Security and compliance in production environments
Homework¶
- Implement workflow versioning with backward compatibility
- Create dynamic workflow generation from natural language descriptions
- Add machine learning optimization using historical performance data
- Build workflow testing framework for comprehensive validation
Test Your Knowledge¶
Ready to test your understanding of Advanced Agent Workflows? Take our comprehensive multiple-choice test to verify your mastery of the concepts.
Multiple Choice Test - Session 8¶
Test your understanding of Advanced Agent Workflows:
Question 1: Which workflow pattern enables multiple tasks to execute simultaneously?
A) Loop workflows
B) Parallel workflows
C) Sequential workflows
D) Conditional workflows
Question 2: What triggers dynamic branching in conditional workflows?
A) Random selection
B) Agent availability
C) Time-based schedules
D) Data values and context evaluation
Question 3: What is the most comprehensive approach to workflow fault recovery?
A) Restarting the entire workflow
B) Simple retry mechanisms
C) Ignoring errors and continuing
D) Rollback and retry with compensation actions
Question 4: How do adaptive workflows improve their performance over time?
A) By running more frequently
B) By reducing the number of steps
C) By analyzing performance metrics and adjusting execution strategies
D) By using faster hardware
Question 5: What information does the workflow execution context typically maintain?
A) Only the current step
B) Just error messages
C) State data, execution history, and resource allocations
D) Only timing information
Question 6: How are dependencies between workflow steps managed?
A) Using dependency graphs and prerequisite checking
B) By alphabetical ordering
C) Through timing delays only
D) Through random execution
Question 7: What is the purpose of resource allocation in advanced workflows?
A) To reduce costs
B) To improve security
C) To simplify configuration
D) To prevent resource contention and ensure optimal performance
Question 8: What metrics are most important for workflow observability?
A) Only network traffic
B) Only execution time
C) Execution time, success rates, resource utilization, and error patterns
D) Just memory usage
Question 9: What mechanisms prevent infinite loops in workflow systems?
A) Time-based termination only
B) Manual intervention
C) Maximum iteration limits and conditional exit criteria
D) Random termination
Question 10: What advantage do hybrid workflows provide over simple workflow patterns?
A) Lower resource usage
B) Faster execution
C) Easier implementation
D) Flexibility to combine multiple execution patterns for complex scenarios
Additional Resources¶
- Workflow Orchestration Patterns
- Performance Optimization Techniques
- Enterprise Workflow Architecture
- Monitoring and Observability
Remember: Great workflows balance complexity with maintainability, providing powerful capabilities while remaining understandable and debuggable! 🔄⚡🎯
