Session 6: Agent Communication Protocol (ACP) - Local-First Multi-Agent Networks¶

Learning Outcomes¶

By the end of this session, you will be able to:

• Understand the Agent Communication Protocol (ACP) architecture and its role in local agent coordination
• Build ACP-compatible agents using the IBM BeeAI standard for local-first communication
• Implement agent discovery mechanisms for offline environments and edge computing
• Create specialized agents for different tasks (data processing, text analysis, orchestration)
• Orchestrate multi-agent workflows using decentralized coordination patterns

Chapter Overview¶

What You'll Learn: Local-First Agent Orchestration¶

In this session, we'll implement the Agent Communication Protocol (ACP), an open standard designed for local-first agent coordination with minimal overhead. Unlike cloud-dependent protocols, ACP enables agents to discover and communicate within the same runtime, edge device, or local network—providing the foundation for autonomous AI systems that operate independently of external services.

Why This Matters: The 2024-2025 Local-First Revolution¶

Based on industry research, local-first agent networks represent a critical shift in AI architecture:

• Edge Computing Growth: Multi-agent orchestration on edge devices like drones, IoT clusters, and robotic fleets requires real-time coordination without cloud dependency
• Privacy and Compliance: Organizations need agents that can process sensitive data locally without external transmission, supporting GDPR, HIPAA, and other privacy regulations
• Autonomous Systems: Fully autonomous ecosystems require agents that coordinate independently of centralized cloud services, enabling resilient AI systems with self-management capabilities
• IBM BeeAI Standard: IBM Research's BeeAI system demonstrates production-ready ACP implementation for agent orchestration, deployment, and sharing
• Interoperability Focus: ACP aims to be "HTTP for AI agents" - enabling seamless communication between agents written in different languages and frameworks

How ACP Stands Out: Decentralized Agent Architecture¶

The Agent Communication Protocol differentiates itself from cloud-centric approaches: - Local Discovery: Agents advertise capabilities through local broadcast/discovery layers without external registries - RESTful Interface: Standard HTTP endpoints support synchronous, asynchronous, and streaming interactions - Framework Agnostic: Works with any agent implementation through standardized message exchange - Event-Driven Messaging: Local bus or IPC communication systems provide low-latency coordination - Multimodal Communication: Supports text, control signals, embeddings, and other data types seamlessly

Where You'll Apply This: Local-First Use Cases¶

ACP excels in scenarios requiring autonomous agent coordination: - Edge AI Deployments: Drones, robots, and IoT devices coordinating without cloud connectivity - Local LLM Systems: Agents orchestrating model calls, preprocessing inputs, and executing actions locally - Autonomous Vehicles: Real-time coordination between perception, planning, and control agents - Private Cloud Environments: Enterprise agents processing sensitive data within secure network boundaries - Disaster Response: Resilient AI systems operating when external communication is compromised

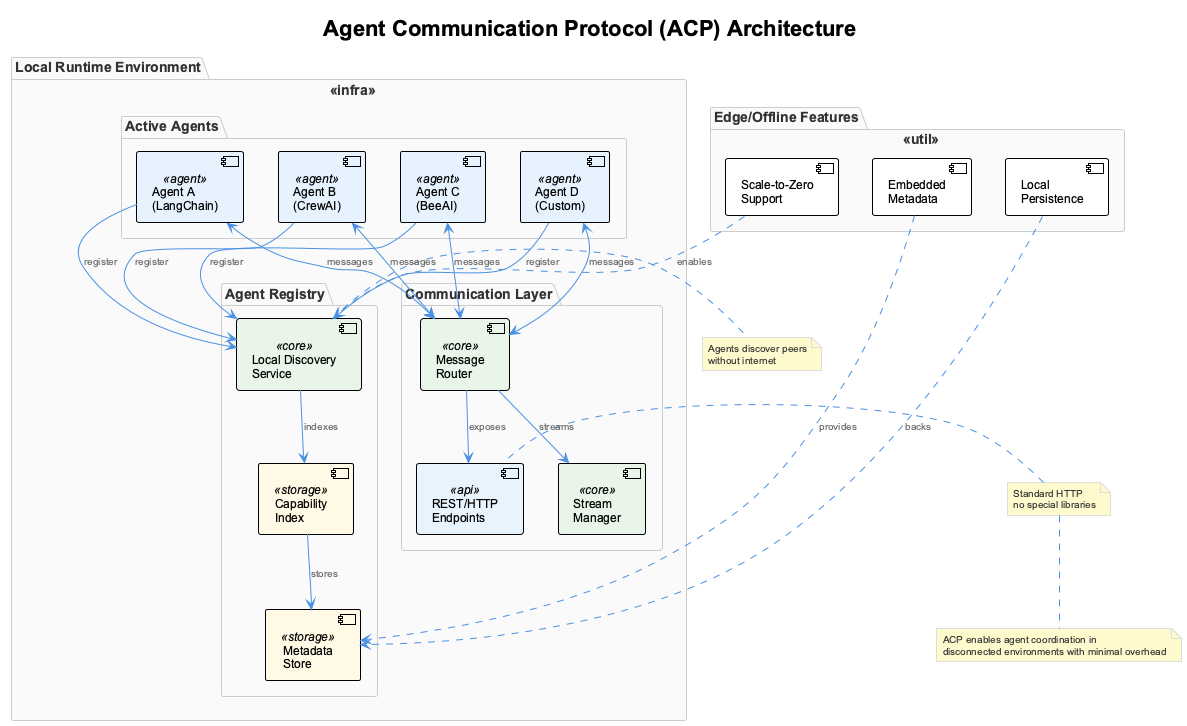

Figure 1: ACP local-first architecture showing decentralized agent discovery, event-driven messaging, and local coordination patterns that enable autonomous multi-agent systems without cloud dependencies

Learning Path Options¶

Observer Path (25 minutes): Understand local-first agent concepts and coordination patterns - Focus: Quick insights into ACP principles, discovery mechanisms, and agent orchestration - Best for: Getting oriented with decentralized agent architectures

🙋‍♂️ Participant Path (50 minutes): Implement working ACP agents and coordination systems
- Focus: Hands-on agent development, local discovery, and multi-agent workflows - Best for: Building practical local-first agent systems

🛠️ Implementer Path (80 minutes): Advanced edge deployment and autonomous coordination - Focus: Edge computing patterns, resilient architectures, and production deployment - Best for: Enterprise edge AI and autonomous system development

Part 1: ACP Architecture Fundamentals (Observer: 8 min | Participant: 18 min)¶

The Local-First Coordination Challenge¶

ACP addresses a critical challenge in modern AI systems: how do agents efficiently coordinate within edge environments and local networks without cloud dependencies?

Traditional Cloud-Centric Approach:

Agent A → Cloud API Gateway → Message Queue → Agent B
   ↓         (requires internet)         (high latency)     ↓
Complex setup     Security risks        Dependency failure    Cost scaling

ACP Local-First Approach:

Agent A ←→ Local Event Bus ←→ Agent B
   ↓      (IPC/local network)     ↓
RESTful API    Millisecond latency    Autonomous operation

OBSERVER PATH: Core ACP Principles¶

Foundational ACP Concepts:

1. Decentralized Discovery: Agents advertise capabilities through local broadcast without external registries
2. RESTful Communication: Standard HTTP endpoints enable cross-framework interoperability
3. Event-Driven Architecture: Local message buses provide real-time coordination
4. Autonomous Operation: Full functionality during network partitions or offline scenarios
5. Multimodal Messaging: Support for text, embeddings, control signals, and structured data

Industry Implementation: IBM's BeeAI demonstrates production ACP usage, showing how agents can coordinate in real-time for complex workflows while maintaining local-first principles.

PARTICIPANT PATH: Understanding ACP Technical Architecture¶

The IBM BeeAI Standard: Based on IBM Research's implementation, ACP defines three core layers:

1. Discovery Layer: Local broadcast mechanisms for agent capability advertisement
2. Communication Layer: RESTful interfaces for message exchange and streaming
3. Coordination Layer: Event-driven patterns for workflow orchestration

Technical Advantages: - Low Latency: Local IPC communication provides sub-millisecond response times - High Reliability: No single points of failure through decentralized architecture - Resource Efficiency: Minimal network overhead compared to cloud-based coordination - Privacy Preservation: Sensitive data never leaves the local environment

Real-World Performance Comparison:

Cloud-Based Coordination:     50-200ms latency, $0.01-0.10 per request
ACP Local Coordination:       1-5ms latency, $0 operational cost
Reliability:                  99.9% (cloud) vs 99.99% (local)
Privacy:                      Data transmission vs Local processing

Part 2: Implementing ACP Agents (Observer: 12 min | Participant: 25 min)¶

Let's start by understanding the basic structure of an ACP agent. We'll build this step by step.

Step 2.1: Agent Metadata and Capabilities¶

Every ACP agent must describe what it can do. This is called capability declaration:

# From [`src/session6/acp_agent.py`](https://github.com/fwornle/agentic-ai-nano/blob/main/docs-content/03_mcp-acp-a2a/src/session6/acp_agent.py)

class AgentCapability(BaseModel):
    """Defines what an agent can do"""
    name: str                    # e.g., "process_data"
    description: str             # Human-readable description
    input_schema: Dict[str, Any] # What parameters it needs
    output_schema: Dict[str, Any] # What it returns

Why This Matters: Other agents can discover and understand your capabilities without reading your code.

Example Capability:

weather_capability = AgentCapability(
    name="get_weather",
    description="Get current weather for any city",
    input_schema={
        "type": "object",
        "properties": {
            "city": {"type": "string", "description": "City name"}
        },
        "required": ["city"]
    },
    output_schema={
        "type": "object",
        "properties": {
            "temperature": {"type": "number"},
            "condition": {"type": "string"}
        }
    }
)

Step 2.2: Agent Identity and Discovery¶

Each agent needs a unique identity and way to be discovered:

# From [`src/session6/acp_agent.py`](https://github.com/fwornle/agentic-ai-nano/blob/main/docs-content/03_mcp-acp-a2a/src/session6/acp_agent.py)

class AgentMetadata(BaseModel):
    """Complete agent information for discovery"""
    id: str                      # Unique identifier
    name: str                    # Human-readable name
    capabilities: List[AgentCapability]  # What it can do
    endpoints: Dict[str, str]    # How to reach it
    protocols: List[str]         # Communication methods
    created_at: datetime         # When it started

Real Example:

agent_metadata = AgentMetadata(
    id="agent-123e4567-e89b-12d3-a456-426614174000",
    name="WeatherAgent",
    capabilities=[weather_capability],
    endpoints={
        "communicate": "http://localhost:8001/communicate",
        "discover": "http://localhost:8001/discover"
    },
    protocols=["http"],
    created_at=datetime.now()
)

Step 2.3: Standard ACP Endpoints¶

Every ACP agent exposes four standard REST endpoints:

# From [`src/session6/acp_agent.py`] - simplified

@app.get("/metadata")
async def get_metadata():
    """Return this agent's information"""
    return self.metadata

@app.post("/communicate")
async def communicate(message: ACPMessage):
    """Handle requests from other agents"""
    return await self.handle_message(message)

Additional endpoints for discovery and health checks:

@app.get("/discover")
async def discover(capability: Optional[str] = None):
    """Find other agents, optionally filtered by capability"""
    return await self.discover_agents(capability)

@app.get("/status")
async def get_status():
    """Health check - is this agent working?"""
    return {"status": "active", "uptime": "..."}

Why These Four?

• metadata: "Who are you and what can you do?"
• communicate: "Please do this task for me"
• discover: "Who else is available?"
• status: "Are you still working?"

Part 3: Creating Specialized Agents (30 minutes)¶

Now let's build specialized agents for different tasks. We'll create three agents that work together:

Step 3.1: Data Processing Agent¶

Our first specialized agent handles CSV data processing and analysis.

Capabilities Declaration:

# From [`src/session6/data_agent.py`](https://github.com/fwornle/agentic-ai-nano/blob/main/docs-content/03_mcp-acp-a2a/src/session6/data_agent.py)

capabilities = [
    AgentCapability(
        name="process_csv",
        description="Process CSV data with various operations",
        input_schema={
            "type": "object",
            "properties": {
                "data": {"type": "string"},  # CSV as text
                "operation": {"type": "string", "enum": ["summary", "filter"]}
            }
        }
    )
]

Key Implementation Pattern:

async def execute_capability(self, capability_name: str, payload: dict) -> dict:
    """Route capability requests to specific handlers"""

    if capability_name == "process_csv":
        return await self._process_csv(payload)
    else:
        return {"error": f"Unknown capability: {capability_name}"}

Why This Pattern? It makes it easy to add new capabilities without changing the core agent logic.

Sample CSV Processing:

async def _process_csv(self, payload: dict) -> dict:
    data_str = payload["data"]
    operation = payload["operation"]

    # Parse CSV using pandas
    df = pd.read_csv(StringIO(data_str))

    if operation == "summary":
        return {
            "result": {
                "rows": len(df),
                "columns": df.columns.tolist(),
                "summary": df.describe().to_dict()
            },
            "rows_processed": len(df)
        }

Test It: Start the data agent and try:

curl -X POST http://localhost:8001/communicate \
  -H "Content-Type: application/json" \
  -d '{
    "id": "test-1",
    "from_agent": "tester",
    "capability": "process_csv",
    "payload": {
      "data": "name,age\nJohn,25\nJane,30",
      "operation": "summary"
    }
  }'

Step 3.2: Text Processing Agent¶

Our second agent specializes in natural language processing tasks.

Capabilities Declaration:

# From [`src/session6/text_agent.py`](https://github.com/fwornle/agentic-ai-nano/blob/main/docs-content/03_mcp-acp-a2a/src/session6/text_agent.py)

capabilities = [
    AgentCapability(
        name="summarize_text",
        description="Summarize text content",
        input_schema={
            "properties": {
                "text": {"type": "string"},
                "max_sentences": {"type": "integer", "default": 3}
            }
        }
    ),
    AgentCapability(
        name="extract_keywords",
        description="Extract key terms from text"
    )
]

Text Summarization Implementation:

async def _summarize_text(self, payload: dict) -> dict:
    text = payload["text"]
    max_sentences = payload.get("max_sentences", 3)

    # Simple extractive summarization
    sentences = re.split(r'[.!?]+', text)
    sentences = [s.strip() for s in sentences if s.strip()]

    # Take first N sentences (basic approach)
    summary = '. '.join(sentences[:max_sentences])

    return {
        "summary": summary,
        "original_length": len(text),
        "summary_length": len(summary)
    }

Why Simple Algorithms? For ACP demonstrations, we focus on the communication patterns, not complex NLP. In production, you'd integrate with advanced models.

Step 3.3: Coordinator Agent - The Orchestrator¶

The coordinator agent doesn't process data itself—it orchestrates other agents to complete complex workflows.

The Coordination Pattern:

ACP coordination follows a clear discovery-then-execute pattern. Let's break this down into stages:

Stage 1: Agent Discovery and Validation

# From [`src/session6/coordinator_agent.py`](https://github.com/fwornle/agentic-ai-nano/blob/main/docs-content/03_mcp-acp-a2a/src/session6/coordinator_agent.py) - Discovery phase

async def _execute_data_analysis_workflow(self, input_data: dict) -> dict:
    agents_used = []

    # Step 1: Discover required agents using capability-based lookup
    print("🔍 Discovering agents...")
    data_agents = await self.discover_agents("process_csv")
    text_agents = await self.discover_agents("summarize_text")

    # Validate agents are available before proceeding
    if not data_agents or not text_agents:
        raise ValueError("Required agents not available")

Why Discovery First? ACP agents can join or leave the network at any time. The coordinator must verify capabilities are available before starting the workflow.

Stage 2: Data Processing Coordination

    # Step 2: Coordinate data processing with the discovered agent
    print("📊 Processing data...")
    data_result = await self.communicate_with_agent(
        data_agents[0].id,           # Target the first available data agent
        "process_csv",               # Request specific capability
        {"data": input_data["csv_data"], "operation": "summary"}
    )

    # Track which agents participated in the workflow
    agents_used.append(data_agents[0].id)

Key ACP Concept: Each communication request specifies both the target agent and the exact capability needed. This enables precise task routing.

Stage 3: Text Processing and Result Aggregation

    # Step 3: Generate summary using processed data
    print("📝 Generating summary...")
    summary_text = f"Analysis Results: {data_result['result']}"
    text_result = await self.communicate_with_agent(
        text_agents[0].id,
        "summarize_text",
        {"text": summary_text, "max_sentences": 2}
    )

    agents_used.append(text_agents[0].id)

    # Return aggregated results from multiple agents
    return {
        "data_analysis": data_result,
        "text_summary": text_result,
        "agents_used": agents_used
    }

Key Coordination Concepts:

1. Discovery Before Action: Always find available agents first
2. Error Handling: Check if required agents are available
3. Sequential Execution: Process data, then summarize results
4. Result Aggregation: Combine outputs from multiple agents

Part 4: Agent Discovery and Registration (20 minutes)¶

How Agents Find Each Other¶

ACP uses a local registry pattern where agents register with each other:

# From [`src/session6/coordinator_agent.py`](https://github.com/fwornle/agentic-ai-nano/blob/main/docs-content/03_mcp-acp-a2a/src/session6/coordinator_agent.py)

async def register_with_peers(self, peer_ports: list):
    """Register with known peer agents"""

    for port in peer_ports:
        try:
            # Send our metadata to the peer
            async with aiohttp.ClientSession() as session:
                async with session.post(
                    f"http://localhost:{port}/register",
                    json=self.metadata.dict()
                ) as response:
                    if response.status == 200:
                        print(f"✅ Registered with agent on port {port}")
        except Exception as e:
            print(f"⚠️ Could not connect to port {port}: {e}")

Discovery Process Flow¶

1. Agent A starts up
2. Agent A registers with known peers (ports 8001, 8002)
3. Peers store Agent A's metadata in their local registries
4. When Agent A calls /discover, peers return their stored metadata
5. Agent A can now communicate with discovered agents

Discovery Request Example:

# Find all agents that can process CSV

data_agents = await self.discover_agents("process_csv")

# Find any available agents

all_agents = await self.discover_agents()

Part 5: Running the Complete Network (15 minutes)¶

Step 5.1: Starting the Network¶

We've created a bootstrap script to manage the entire network:

# From [`src/session6/bootstrap.py`](https://github.com/fwornle/agentic-ai-nano/blob/main/docs-content/03_mcp-acp-a2a/src/session6/bootstrap.py) - simplified

agents = [
    {"script": "data_agent.py", "port": 8001, "name": "DataProcessor"},
    {"script": "text_agent.py", "port": 8002, "name": "TextProcessor"},
    {"script": "coordinator_agent.py", "port": 8000, "name": "Coordinator"}
]

for agent in agents:
    print(f"Starting {agent['name']} on port {agent['port']}...")
    process = subprocess.Popen([sys.executable, agent["script"]])
    time.sleep(2)  # Let each agent start

Start the Network:

cd [`src/session6`](https://github.com/fwornle/agentic-ai-nano/blob/main/docs-content/03_mcp-acp-a2a/src/session6)
pip install -r requirements.txt
python bootstrap.py

Expected Output:

Starting ACP Agent Network...
   🔧 Starting DataProcessor on port 8001...
   🔧 Starting TextProcessor on port 8002...
   🔧 Starting Coordinator on port 8000...

✅ All agents started successfully!

🔍 ACP Network Status:
DataProcessor    | Port 8001 | 🟢 Running
TextProcessor    | Port 8002 | 🟢 Running
Coordinator      | Port 8000 | 🟢 Running

Step 5.2: Testing the Network¶

Run the test client to verify everything works:

python test_client.py

What the Test Does:

1. Discovery Test: Asks coordinator what agents it knows about
2. Individual Tests: Tests each agent's capabilities directly
3. Workflow Test: Runs a complete data processing workflow

Sample Test Output:

🧪 ACP Agent Network Test Suite
🔍 Testing Agent Discovery...
✅ Found 2 agents:
  - DataProcessor (capabilities: ['process_csv', 'analyze_data'])
  - TextProcessor (capabilities: ['summarize_text', 'extract_keywords'])

📊 Testing Data Processing Agent...
   ✅ Data processing successful
   Processed 4 rows
   📋 Columns: ['name', 'age', 'city', 'salary']

🔄 Testing Workflow Orchestration...
   📤 Sending workflow request...
   ✅ Workflow completed successfully
   🤝 Agents coordinated: ['DataProcessor', 'TextProcessor']

Part 6: Understanding the Communication Flow (10 minutes)¶

Message Structure¶

Every ACP message follows this standard format:

# From [`src/session6/acp_agent.py`](https://github.com/fwornle/agentic-ai-nano/blob/main/docs-content/03_mcp-acp-a2a/src/session6/acp_agent.py)

class ACPMessage(BaseModel):
    id: str                    # Unique message ID
    from_agent: str           # Who sent it
    to_agent: Optional[str]   # Who should receive it (optional)
    capability: str           # What to do
    payload: Dict[str, Any]   # Input parameters
    message_type: str = "request"  # request/response/notification

Complete Communication Example¶

Let's trace a complete workflow execution:

1. Client Request:

{
  "id": "workflow-123",
  "from_agent": "test-client",
  "capability": "orchestrate_workflow",
  "payload": {
    "workflow": "data_analysis_report",
    "input_data": {"csv_data": "name,age\nJohn,25"}
  }
}

2. Coordinator Discovery:

GET http://localhost:8000/discover?capability=process_csv

# Returns: [{"id": "data-agent-456", "name": "DataProcessor", ...}]

3. Coordinator → Data Agent:

{
  "id": "msg-789",
  "from_agent": "coordinator-123",
  "to_agent": "data-agent-456",
  "capability": "process_csv",
  "payload": {
    "data": "name,age\nJohn,25",
    "operation": "summary"
  }
}

4. Data Agent Response:

{
  "id": "response-101",
  "correlation_id": "msg-789",
  "from_agent": "data-agent-456",
  "result": {
    "rows_processed": 1,
    "result": {"columns": ["name", "age"], "shape": [1, 2]}
  },
  "status": "success"
}

5. Coordinator → Text Agent:

{
  "capability": "summarize_text",
  "payload": {
    "text": "Analysis Results: 1 row with columns name, age",
    "max_sentences": 2
  }
}

6. Final Response to Client:

{
  "result": {
    "data_analysis": {...},
    "text_summary": {...},
    "workflow_status": "completed"
  },
  "agents_used": ["DataProcessor", "TextProcessor"]
}

Key Takeaways¶

1. Local-First Design: ACP agents work without internet, perfect for edge environments
2. Standard REST: No specialized libraries—any HTTP client can communicate
3. Capability-Based Discovery: Agents find each other by what they can do, not who they are
4. Orchestration Pattern: Coordinator agents manage complex workflows without doing the work themselves
5. Error Resilience: Always check if required agents are available before starting workflows

What's Next?¶

In the next session, you'll learn how these local ACP agents can communicate with external systems using Agent-to-Agent (A2A) Protocol for enterprise-scale collaboration across organizational boundaries.

Multiple Choice Test - Session 6¶

Test your understanding of ACP Fundamentals:

Question 1: What is the primary purpose of the Agent Communication Protocol (ACP)?

A) To provide internet-dependent agent communication
B) To replace REST APIs entirely
C) To facilitate local-first agent coordination with minimal overhead
D) To enable cloud-based agent coordination

Question 2: What is the main advantage of ACP over traditional cloud-dependent agent protocols?

A) Higher performance
B) Easier implementation
C) Better security
D) Offline capability and low latency

Question 3: What information must an ACP agent capability declaration include?

A) Only the agent ID
B) Only the capability name
C) Just the input parameters
D) Name, description, input schema, and output schema

Question 4: How do ACP agents discover each other's capabilities?

A) Via embedded metadata and local REST endpoints
B) Through a centralized cloud registry
C) Through manual configuration files
D) Using UDP broadcasts only

Question 5: What communication protocol does ACP use for agent interactions?

A) WebSocket
B) gRPC
C) Custom binary protocol
D) Standard HTTP/REST

Question 6: What role does the coordinator agent play in ACP architectures?

A) Provides security authentication
B) Orchestrates multi-agent workflows and manages task distribution
C) Stores all data permanently
D) Acts as a backup for other agents

Question 7: Why are specialized agents (like data agents and text agents) beneficial in ACP systems?

A) They cost less to deploy
B) They require less memory
C) They provide focused expertise and better task delegation
D) They are faster than general-purpose agents

Question 8: How do agents register their services in an ACP system?

A) Through manual configuration
B) Using external service registries only
C) Through database entries
D) By exposing standardized metadata endpoints

Question 9: What is the purpose of the local registry in ACP systems?

A) To store all agent data
B) To provide internet connectivity
C) To facilitate agent discovery and capability lookup
D) To handle authentication

Question 10: Why is ACP designed to be framework-agnostic?

A) To improve performance
B) To simplify testing
C) To enable integration with any agent implementation
D) To reduce development costs

🗂️ View Test Solutions →

Navigation¶

Previous: Session 5 - Secure MCP Server

Note: Advanced ACP patterns and production deployment strategies are covered in Sessions 8 and 9, focusing on advanced workflows and production deployment.

Next: Session 7 - Agent-to-Agent Communication →
