Session 5: Secure MCP Servers - Enterprise Security Architecture¶

Learning Outcomes¶

By the end of this session, you will be able to:

Implement OAuth 2.1 with PKCE authentication following 2025 MCP security standards
Configure Resource Indicators (RFC 8707) to prevent token misuse and scope violations
Apply comprehensive rate limiting and DDoS protection with distributed controls
Secure data transmission using TLS encryption and certificate management
Validate all inputs and sanitize data to prevent injection attacks
Monitor security events through comprehensive audit logging and anomaly detection

Chapter Overview¶

What You'll Learn: Enterprise MCP Security Architecture¶

In this session, we'll implement enterprise-grade security for MCP servers, following the latest 2025 security standards and addressing the critical vulnerabilities discovered in early MCP deployments. This covers the essential security layers that protect against sophisticated threats while maintaining compliance with security frameworks.

Why This Matters: The 2025 MCP Security Crisis and Response¶

Based on 2024-2025 security research, MCP security has undergone significant evolution:

Critical Vulnerability Recognition: Security researchers identified MCP as "powerful but dangerous" with serious security problems due to lack of security-first design
OAuth 2.1 Standardization: March 2025 specification mandated OAuth 2.1 with PKCE for all clients, raising the baseline security significantly
Resource Indicators Requirement: RFC 8707 implementation now prevents malicious servers from misusing tokens across different resources
Enterprise Adoption Challenges: Every MCP integration is considered "a potential backdoor" until proper security controls are implemented
Human-in-the-Loop Requirements: Industry consensus treats "SHOULD" security recommendations as "MUST" for production systems

How Secure MCP Stands Out: Defense-in-Depth Architecture¶

The 2025 secure MCP architecture implements multiple security layers: - OAuth 2.1 with PKCE: Mandatory implementation preventing authorization code interception attacks - Resource Indicators: Token scoping prevents cross-resource abuse and privilege escalation - Attribute-Based Access Control (ABAC): Dynamic permissions based on user role, data sensitivity, and context - Comprehensive Monitoring: Anomaly detection for failed authentication, unusual access patterns, and data exfiltration

Where You'll Apply This: Enterprise Security Use Cases¶

Secure MCP implementations are critical for: - Financial Services: Compliance with PCI-DSS and SOX regulations for AI-driven trading and analysis - Healthcare Systems: HIPAA-compliant AI agents accessing patient records and medical databases - Government Agencies: FedRAMP-authorized AI systems with classified data access - Enterprise SaaS: Multi-tenant AI platforms with strict data isolation requirements

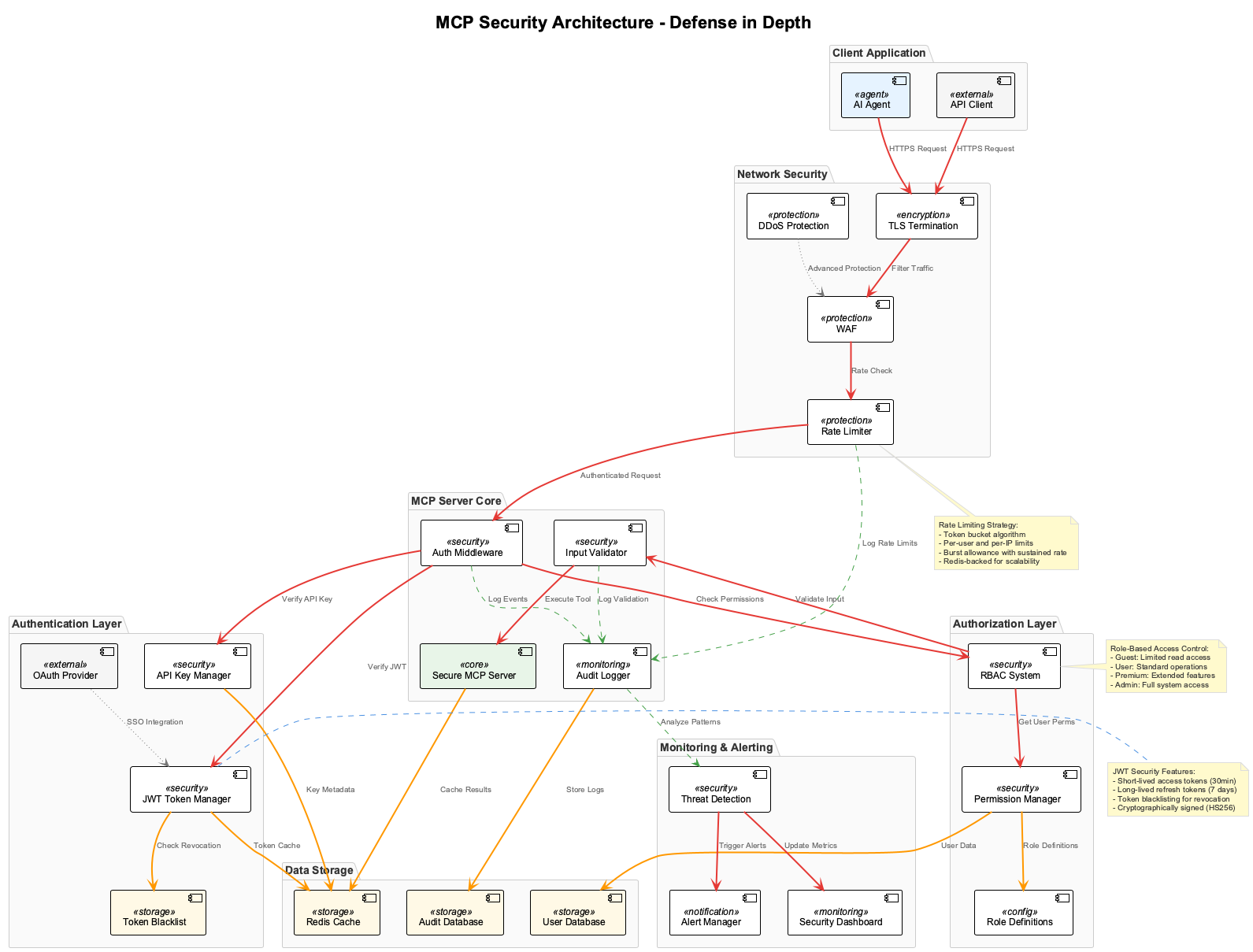

Figure 1: Enterprise MCP security architecture showing OAuth 2.1 authentication, Resource Indicators, rate limiting, and comprehensive monitoring layers working together to create a defense-in-depth security posture

Learning Path Options¶

Observer Path (30 minutes): Understand MCP security concepts and threat landscape - Focus: Quick insights into OAuth 2.1, security vulnerabilities, and protection strategies - Best for: Getting oriented with enterprise security requirements

🙋‍♂️ Participant Path (60 minutes): Implement working secure authentication and monitoring
- Focus: Hands-on OAuth 2.1 implementation, rate limiting, and security controls - Best for: Building practical secure MCP systems

🛠️ Implementer Path (95 minutes): Advanced enterprise security and compliance - Focus: ABAC policies, advanced threat detection, and regulatory compliance - Best for: Enterprise security architecture and compliance expertise

Part 1: Modern MCP Security Fundamentals (Observer: 8 min | Participant: 20 min)¶

The 2025 MCP Security Threat Landscape¶

Based on security research and vulnerability disclosures, MCP faces sophisticated threats that require enterprise-grade countermeasures:

Critical Threat Vectors: 1. Token Misuse Across Resources: Malicious servers using stolen tokens to access unintended resources 2. Authorization Code Interception: Man-in-the-middle attacks against OAuth flows without PKCE 3. Unintended LLM Actions: AI models performing destructive operations without explicit user intent
4. Privilege Escalation: Users or AI agents accessing resources beyond their intended permissions 5. Distributed Rate Limit Bypass: Coordinated attacks from multiple IP addresses 6. Data Exfiltration: Malicious extraction of sensitive data through seemingly legitimate tool calls

Industry Security Assessment: Security researchers have identified MCP as having "serious security problems" with every integration being "a potential backdoor" until proper controls are implemented. This has driven the rapid evolution of security standards in 2025.

OBSERVER PATH: Understanding Modern MCP Security¶

Key Security Evolution (2024-2025):

OAuth 2.1 with PKCE Mandate: March 2025 specification requires PKCE for all clients, preventing authorization code attacks
Resource Indicators (RFC 8707): Tokens explicitly scoped to specific MCP servers prevent cross-resource abuse
Human-in-the-Loop Requirements: Production systems treat optional security controls as mandatory
Sandbox Isolation: Local MCP servers must run in restricted execution environments

PARTICIPANT PATH: Implementing OAuth 2.1 with PKCE¶

Step 1: Modern OAuth 2.1 Implementation

Implement the 2025 MCP security standard with OAuth 2.1 and PKCE:

# src/auth/oauth_mcp.py - 2025 MCP Security Standard

import secrets
import hashlib
import base64
import jwt
from datetime import datetime, timedelta, timezone
from typing import Optional, Dict, Any, List, Tuple
from authlib.integrations.fastapi_oauth2 import AuthorizationServer
from authlib.oauth2.rfc7636 import CodeChallenge
from authlib.oauth2.rfc8707 import ResourceIndicator
import redis
import structlog
from cryptography.hazmat.primitives import hashes
from cryptography.hazmat.primitives.kdf.pbkdf2 import PBKDF2HMAC

logger = structlog.get_logger()

2025 Security Dependencies Explained: - authlib: Enterprise OAuth 2.1 implementation with PKCE support - cryptography: FIPS-compliant cryptographic operations - rfc7636: PKCE (Proof Key for Code Exchange) implementation - rfc8707: Resource Indicators for token scoping

Step 2: PKCE Code Challenge Generation

Implement secure PKCE challenge generation following RFC 7636:

class PKCEGenerator:
    """RFC 7636 PKCE implementation for MCP OAuth 2.1."""

    @staticmethod
    def generate_code_verifier() -> str:
        """
        Generate cryptographically secure code verifier.

        RFC 7636 requires 43-128 character URL-safe string.
        """
        code_verifier = base64.urlsafe_b64encode(
            secrets.token_bytes(96)
        ).decode('utf-8').rstrip('=')

        logger.info("Generated PKCE code verifier", length=len(code_verifier))
        return code_verifier

    @staticmethod
    def generate_code_challenge(verifier: str) -> Tuple[str, str]:
        """
        Generate code challenge from verifier using SHA256.

        Returns: (challenge, method)
        """
        digest = hashes.Hash(hashes.SHA256())
        digest.update(verifier.encode('utf-8'))
        challenge = base64.urlsafe_b64encode(
            digest.finalize()
        ).decode('utf-8').rstrip('=')

        return challenge, "S256"

PKCE Security Benefits: - Authorization Code Protection: Prevents interception attacks - Public Client Security: Secure OAuth for mobile and SPA clients - Cryptographic Proof: Mathematical verification of client authenticity

Step 3: Resource Indicators Implementation

Implement RFC 8707 Resource Indicators to prevent token misuse:

class ResourceIndicatorManager:
    """RFC 8707 Resource Indicators for MCP token scoping."""

    def __init__(self, redis_client):
        self.redis = redis_client
        self.valid_resources = {
            'mcp://filesystem-server': {
                'description': 'File system operations',
                'scopes': ['read', 'write', 'list']
            },
            'mcp://database-server': {
                'description': 'Database operations',
                'scopes': ['select', 'insert', 'update']
            },
            'mcp://api-server': {
                'description': 'External API calls',
                'scopes': ['call', 'webhook']
            }
        }

    def validate_resource_request(self, resource: str, scopes: List[str]) -> bool:
        """
        Validate resource indicator and requested scopes.

        Prevents tokens from being used on unintended resources.
        """
        if resource not in self.valid_resources:
            logger.warning("Invalid resource requested", resource=resource)
            return False

        valid_scopes = self.valid_resources[resource]['scopes']
        invalid_scopes = set(scopes) - set(valid_scopes)

        if invalid_scopes:
            logger.warning(
                "Invalid scopes requested",
                resource=resource,
                invalid_scopes=list(invalid_scopes)
            )
            return False

        return True

    def create_scoped_token(self, resource: str, scopes: List[str],
                           user_context: Dict[str, Any]) -> str:
        """
        Create JWT token scoped to specific resource and permissions.

        Token can ONLY be used for the specified resource.
        """
        if not self.validate_resource_request(resource, scopes):
            raise ValueError(f"Invalid resource or scopes: {resource}")

        payload = {
            'aud': resource,  # RFC 8707 audience claim
            'scope': ' '.join(scopes),
            'sub': user_context['user_id'],
            'iat': datetime.utcnow(),
            'exp': datetime.utcnow() + timedelta(hours=1),
            'resource_indicator': resource,
            'context': user_context
        }

        token = jwt.encode(payload, os.getenv('JWT_SECRET'), algorithm='HS256')
        logger.info(
            "Created scoped token",
            resource=resource,
            scopes=scopes,
            user_id=user_context['user_id']
        )

        return token

Resource Indicator Security Benefits: - Token Scoping: Mathematically prevents cross-resource token usage - Audience Validation: Explicit resource targeting in JWT audience claim - Scope Limitation: Granular permission control per resource - Audit Trail: Complete tracking of token creation and usage

Step 4: Enhanced JWT Management with Security Controls

class JWTManager:
    """JWT token management with Redis-based token blacklisting."""

    def __init__(self, secret_key: str = None, redis_client = None):
        # Initialize core JWT settings
        self.secret_key = secret_key or os.getenv('JWT_SECRET_KEY', self._generate_secret())
        self.algorithm = "HS256"
        self.access_token_expire_minutes = 30
        self.refresh_token_expire_days = 7
        self.redis_client = redis_client

        # Validate secret key security
        self._validate_secret_key()

Security design principles:

Environment variables prevent secrets in code
Short access tokens (30 min) limit exposure window
Separate refresh tokens (7 days) balance security and usability

Step 1.1.3: Secret Key Validation

    def _validate_secret_key(self):
        """Validate that secret key meets security requirements."""
        if len(self.secret_key) < 32:
            raise ValueError("JWT secret key must be at least 32 characters")

        if self.secret_key in ['secret', 'password', 'key']:
            raise ValueError("JWT secret key cannot be a common word")

        logger.info("JWT Manager initialized with secure secret key")

Security considerations:

Secret key must be at least 32 characters for cryptographic security
Environment variables keep secrets out of code
Automatic secret generation for development environments

Step 1.1.2: Secure Secret Generation

    def _generate_secret(self) -> str:
        """Generate a secure random secret key."""
        return secrets.token_urlsafe(64)

Why this matters:

secrets.token_urlsafe() uses cryptographically secure random generation
64-byte keys provide 512 bits of entropy
URL-safe encoding prevents encoding issues

Step 1.1.4: Access Token Payload Creation

Access tokens contain user identity and permissions for authorization:

    def create_tokens(self, user_data: Dict[str, Any]) -> Dict[str, str]:
        """Create access and refresh tokens with proper security claims."""
        now = datetime.now(timezone.utc)

        # Access token with comprehensive user permissions
        access_payload = {
            "sub": user_data["user_id"],           # Subject (user ID)
            "username": user_data["username"],     # Human-readable identifier
            "roles": user_data.get("roles", ["user"]),         # User roles
            "permissions": user_data.get("permissions", []),   # Specific permissions
            "iat": now,                            # Issued at time
            "exp": now + timedelta(minutes=self.access_token_expire_minutes),
            "type": "access"                       # Token type for validation
        }

Access token security:

Short expiration (30 minutes) limits damage from token theft
Comprehensive claims enable fine-grained authorization
Type field prevents token confusion attacks

Step 1.1.5: Refresh Token Design

Refresh tokens use minimal claims to reduce information leakage:

        # Refresh token (minimal claims for security)
        refresh_payload = {
            "sub": user_data["user_id"],          # Only user ID needed
            "iat": now,                           # Issued at time
            "exp": now + timedelta(days=self.refresh_token_expire_days),
            "type": "refresh"                     # Clearly mark as refresh token
        }

Refresh token principles:

Minimal data reduces exposure risk if compromised
Longer lifespan (7 days) for user convenience
Single purpose - only for generating new access tokens

Step 1.1.6: Token Generation and Response

        # Generate JWT tokens using secure algorithm
        access_token = jwt.encode(access_payload, self.secret_key, algorithm=self.algorithm)
        refresh_token = jwt.encode(refresh_payload, self.secret_key, algorithm=self.algorithm)

        # Return tokens in standard OAuth 2.0 format
        return {
            "access_token": access_token,
            "refresh_token": refresh_token,
            "token_type": "bearer",
            "expires_in": self.access_token_expire_minutes * 60  # Seconds until expiry
        }

Token generation security:

HS256 algorithm provides strong cryptographic signatures
Standard OAuth 2.0 response ensures client compatibility
Expires_in field helps clients manage token lifecycle

Step 1.1.7: Token Verification Process

Token verification follows a multi-step security validation process:

    def verify_token(self, token: str) -> Dict[str, Any]:
        """Verify and decode JWT token with comprehensive security checks."""
        try:
            # Step 1: Check blacklist for revoked tokens
            if self._is_token_blacklisted(token):
                raise HTTPException(status_code=401, detail="Token has been revoked")

            # Step 2: Cryptographically verify and decode
            payload = jwt.decode(token, self.secret_key, algorithms=[self.algorithm])

            # Step 3: Validate token type to prevent confusion attacks
            if payload.get("type") != "access":
                raise HTTPException(status_code=401, detail="Invalid token type")

            return payload

Step 1.1.8: Error Handling for Token Verification

        except jwt.ExpiredSignatureError:
            raise HTTPException(status_code=401, detail="Token has expired")
        except jwt.InvalidTokenError:
            raise HTTPException(status_code=401, detail="Invalid token")
        except Exception as e:
            logger.error(f"Unexpected token verification error: {e}")
            raise HTTPException(status_code=401, detail="Authentication failed")

Verification security:

Blacklist check first prevents using revoked tokens
Cryptographic validation ensures token integrity
Type validation prevents refresh tokens being used as access tokens

Step 1.1.9: Blacklist Checking for Revoked Tokens

Token blacklisting enables secure logout and revocation:

    def _is_token_blacklisted(self, token: str) -> bool:
        """Check if token has been revoked via blacklist."""
        if not self.redis_client:
            return False  # No Redis = no blacklisting capability

        try:
            # Hash token to avoid storing sensitive data
            token_hash = hashlib.sha256(token.encode()).hexdigest()
            return self.redis_client.exists(f"blacklist:{token_hash}")
        except Exception:
            # Fail securely - log warning but allow access
            logger.warning("Could not check token blacklist")
            return False

Blacklist security:

Token hashing prevents storing full tokens in Redis
Graceful degradation when Redis is unavailable
Secure failure mode allows access if blacklist check fails

Step 1.1.10: Token Revocation Implementation

    def blacklist_token(self, token: str, ttl_seconds: int = None):
        """Add token to blacklist for secure revocation."""
        if not self.redis_client:
            logger.warning("Cannot blacklist token: Redis not available")
            return

        try:
            # Auto-calculate TTL from token expiry if not provided
            if not ttl_seconds:
                ttl_seconds = self._calculate_token_ttl(token)

            # Store hashed token in blacklist with expiration
            token_hash = hashlib.sha256(token.encode()).hexdigest()
            self.redis_client.setex(f"blacklist:{token_hash}", ttl_seconds, "revoked")
            logger.info(f"Token successfully blacklisted for {ttl_seconds} seconds")

        except Exception as e:
            logger.error(f"Failed to blacklist token: {e}")

Step 1.1.11: TTL Calculation Helper

    def _calculate_token_ttl(self, token: str) -> int:
        """Calculate remaining TTL for token based on expiry."""
        try:
            # Decode without verifying expiry to get exp claim
            payload = jwt.decode(
                token, self.secret_key,
                algorithms=[self.algorithm],
                options={"verify_exp": False}
            )
            exp = payload.get("exp", 0)
            current_time = int(datetime.now(timezone.utc).timestamp())
            return max(0, exp - current_time)  # Ensure non-negative TTL
        except Exception:
            # Default to token expiry time if calculation fails
            return self.access_token_expire_minutes * 60

Step 1.2: Role-Based Access Control (RBAC)¶

Now let's implement a flexible authorization system:

Step 1.2.1: Permission Enumeration Design

Permissions define specific actions users can perform:

# src/auth/permissions.py

from enum import Enum
from typing import List, Set, Dict
from functools import wraps
from fastapi import HTTPException
import logging

logger = logging.getLogger(__name__)

class Permission(Enum):
    """Fine-grained permissions for MCP server resources."""
    READ_WEATHER = "weather:read"
    WRITE_WEATHER = "weather:write"
    READ_FILES = "files:read"
    WRITE_FILES = "files:write"
    DELETE_FILES = "files:delete"
    ADMIN_USERS = "admin:users"
    VIEW_METRICS = "metrics:view"

Permission design principles:

Namespace format (resource:action) for clear organization
Granular permissions enable precise access control
Enum-based prevents typos and enables IDE autocomplete

Step 1.2.2: Role Hierarchy Definition

Roles group permissions into logical user categories:

class Role(Enum):
    """Hierarchical roles from least to most privileged."""
    GUEST = "guest"        # Read-only basic access
    USER = "user"          # Standard user capabilities
    PREMIUM = "premium"    # Enhanced features
    ADMIN = "admin"        # Full system access

Step 1.2.3: Role-Permission Mapping

# Progressive permission assignment by role

ROLE_PERMISSIONS: Dict[Role, Set[Permission]] = {
    Role.GUEST: {
        Permission.READ_WEATHER  # Basic read access only
    },
    Role.USER: {
        Permission.READ_WEATHER,
        Permission.READ_FILES    # Add file reading
    },
    Role.PREMIUM: {
        Permission.READ_WEATHER, Permission.WRITE_WEATHER,
        Permission.READ_FILES, Permission.WRITE_FILES  # Full weather + files
    },
    Role.ADMIN: {
        perm for perm in Permission  # All permissions
    }
}

Role hierarchy benefits:

Progressive permissions from guest to admin
Clear separation of capabilities
Easy to audit and understand access levels

Step 1.2.4: Permission Validation Helper

def has_permission(user_permissions: List[str], required_permission: Permission) -> bool:
    """Check if user has specific permission."""
    return required_permission.value in user_permissions

def get_user_permissions(user_roles: List[str]) -> Set[Permission]:
    """Get all permissions for user's roles."""
    permissions = set()
    for role_name in user_roles:
        try:
            role = Role(role_name)
            permissions.update(ROLE_PERMISSIONS.get(role, set()))
        except ValueError:
            logger.warning(f"Unknown role: {role_name}")
    return permissions

Step 1.2.5: Permission Checking Decorator

def require_permission(required_permission: Permission):
    """Decorator to enforce permission requirements on MCP tools."""
    def decorator(tool_func):
        @wraps(tool_func)
        async def wrapper(*args, **kwargs):
            # Extract user context from request
            current_user = get_current_user()
            if not current_user:
                raise HTTPException(status_code=401, detail="Authentication required")

            # Validate user has required permission
            user_permissions = current_user.get("permissions", [])
            if not has_permission(user_permissions, required_permission):
                logger.warning(
                    f"Permission denied: User {current_user.get('username')} "
                    f"attempted {required_permission.value}"
                )

The decorator continues with error handling and security logging:

                raise HTTPException(
                    status_code=403,
                    detail=f"Permission '{required_permission.value}' required"
                )

            return await tool_func(*args, **kwargs)
        return wrapper
    return decorator

Authorization security:

Fail-secure design denies access by default
Audit logging tracks permission violations
Clear error messages help developers debug issues

Step 1.3: Secure MCP Server Integration¶

Let's integrate our authentication system with the MCP server:

Step 1.3.1: Middleware Class Setup

Authentication middleware intercepts all MCP requests for security validation:

# src/auth/middleware.py

from fastapi import Request, HTTPException
from fastapi.security import HTTPBearer, HTTPAuthorizationCredentials
from typing import Dict, Any, Optional
import logging
import time

logger = logging.getLogger(__name__)

class MCPAuthMiddleware:
    """Centralized authentication middleware for MCP server security."""

    def __init__(self, jwt_manager: JWTManager):
        self.jwt_manager = jwt_manager
        self.security = HTTPBearer(auto_error=False)  # Custom error handling
        self.excluded_paths = {"/health", "/metrics"}  # Skip auth for monitoring

Step 1.3.2: Header Extraction and Validation

    def _extract_bearer_token(self, request: Request) -> str:
        """Safely extract and validate Bearer token from headers."""
        auth_header = request.headers.get("Authorization")

        if not auth_header:
            raise HTTPException(
                status_code=401,
                detail="Authorization header required"
            )

        if not auth_header.startswith("Bearer "):
            raise HTTPException(
                status_code=401,
                detail="Bearer token format required"
            )

Now we extract and validate the token format:

        # Extract token (handle malformed headers safely)
        parts = auth_header.split(" ")
        if len(parts) != 2:
            raise HTTPException(
                status_code=401,
                detail="Invalid authorization header format"
            )

        return parts[1]

Step 1.3.3: Request Authentication Process

    async def authenticate_request(self, request: Request) -> Optional[Dict[str, Any]]:
        """Authenticate incoming MCP request with comprehensive validation."""
        # Skip authentication for excluded paths
        if request.url.path in self.excluded_paths:
            return None

        start_time = time.time()

        try:
            # Step 1: Extract token from headers
            token = self._extract_bearer_token(request)

            # Step 2: Verify token cryptographically
            payload = self.jwt_manager.verify_token(token)

The authentication continues with performance logging and success tracking:

            # Step 3: Log successful authentication
            auth_duration = (time.time() - start_time) * 1000
            logger.info(
                f"Authentication successful: {payload.get('username')} "
                f"(ID: {payload.get('sub')}) in {auth_duration:.2f}ms"
            )

            return payload

Step 1.3.4: Error Handling and Security Logging

        except HTTPException:
            # Re-raise HTTP exceptions (already properly formatted)
            raise
        except Exception as e:
            # Log security-relevant errors and fail securely
            logger.error(
                f"Authentication failure from {request.client.host if request.client else 'unknown'}: {e}",
                extra={"request_path": request.url.path, "user_agent": request.headers.get("User-Agent")}
            )
            raise HTTPException(
                status_code=401,
                detail="Authentication failed"
            )

Middleware security features:

Path exclusions for health checks and monitoring
Comprehensive error handling with security logging
Performance monitoring tracks authentication latency
IP and user agent logging for security analysis

Step 1.3.5: Server Class and Dependencies

# src/secure_mcp_server.py

from mcp.server.fastmcp import FastMCP
from src.auth.jwt_auth import JWTManager
from src.auth.permissions import require_permission, Permission
from src.auth.middleware import MCPAuthMiddleware
from typing import Dict, List
import re
import os
from pathlib import Path

Now we initialize the secure MCP server with all security components:

class SecureMCPServer:
    """Production-ready MCP server with comprehensive security."""

    def __init__(self, name: str = "Secure MCP Server"):
        # Core components initialization
        self.mcp = FastMCP(name)
        self.jwt_manager = JWTManager()
        self.auth_middleware = MCPAuthMiddleware(self.jwt_manager)

        # Security configuration
        self.allowed_file_patterns = [r'^/tmp/.*\.txt$', r'^/data/.*\.(json|csv)$']
        self.setup_security_tools()

Step 1.3.6: Basic Security Tools

    def setup_security_tools(self):
        """Configure MCP tools with appropriate security controls."""

        @self.mcp.tool()
        @require_permission(Permission.READ_WEATHER)
        async def get_weather(city: str) -> Dict:
            """Get weather data - requires weather:read permission."""
            # Input validation
            if not city or len(city) > 100:
                raise HTTPException(status_code=400, detail="Invalid city name")

            # Simulated weather API call
            return {
                "city": city,
                "temperature": 22,
                "condition": "Sunny",
                "timestamp": datetime.now().isoformat()
            }

Step 1.3.7: File Operations with Security

        @self.mcp.tool()
        @require_permission(Permission.WRITE_FILES)
        async def write_file(path: str, content: str) -> Dict:
            """Write file with path validation and size limits."""
            # Security validations
            if not self._validate_file_path(path):
                raise HTTPException(status_code=400, detail="File path not allowed")

            if len(content) > 1024 * 1024:  # 1MB limit
                raise HTTPException(status_code=400, detail="File too large")

            # Secure file writing logic would go here
            return {"success": True, "path": path, "size": len(content)}

Step 1.3.8: Administrative Functions

        @self.mcp.tool()
        @require_permission(Permission.ADMIN_USERS)
        async def list_users() -> List[Dict]:
            """List system users - admin only."""
            # This would typically query a database
            return [
                {"id": 1, "username": "admin", "role": "admin", "active": True},
                {"id": 2, "username": "user1", "role": "user", "active": True}
            ]

    def _validate_file_path(self, path: str) -> bool:
        """Validate file path against security patterns."""
        return any(re.match(pattern, path) for pattern in self.allowed_file_patterns)

Security integration benefits:

Permission decorators provide declarative access control
Input validation prevents injection attacks
Path restrictions limit file system access
Size limits prevent resource exhaustion attacks

Part 2: API Key Management (20 minutes)¶

Security progression: Now that we have JWT authentication working, let's add API keys for machine-to-machine authentication scenarios where interactive login isn't practical.

Step 2.1: API Key System Implementation¶

In addition to JWT tokens, we'll implement API keys for machine-to-machine authentication:

Step 2.1.1: API Key Manager Setup

API keys provide secure authentication for automated systems:

# src/auth/api_keys.py

import secrets
import hashlib
import json
from datetime import datetime, timedelta
from typing import Optional, Dict, List
import uuid
import logging

logger = logging.getLogger(__name__)

class APIKeyManager:
    """Secure API key management with Redis storage and automatic expiration."""

    def __init__(self, redis_client):
        self.redis_client = redis_client
        self.key_prefix = "api_key:"
        self.default_expiry_days = 90
        self.key_length = 32  # 32 bytes = 256 bits of entropy

Step 2.1.2: Secure Key Generation

    def _generate_secure_key(self) -> tuple[str, str]:
        """Generate cryptographically secure API key and ID."""
        key_id = str(uuid.uuid4())
        # Format: mcp_<base64-url-safe-32-bytes>
        api_key = f"mcp_{secrets.token_urlsafe(self.key_length)}"
        return key_id, api_key

    def _hash_api_key(self, api_key: str) -> str:
        """Hash API key for secure storage."""
        return hashlib.sha256(api_key.encode()).hexdigest()

API key security:

UUID key IDs provide collision-free identifiers
URL-safe encoding prevents issues in HTTP headers
SHA256 hashing protects stored keys from database breaches

Step 2.1.3: Metadata Creation

    def _create_key_metadata(self, key_id: str, user_id: str, name: str,
                            permissions: List[str], expiry_days: int) -> Dict:
        """Create comprehensive metadata for API key."""
        now = datetime.now()
        return {
            "key_id": key_id,
            "user_id": user_id,
            "name": name[:100],  # Limit name length
            "permissions": permissions,
            "created_at": now.isoformat(),
            "expires_at": (now + timedelta(days=expiry_days)).isoformat(),
            "last_used": None,
            "usage_count": 0,
            "active": True,
            "created_by": "system"  # Track creation source
        }

Step 2.1.4: Complete Key Generation

    def generate_api_key(self, user_id: str, name: str, permissions: List[str],
                        expires_in_days: int = None) -> Dict[str, str]:
        """Generate a new API key with full security metadata."""
        # Input validation
        if not user_id or not name:
            raise ValueError("User ID and name are required")

        if not permissions:
            raise ValueError("At least one permission must be specified")

        # Generate secure key components
        key_id, api_key = self._generate_secure_key()
        key_hash = self._hash_api_key(api_key)

Next, we create and store the key metadata securely:

        # Create metadata and store securely
        expiry_days = expires_in_days or self.default_expiry_days
        metadata = self._create_key_metadata(key_id, user_id, name, permissions, expiry_days)

        # Store in Redis with automatic expiration
        self._store_key_metadata(key_hash, metadata, expiry_days)

        logger.info(f"Generated API key {key_id} for user {user_id}")
        return {
            "api_key": api_key,
            "key_id": key_id,
            "expires_at": metadata["expires_at"]
        }

Step 2.1.5: Secure Storage Helper

    def _store_key_metadata(self, key_hash: str, metadata: Dict, expiry_days: int):
        """Securely store key metadata in Redis with TTL."""
        try:
            ttl_seconds = expiry_days * 24 * 60 * 60
            self.redis_client.setex(
                f"{self.key_prefix}{key_hash}",
                ttl_seconds,
                json.dumps(metadata)
            )
        except Exception as e:
            logger.error(f"Failed to store API key metadata: {e}")
            raise RuntimeError("Could not store API key")

API key generation security:

Automatic expiration reduces long-term exposure risk
Secure random generation prevents key prediction
Metadata tracking enables usage monitoring and auditing
Error handling prevents partial key creation

Step 2.1.6: Initial Key Validation

API key validation follows a multi-step security process:

    def validate_api_key(self, api_key: str) -> Optional[Dict]:
        """Validate API key with comprehensive security checks."""
        # Step 1: Format validation
        if not self._is_valid_key_format(api_key):
            return None

        try:
            # Step 2: Retrieve and validate metadata
            metadata = self._get_key_metadata(api_key)
            if not metadata:
                return None

Finally, we check the key status and update usage tracking:

            # Step 3: Check key status and update usage
            if self._is_key_active(metadata):
                self._update_key_usage(api_key, metadata)
                return metadata

            return None

        except Exception as e:
            logger.error(f"API key validation error: {e}")
            return None

Step 2.1.7: Format and Prefix Validation

    def _is_valid_key_format(self, api_key: str) -> bool:
        """Validate API key format and structure."""
        if not api_key or not isinstance(api_key, str):
            return False

        # Check prefix and length
        if not api_key.startswith("mcp_"):
            logger.warning(f"Invalid API key prefix from request")
            return False

        # Expected length: "mcp_" + 32 URL-safe base64 chars = ~47 chars
        if len(api_key) < 40 or len(api_key) > 60:
            logger.warning(f"Invalid API key length: {len(api_key)}")
            return False

        return True

Step 2.1.8: Metadata Retrieval

    def _get_key_metadata(self, api_key: str) -> Optional[Dict]:
        """Securely retrieve key metadata from storage."""
        key_hash = self._hash_api_key(api_key)

        try:
            metadata_json = self.redis_client.get(f"{self.key_prefix}{key_hash}")
            if not metadata_json:
                logger.info(f"API key not found in storage")
                return None

            metadata = json.loads(metadata_json)
            return metadata

        except json.JSONDecodeError as e:
            logger.error(f"Corrupted API key metadata: {e}")
            return None
        except Exception as e:
            logger.error(f"Failed to retrieve API key metadata: {e}")
            return None

Step 2.1.9: Active Status Checking

    def _is_key_active(self, metadata: Dict) -> bool:
        """Check if API key is still active and valid."""
        # Check active flag
        if not metadata.get("active", False):
            logger.info(f"API key {metadata.get('key_id')} is deactivated")
            return False

        # Check expiration (additional safety check)
        expires_at = metadata.get("expires_at")
        if expires_at:
            try:
                expiry = datetime.fromisoformat(expires_at.replace('Z', '+00:00'))
                if datetime.now() > expiry.replace(tzinfo=None):
                    logger.info(f"API key {metadata.get('key_id')} has expired")
                    return False
            except (ValueError, TypeError) as e:
                logger.warning(f"Invalid expiry date format: {e}")
                return False

        return True

Step 2.1.10: Usage Tracking Update

    def _update_key_usage(self, api_key: str, metadata: Dict):
        """Update key usage statistics atomically."""
        try:
            key_hash = self._hash_api_key(api_key)
            redis_key = f"{self.key_prefix}{key_hash}"

            # Update usage statistics
            metadata["last_used"] = datetime.now().isoformat()
            metadata["usage_count"] = metadata.get("usage_count", 0) + 1

            # Preserve existing TTL
            ttl = self.redis_client.ttl(redis_key)
            if ttl > 0:
                self.redis_client.setex(redis_key, ttl, json.dumps(metadata))

Usage tracking continues with fallback handling for expired TTL:

            else:
                # Fallback: use default expiry
                self.redis_client.setex(
                    redis_key,
                    self.default_expiry_days * 24 * 60 * 60,
                    json.dumps(metadata)
                )

        except Exception as e:
            # Usage tracking failure shouldn't block authentication
            logger.warning(f"Failed to update key usage statistics: {e}")

API key validation security:

Multi-step validation prevents bypassing security checks
Format validation blocks malformed or malicious keys
Active status checking enforces key revocation
Usage tracking enables monitoring and rate limiting
Graceful error handling maintains system availability

Part 3: Rate Limiting and DDoS Protection (15 minutes)¶

Security progression: With authentication established, we now add rate limiting to prevent abuse and DDoS attacks, completing our defense-in-depth strategy.

Step 3.1: Implementing Rate Limiting¶

Step 3.1.1: Rate Limiter Class Setup

Token bucket algorithm provides smooth rate limiting with burst capability:

# src/security/rate_limiter.py

import time
import json
import logging
from typing import Optional, Dict
import redis

logger = logging.getLogger(__name__)

class TokenBucketRateLimiter:
    """Token bucket rate limiter with Redis backend for distributed rate limiting."""

    def __init__(self, redis_client, default_capacity: int = 100,
                 default_refill_rate: float = 10):
        self.redis_client = redis_client
        self.default_capacity = default_capacity
        self.default_refill_rate = default_refill_rate  # tokens per second
        self.bucket_prefix = "rate_limit:"
        self.bucket_ttl = 3600  # 1 hour cleanup TTL

Token bucket principles:

Capacity: Maximum burst size allowed
Refill rate: Steady-state requests per second
Distributed: Redis enables rate limiting across multiple servers

Step 3.1.2: Bucket State Retrieval

    def _get_bucket_state(self, bucket_key: str) -> tuple[float, float]:
        """Retrieve current bucket state from Redis."""
        try:
            bucket_data = self.redis_client.get(bucket_key)

            if bucket_data:
                bucket = json.loads(bucket_data)
                return bucket["last_refill"], bucket["tokens"]
            else:
                # Initialize new bucket - start with full capacity
                return time.time(), float(self.default_capacity)

        except (json.JSONDecodeError, KeyError) as e:
            logger.warning(f"Corrupted bucket data for {bucket_key}: {e}")
            return time.time(), float(self.default_capacity)

Step 3.1.3: Token Calculation Algorithm

    def _calculate_tokens(self, last_refill: float, current_tokens: float,
                         current_time: float, capacity: int, refill_rate: float) -> float:
        """Calculate current token count using bucket algorithm."""
        # Calculate time elapsed since last refill
        time_elapsed = max(0, current_time - last_refill)

        # Calculate tokens to add (rate * time)
        tokens_to_add = time_elapsed * refill_rate

        # Add tokens but don't exceed capacity (bucket overflow)
        new_tokens = min(float(capacity), current_tokens + tokens_to_add)

        return new_tokens

Step 3.1.4: Request Authorization Check

    async def is_allowed(self, identifier: str, capacity: int = None,
                        refill_rate: float = None) -> bool:
        """Check if request should be allowed based on rate limit."""
        # Use provided limits or defaults
        capacity = capacity or self.default_capacity
        refill_rate = refill_rate or self.default_refill_rate

        bucket_key = f"{self.bucket_prefix}{identifier}"
        current_time = time.time()

        try:
            # Step 1: Get current bucket state
            last_refill, current_tokens = self._get_bucket_state(bucket_key)

            # Step 2: Calculate available tokens
            available_tokens = self._calculate_tokens(
                last_refill, current_tokens, current_time, capacity, refill_rate
            )

Now we determine if the request should be allowed and update bucket state:

            # Step 3: Check if request can be allowed
            if available_tokens >= 1.0:
                # Allow request and consume token
                remaining_tokens = available_tokens - 1.0
                allowed = True
            else:
                # Deny request, no tokens consumed
                remaining_tokens = available_tokens
                allowed = False

            # Step 4: Update bucket state
            self._update_bucket_state(bucket_key, current_time, remaining_tokens)

            return allowed

Step 3.1.5: State Persistence

    def _update_bucket_state(self, bucket_key: str, timestamp: float, tokens: float):
        """Update bucket state in Redis with TTL."""
        try:
            new_bucket = {
                "tokens": tokens,
                "last_refill": timestamp
            }

            self.redis_client.setex(
                bucket_key,
                self.bucket_ttl,
                json.dumps(new_bucket)
            )

        except Exception as e:
            logger.error(f"Failed to update bucket state for {bucket_key}: {e}")

        except Exception as e:
            logger.error(f"Rate limiting error for {identifier}: {e}")
            return True  # Fail open - availability over strict rate limiting

Rate limiting security:

Fail-open design maintains availability during Redis outages
TTL cleanup prevents infinite bucket accumulation
Precise timing ensures accurate rate calculations
Distributed consistency works across multiple server instances

Step 3.1.6: Middleware Class and Role-Based Limits

Rate limiting middleware applies different limits based on user privileges:

class RateLimitMiddleware:
    """Role-based rate limiting middleware for MCP servers."""

    def __init__(self, rate_limiter: TokenBucketRateLimiter):
        self.rate_limiter = rate_limiter

        # Hierarchical rate limits by user role
        self.limits = {
            "guest": {"capacity": 50, "refill_rate": 1},     # Very restrictive
            "user": {"capacity": 200, "refill_rate": 5},     # Standard limits
            "premium": {"capacity": 1000, "refill_rate": 20}, # Enhanced limits
            "admin": {"capacity": 5000, "refill_rate": 100}   # High limits
        }

Step 3.1.7: User Identification and Limit Selection

    def _get_rate_limits(self, user_data: Dict) -> tuple[str, Dict]:
        """Determine user identifier and appropriate rate limits."""
        # Extract primary role (use first role if multiple)
        user_roles = user_data.get("roles", ["guest"])
        primary_role = user_roles[0] if user_roles else "guest"

        # Create unique identifier for this user
        user_id = user_data.get("sub", "anonymous")
        identifier = f"user:{user_id}"

        # Get limits for this role (fallback to guest if unknown role)
        limits = self.limits.get(primary_role, self.limits["guest"])

        return identifier, limits

Step 3.1.8: Rate Limit Enforcement

    async def check_rate_limit(self, request: Request, user_data: Dict) -> bool:
        """Enforce rate limits and block excessive requests."""
        # Determine user limits
        identifier, limits = self._get_rate_limits(user_data)

        # Apply rate limiting
        allowed = await self.rate_limiter.is_allowed(
            identifier,
            capacity=limits["capacity"],
            refill_rate=limits["refill_rate"]
        )

        if not allowed:
            # Log rate limit violation
            logger.warning(
                f"Rate limit exceeded: {identifier} "
                f"(role: {user_data.get('roles', ['unknown'])[0]})"
            )

            # Return standardized rate limit response
            raise HTTPException(
                status_code=429,
                detail="Rate limit exceeded. Please try again later.",
                headers={"Retry-After": "60"}  # Suggest retry after 60 seconds
            )

        return True

Rate limiting middleware features:

Role-based limits provide fair access based on user tier
Unique identifiers prevent cross-user rate limit sharing
Standard HTTP 429 responses with retry guidance
Security logging enables monitoring and alerting
Graceful degradation when rate limiter fails

Chapter Summary¶

Security implementation complete! You've built a production-ready security system that demonstrates defense-in-depth principles through multiple complementary layers.

You've successfully implemented a comprehensive security system for MCP servers! Let's review what you've accomplished:

Security Features Implemented:¶

Authentication & Authorization¶

JWT token system with access and refresh tokens
API key management with automatic rotation
Role-based access control (RBAC) with fine-grained permissions
Token blacklisting for secure logout and revocation

Protection Mechanisms¶

Rate limiting with token bucket algorithm
Input validation and sanitization
Permission decorators for easy tool protection
Secure secret management with environment variables

Security Monitoring¶

Audit logging for all authentication events
Usage tracking for API keys and tokens
Error handling with secure failure modes
Security metrics for monitoring and alerting

Production Security Considerations:¶

Encryption: All tokens use strong cryptographic algorithms
Storage: Sensitive data is hashed, never stored in plaintext
Expiration: Short-lived tokens limit exposure windows
Monitoring: Comprehensive logging enables threat detection
Scalability: Redis backend supports high-throughput scenarios

Testing Your Understanding¶

Quick Check Questions¶

Why do we use short-lived access tokens (30 minutes) instead of long-lived ones?
A) To reduce server load
B) To limit exposure if tokens are compromised
C) To improve performance
D) To simplify implementation

A) To improve token performance
B) To enable secure logout and token revocation
C) To reduce memory usage
D) To simplify token validation

A) It counts requests per minute
B) It blocks all requests after a limit
C) It allows bursts but limits average rate
D) It only limits failed requests

A) To save storage space
B) To improve lookup performance
C) To prevent key theft from database breaches
D) To enable key rotation

A) Always allow access when in doubt
B) Always deny access when systems fail
C) Log all security events
D) Use multiple authentication methods

Practical Exercise¶

Implement a security audit system that tracks suspicious activity:

@mcp.tool()
@require_permission(Permission.VIEW_METRICS)
async def get_security_audit(time_range: str = "24h") -> Dict:
    """
    Get security audit information for the specified time range.

    TODO: Implement audit system that tracks:
    1. Failed authentication attempts
    2. Permission denied events
    3. Rate limit violations
    4. Unusual access patterns

    Args:
        time_range: Time range for audit (1h, 24h, 7d)

    Returns:
        Security audit report with metrics and alerts
    """
    # Your implementation here
    pass

Next Session Preview¶

In Session 6, we'll focus on Advanced MCP Patterns including:

Custom transport protocols for specialized use cases
Event-driven MCP architectures with webhooks
Distributed MCP server clusters and load balancing
Real-time streaming data with Server-Sent Events

Homework¶

Implement OAuth 2.0 integration for third-party authentication providers
Create a security dashboard showing real-time threat metrics
Add IP-based rate limiting in addition to user-based limits
Implement certificate-based authentication for high-security environments

Hint: Check the Session5_Test_Solutions.md file for complete implementations and advanced security patterns.

Multiple Choice Test - Session 5 (15 minutes)¶

Test your understanding of Secure MCP Servers:

Question 1: What security approach does the session recommend for MCP servers? A) Client-side security only
B) Single-layer authentication only
C) Defense-in-depth with multiple security layers
D) Network security only

Question 2: What is the minimum recommended length for JWT secret keys? A) 16 characters
B) 64 characters
C) 32 characters
D) 24 characters

Question 3: How should refresh tokens be handled for maximum security? A) Include them in URL parameters
B) Store them in localStorage
C) Store them in browser cookies only
D) Use Redis with automatic expiration and blacklisting

Question 4: Which rate limiting algorithm provides the best balance of fairness and burst handling? A) Fixed window
B) Sliding window
C) Leaky bucket
D) Token bucket

Question 5: What is the advantage of role-based permissions over user-specific permissions? A) Higher security
B) Better performance
C) Easier management and scalability
D) Simpler implementation

Question 6: What is the recommended approach for validating MCP tool inputs? A) Server-side validation using Pydantic models
B) Database constraints only
C) Client-side validation only
D) No validation needed

Question 7: What TLS version should be the minimum requirement for production MCP servers? A) SSL 3.0
B) TLS 1.1
C) TLS 1.0
D) TLS 1.2

Question 8: How should API keys be rotated securely in production? A) Rotate only when compromised
B) Automatic rotation with overlap periods
C) Never rotate keys
D) Manual rotation monthly

Question 9: What information is most critical to include in security audit logs? A) System performance metrics
B) Only successful operations
C) Debug information only
D) Authentication events and permission changes

Question 10: Which technique is most effective for protecting MCP servers from DDoS attacks? A) Blocking all international traffic
B) Using only strong authentication
C) Implementing multiple rate limiting layers
D) Increasing server capacity

🗂️ View Test Solutions →

Previous: Session 4 - Production MCP Deployment

Next: Session 6 - ACP Fundamentals →

Additional Resources¶

Remember: Security is not a feature, it's a foundation. Always assume breach, validate everything, and log comprehensively! 🔒
