🎯 Session 3: Vector Databases & Search Optimization¶

🎯📝⚙️ Learning Path Overview¶

This session offers three distinct learning paths designed to match your goals and time investment:

The Production Reality¶

In Sessions 1-2, you built a RAG system that chunks documents intelligently and extracts meaningful metadata. But when you deploy to production with 100,000 documents and concurrent users, you discover a harsh reality: naive vector storage doesn't scale.

Simple similarity search over large collections becomes painfully slow, and your system starts timing out under load. This session transforms your RAG system from basic vector matching into a high-performance search engine.

What You'll Learn:
- Production-grade indexing strategies
- Hybrid search combining semantic and lexical matching
- Optimization techniques for sub-100ms response times
- Systems that scale with your data, not against it

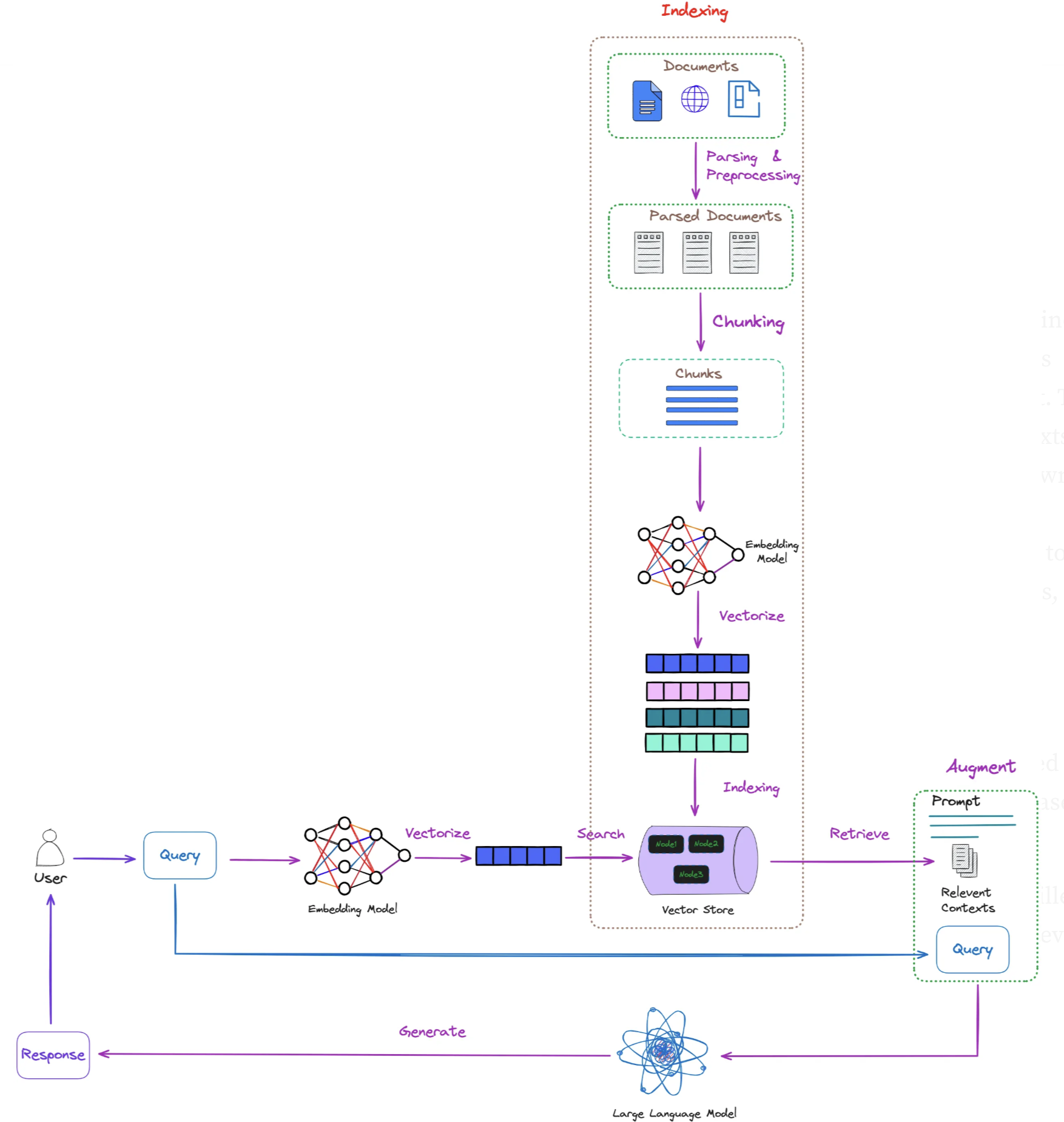

Figure 1: Vector databases serve as the central search engine in RAG architectures, handling both semantic similarity and hybrid search patterns.

🎯 Part 1: Vector Database Architecture - The Search Engine at Scale¶

Understanding Vector Database Design Principles¶

The fundamental insight is that semantic search is a geometry problem. Every document, query, and chunk becomes a point in high-dimensional space, and similarity becomes distance.

The challenge is finding the nearest neighbors efficiently in spaces with hundreds or thousands of dimensions – a problem that becomes computationally explosive without proper indexing. Vector databases solve this by intelligently organizing the space to avoid exhaustive distance calculations against every stored vector.

The Core Challenge: Similarity at Scale¶

Consider searching through 1 million documents for "machine learning techniques." A naive approach would:

1. Calculate similarity between your query vector and each document vector
2. Sort all 1 million results by similarity score
3. Return the top matches

This approach requires 1 million similarity calculations per query - far too slow for production use.

Essential Vector Database Interface¶

Here's the minimal interface that every vector database must support:

# Essential imports for vector database operations
from typing import List, Dict, Any

class VectorDatabaseInterface:
    """Essential operations for vector similarity search."""

    def __init__(self, dimension: int, metric: str = "cosine"):
        self.dimension = dimension  # Vector size (e.g., 1536 for OpenAI)
        self.metric = metric       # cosine, euclidean, or dot_product

The interface constructor defines two critical configuration parameters:
- Dimension must match your embedding model exactly
- Metric choice significantly impacts search quality

OpenAI's text-embedding-ada-002 produces 1536-dimensional vectors, while sentence-transformers models vary from 384 to 768 dimensions.

    def add_vectors(self, vectors: List[List[float]],
                   metadata: List[Dict], ids: List[str]):
        """Store vectors with associated metadata and unique IDs."""
        pass

    def search(self, query_vector: List[float],
              top_k: int = 10, filters: Dict = None):
        """Find most similar vectors with optional metadata filtering."""
        pass

These core operations define the minimal interface. The add_vectors method uses batch operations for efficiency - inserting vectors one-by-one is 10-50x slower than batch insertion.

The search method includes metadata filtering, enabling powerful use cases like "find similar documents from the last 30 days."

    def update_vector(self, vector_id: str,
                     new_vector: List[float], new_metadata: Dict):
        """Update existing vector and its metadata."""
        pass

Vector updates are essential for production systems where document content changes over time. Most vector databases handle updates as delete-and-insert operations, which can be expensive.

Key Design Decisions:

• Cosine similarity: Best for text embeddings, handles document length naturally
• Metadata storage: Enables filtering by document type, date, or user permissions
• Batch operations: Essential for efficient data loading and updates

Vector Database Selection Criteria¶

Moving from development to production requires careful consideration of index algorithms, persistence, and performance optimization.

The key factors in vector database selection:

• Scale: How many vectors will you store and search?
• Performance: What are your latency and throughput requirements?
• Features: Do you need filtering, updates, or multi-tenancy?
• Deployment: Self-hosted vs. managed service preferences?

Popular Vector Database Options¶

Selection Guidelines:

• <50K vectors: Use exact search or simple ChromaDB
• 50K-1M vectors: ChromaDB or Qdrant with HNSW indexing
• >1M vectors: Pinecone for managed, FAISS for custom solutions
• Complex filtering needs: Qdrant or Weaviate
• Budget constraints: Self-hosted ChromaDB or Qdrant

📝 For Production Implementation: See Production Implementation Guide

🎯 Part 2: Index Algorithms - The Heart of Performance¶

Understanding Index Algorithm Trade-offs¶

The choice between indexing algorithms determines your system's performance characteristics more than any other architectural decision. It's the difference between sub-100ms queries and multi-second timeouts, between smooth scaling and performance cliffs.

Each algorithm embodies a different philosophy for organizing high-dimensional search spaces, and understanding their trade-offs is crucial for production deployments.

HNSW (Hierarchical Navigable Small World)¶

Philosophy: Navigate through similarity space like a GPS system

• Performance: 3x faster than IVF with better accuracy
• Memory: Higher usage but consistent performance
• Best for: Real-time applications requiring <100ms latency
• Scalability: Excellent up to 10M vectors

IVF (Inverted File)¶

Philosophy: Divide and conquer through intelligent clustering

• Performance: Good balance of speed and memory efficiency
• Memory: Lower usage, better for resource-constrained environments
• Best for: Large datasets where memory is a constraint
• Scalability: Better for 10M+ vectors with limited memory

Performance Comparison¶

# Index algorithm performance characteristics
index_comparison = {
    "HNSW": {
        "query_latency": "0.1-1ms",
        "memory_usage": "High",
        "recall_at_10": "95-99%",
        "best_for": "Real-time applications"
    },
    "IVF": {
        "query_latency": "1-10ms",
        "memory_usage": "Medium",
        "recall_at_10": "85-95%",
        "best_for": "Large-scale, memory-constrained"
    }
}

This comparison encapsulates the fundamental trade-offs between the two most important vector indexing algorithms. HNSW's superior query latency comes at the cost of higher memory usage - approximately 50-100% more memory than IVF.

def recommend_index(dataset_size, memory_limit_gb, latency_requirement_ms):
    """Simple index recommendation logic."""
    if latency_requirement_ms < 100 and memory_limit_gb > 8:
        return "HNSW"
    elif dataset_size > 10_000_000 or memory_limit_gb < 4:
        return "IVF"
    else:
        return "HNSW"  # Default for balanced requirements

This decision tree demonstrates practical index selection:
- Ultra-low latency (<100ms) with sufficient memory → HNSW
- Large datasets (>10M vectors) or limited memory → IVF
- Balanced requirements → HNSW (most common choice)

⚙️ For Advanced Tuning: See Advanced HNSW Tuning

🎯 Part 3: Hybrid Search - Best of Both Worlds¶

Why Pure Semantic Search Isn't Enough¶

Pure semantic search has a blind spot: it can miss exact terminology matches in favor of conceptually similar but contextually different content.

Consider this example:
- User Query: "What's the company's policy on remote work?"
- Document Text: "Employees may work from home up to 3 days per week..."

Pure semantic search might miss this match because "remote work" and "work from home" are semantically similar but lexically different. Hybrid search catches both patterns.

The Two Components of Hybrid Search¶

1. Semantic Search (Vector Similarity)¶

• Strengths: Understands concepts, handles synonyms, captures context
• Weaknesses: May miss exact terminology, can be too broad
• Example: "ML algorithms" matches "machine learning techniques"

2. Lexical Search (Keyword Matching)¶

• Strengths: Exact term matching, handles technical terminology, fast
• Weaknesses: No concept understanding, misses synonyms
• Example: "API endpoint" only matches documents containing "API" and "endpoint"

Fusion Strategies¶

The key to effective hybrid search is combining results from both approaches:

Simple Score Averaging (Not Recommended)¶

# Naive approach - has problems
combined_score = (semantic_score + keyword_score) / 2

Problems:
- Semantic and keyword scores use different scales
- May unfairly weight one approach over the other
- Doesn't handle missing results well

Reciprocal Rank Fusion (RRF) - Recommended¶

# Better approach - works with rankings, not scores
def rrf_score(rank, k=60):
    return 1 / (k + rank + 1)

final_score = semantic_rrf + keyword_rrf

Advantages:
- Works with rankings instead of raw scores
- No normalization needed
- Robust to outliers and scale differences
- Mathematically principled

Performance Impact¶

Hybrid search typically provides:
- 15-25% better precision than pure semantic search
- Better user satisfaction through exact terminology matching
- Improved handling of technical domains and proper nouns

📝 For Implementation: See Advanced Hybrid Search

🎯 Part 4: Performance Optimization Principles¶

Essential Optimization Strategies¶

Even with optimal indexing and hybrid search, production systems need additional optimization layers to maintain performance under real-world load.

Users expect consistent sub-100ms response times regardless of query complexity, concurrent load, or dataset size.

Core Optimization Techniques¶

1. Query Caching¶

Impact: 70-80% hit rate for common queries saves significant compute

# Essential caching pattern
cache_key = hash(f"{query}_{top_k}")
if cache_key in query_cache:
    return cached_result  # 95% latency reduction

Users often ask similar or repeated questions in RAG systems, making caching highly effective.

2. Batch Processing¶

Impact: 3-5x improvement for bulk operations

• Process multiple queries simultaneously
• Batch vector insertions (1000+ at a time)
• Amortize database connection overhead

3. Index Parameter Tuning¶

Impact: 2-3x speed improvements possible

HNSW Key Parameters:
- M: Controls connectivity (higher = more accurate, more memory)
- ef_construction: Build quality (higher = better graph, slower build)
- ef_search: Runtime speed/accuracy trade-off

4. Performance Monitoring¶

Critical Metrics:
- P50, P95, P99 latencies: Not just averages
- Cache hit rates: Should be 60-80% for good performance
- Error rates: Monitor system health
- Throughput: Queries per second capacity

Adaptive Optimization¶

Production systems should automatically adjust parameters based on observed performance:

# Simple adaptive tuning concept
if p95_latency > 200ms:
    reduce_ef_search()  # Trade accuracy for speed

if cache_hit_rate < 60%:
    increase_cache_size()  # Improve hit rates

📝 For Detailed Implementation: See Performance Optimization

🎯 Key Takeaways¶

Essential Concepts Mastered¶

Vector Database Fundamentals:
- Vector databases transform semantic search into a geometry problem
- Cosine similarity is best for text embeddings
- Batch operations are 10-50x faster than single insertions

Index Algorithm Selection:
- HNSW: Best for speed and accuracy with sufficient memory
- IVF: Better for large datasets with memory constraints
- Choose based on dataset size, memory limits, and latency requirements

Hybrid Search Benefits:
- Combines semantic understanding with exact terminology matching
- 15-25% better precision than pure semantic search
- Reciprocal Rank Fusion (RRF) is superior to simple score averaging

Performance Optimization:
- Query caching provides 95% latency reduction for repeated queries
- Monitor P95/P99 latencies, not just averages
- Adaptive tuning enables automatic parameter optimization

Next Steps for Each Learning Path¶

📝 Participant Path - Ready for Implementation¶

Continue with practical guides:
- Production Implementation Guide
- Performance Optimization

⚙️ Implementer Path - Advanced Mastery¶

Explore deep technical topics:
- Advanced HNSW Tuning
- Advanced Hybrid Search

📝 Multiple Choice Test - Session 3¶

Test your understanding of vector databases and search optimization:

Question 1: Which similarity metric is most suitable for RAG applications using text embeddings?
A) Euclidean distance
B) Manhattan distance
C) Cosine similarity
D) Hamming distance

Question 2: What is the primary advantage of HNSW indexing over IVF indexing?
A) Lower memory usage
B) Better compression ratios
C) Faster query performance with high recall
D) Simpler configuration

Question 3: In Reciprocal Rank Fusion (RRF), what does the 'k' parameter control?
A) Number of results to return
B) Weight balance between semantic and lexical scores
C) The smoothing factor in rank combination
D) Maximum number of query variants

Question 4: What is the key benefit of cross-encoder reranking compared to bi-encoder similarity?
A) Faster inference speed
B) Lower computational requirements
C) Joint processing of query-document pairs for better accuracy
D) Simpler model architecture

Question 5: When should you choose IVF indexing over HNSW for vector search?
A) When you need the fastest possible queries
B) When you have limited memory and large datasets
C) When accuracy is more important than speed
D) When you need real-time updates

Question 6: What is the purpose of the 'ef_construction' parameter in HNSW?
A) Controls memory usage during search
B) Determines the number of connections per node
C) Sets the dynamic candidate list size during index building
D) Defines the maximum number of layers

Question 7: In hybrid search, what does BM25 provide that semantic search lacks?
A) Better understanding of context
B) Exact term matching and frequency analysis
C) Handling of synonyms and related concepts
D) Multi-language support

Question 8: Why is query caching particularly effective in RAG systems?
A) Vector embeddings are expensive to compute
B) Users often ask similar or repeated questions
C) Database queries are the main bottleneck
D) All of the above

View Solutions →

🧭 Navigation¶

Previous: Session 2 - Implementation →
Next: Session 4 - Team Orchestration →
