Session 0: Introduction to RAG Architecture¶

Learning Outcomes¶

By the end of this session, you will be able to: - Understand the fundamental architecture and components of RAG systems - Analyze the evolution of RAG from 2017 to 2025 and key technological advances - Identify common problems in RAG implementations and their solutions - Compare different RAG variants and their use cases - Evaluate when to use RAG versus other AI approaches

Chapter Overview¶

What you'll learn: Retrieval-Augmented Generation Fundamentals¶

Retrieval-Augmented Generation (RAG) represents the most significant breakthrough in AI knowledge systems since the advent of large language models. While traditional LLMs suffer from knowledge cutoffs, hallucinations, and inability to access real-time information, RAG solves these critical problems by creating a dynamic bridge between language models and external knowledge sources.

Why it matters: Real-World Impact and Industry Adoption¶

RAG is revolutionizing industries across the board in 2024-2025:

• Healthcare: Major hospital networks report 30% reduction in misdiagnoses and 40% increase in early detection of rare diseases using RAG-powered clinical decision support
• Customer Support: Companies like Shopify use RAG to deliver precise, contextually accurate responses from dynamic inventories and FAQs
• Legal Services: Legal AI assistants now retrieve relevant case law in real-time, transforming legal research efficiency
• Enterprise Search: Google's Vertex AI Search uses advanced RAG architectures for document intelligence across organizations

How it stands out: RAG vs. Alternatives¶

RAG's Competitive Advantages (2024 Analysis):

• Dynamic Knowledge Access: Unlike fine-tuning, RAG provides live information updates without expensive model retraining
• Transparency and Trust: RAG shows source attribution, critical for healthcare, legal, and financial applications
• Cost-Effectiveness: Once deployed, RAG updates itself with new data, reducing developer workload
• Reduced Hallucinations: By grounding responses in retrieved facts, RAG reduces AI hallucinations by 30-50% across various domains

Where you'll apply it: Common Use Cases¶

High-Value RAG Applications: - Customer support bots with continually-updated knowledge bases - Research assistants requiring real-time data (stocks, news, scientific papers) - Document intelligence systems for large repositories - Domain-specific expertise systems (medical, legal, technical documentation)

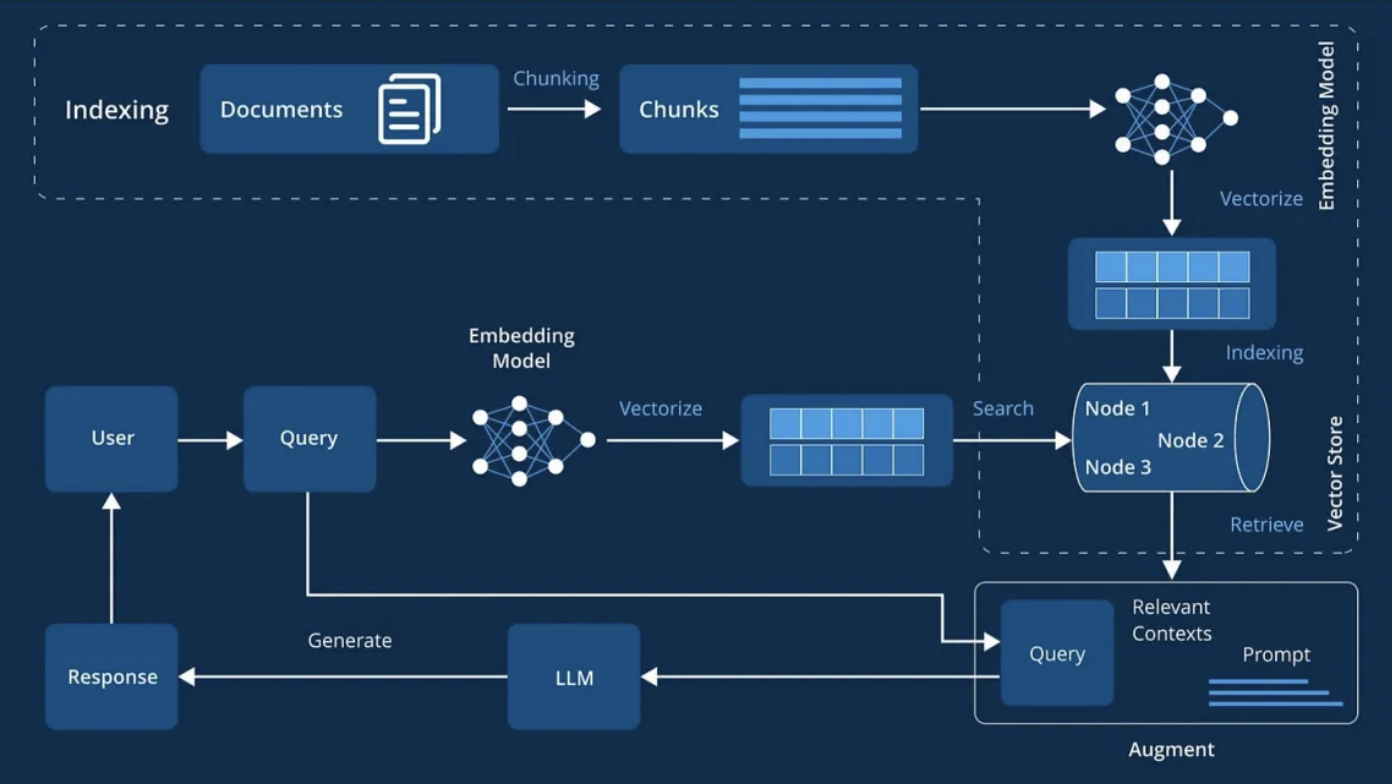

Figure 1: The RAG architecture that revolutionized AI knowledge systems - combining the reasoning power of LLMs with precise information retrieval

Learning Path Options¶

Observer Path (35 minutes): Understand concepts and see architectural patterns - Focus: Quick insights with industry context and visual demonstrations - Best for: Getting oriented and understanding the business value

🙋‍♂️ Participant Path (50 minutes): Follow code demonstrations and analyze implementations - Focus: Hands-on understanding through guided examples - Best for: Learning through practical implementation patterns

🛠️ Implementer Path (90 minutes): Advanced patterns and enterprise architectures - Focus: Complex systems, optimization, and production considerations - Best for: Deep technical mastery and system design

Part 1: RAG Architecture Fundamentals (Observer: 15 min | Participant: 20 min)¶

Understanding RAG Architecture¶

The Three-Stage RAG Pipeline: Every RAG system follows a consistent three-stage architecture that transforms static knowledge into dynamic, queryable intelligence:

1. Indexing Stage (Offline Preparation)

This is where we prepare knowledge for retrieval:

# RAG Indexer - Simple Implementation

class RAGIndexer:
    def __init__(self, embedding_model, vector_store):
        self.embedding_model = embedding_model  # Converts text to vectors
        self.vector_store = vector_store        # Stores and searches vectors

    def process_documents(self, documents):
        # Clean and split documents into chunks
        chunks = self.chunk_documents(documents)

        # Convert text to searchable vectors
        embeddings = self.embedding_model.embed(chunks)

        # Store for fast retrieval
        self.vector_store.add(chunks, embeddings)

Code Explanation: - Line 3-4: Initialize with an embedding model (like OpenAI's text-embedding-ada-002) and vector database (like Pinecone or Chroma) - Line 7: Split documents into manageable chunks (typically 500-1000 tokens each) - Line 10: Convert text chunks into dense vector representations that capture semantic meaning - Line 13: Store vectors in a database optimized for similarity search

Key Indexing Operations: - Document Parsing: Extract text from PDFs, HTML, Word docs - Text Chunking: Split into retrievable segments while preserving context - Vector Embedding: Transform text into dense numerical representations - Database Storage: Index vectors for efficient similarity search

2. Retrieval Stage (Real-time Query Processing)

When a user asks a question, we find the most relevant information:

# RAG Retriever - Query Processing

class RAGRetriever:
    def __init__(self, embedding_model, vector_store, top_k=5):
        self.embedding_model = embedding_model  # Same model as indexing
        self.vector_store = vector_store        # Our indexed knowledge
        self.top_k = top_k                      # Number of chunks to retrieve

    def retrieve_context(self, user_query):
        # Convert user question to vector
        query_vector = self.embedding_model.embed(user_query)

        # Find most similar document chunks
        relevant_chunks = self.vector_store.similarity_search(
            query_vector, k=self.top_k
        )

        # Return best matching content
        return self.rank_and_filter(relevant_chunks)

Code Explanation: - Line 3-5: Configure retriever with same embedding model as indexing (critical for compatibility) - Line 9: Convert user's natural language query into the same vector space as stored documents - Line 12-15: Search vector database for chunks with highest semantic similarity - Line 18: Apply additional ranking and quality filtering to improve results

Key Retrieval Operations: - Query Embedding: Transform user questions into searchable vectors - Similarity Search: Find semantically related content using cosine similarity - Relevance Ranking: Order results by relevance scores - Quality Filtering: Remove low-quality or off-topic chunks

3. Generation Stage (Response Synthesis)

Finally, we combine retrieved context with the LLM to generate accurate answers:

# RAG Generator - Response Synthesis

class RAGGenerator:
    def __init__(self, llm_model):
        self.llm_model = llm_model  # GPT-4, Claude, etc.

    def generate_response(self, user_query, context_chunks):
        # Build context-enhanced prompt
        augmented_prompt = f"""
        Context: {self.format_context(context_chunks)}

        Question: {user_query}

        Answer based only on the provided context:
        """

        # Generate grounded response
        response = self.llm_model.generate(augmented_prompt)
        return self.validate_response(response, context_chunks)

Code Explanation: - Line 3: Initialize with chosen LLM (GPT-4, Claude, Llama, etc.) - Line 7-13: Create prompt that combines user question with retrieved context - Line 16: Generate response using the enhanced prompt that grounds the LLM in factual content - Line 17: Validate that the response actually uses the provided context

Critical Generation Principles: - Context Grounding: LLM must base answers on retrieved information, not training data - Prompt Engineering: Well-designed prompts ensure focus on provided context - Response Validation: Check that outputs are actually grounded in retrieved content - Source Attribution: Include references to original documents when possible

PARTICIPANT PATH: Implementing a Complete RAG Pipeline¶

Building on the basic architecture, let's see how these components work together in practice:

# Complete RAG System Integration

class BasicRAGSystem:
    def __init__(self, embedding_model, vector_store, llm):
        self.indexer = RAGIndexer(embedding_model, vector_store)
        self.retriever = RAGRetriever(embedding_model, vector_store)
        self.generator = RAGGenerator(llm)

    def process_documents(self, documents):
        """Index documents for retrieval"""
        return self.indexer.process_documents(documents)

    def query(self, user_question):
        """Complete RAG pipeline: retrieve + generate"""
        # Retrieve relevant context
        context = self.retriever.retrieve_context(user_question)

        # Generate grounded response
        return self.generator.generate_response(user_question, context)

IMPLEMENTER PATH: Advanced Architecture Patterns¶

See optional modules below for enterprise-level architectures, multi-agent systems, and production optimizations

Part 2: RAG Evolution Timeline (2017-2025) (Observer: 10 min | Participant: 15 min)¶

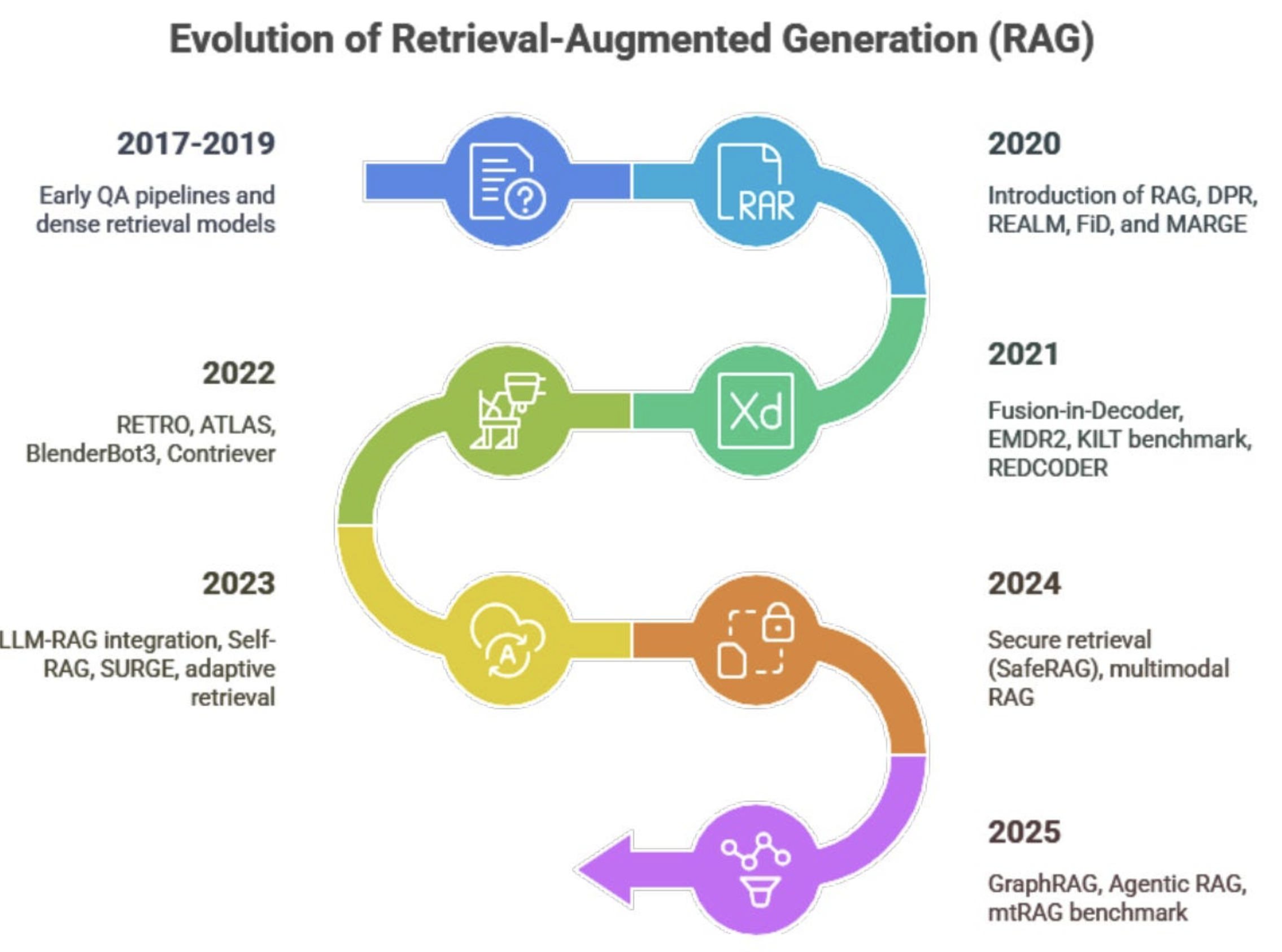

Figure 2: The evolution of RAG from simple keyword search to sophisticated agentic systems

Phase 1: Early Dense Retrieval (2017-2019) - The Foundation Era¶

The Breakthrough: Moving from keywords to semantic understanding

This era established that computers could understand meaning, not just match words. The key innovation was using dense vector embeddings to capture semantic relationships that keyword search missed.

Key Developments: - DrQA (2017): First system to expose limitations of keyword-based search - ORQA (2019): Proved dense retrieval could outperform traditional methods - FAISS: Facebook's vector search library made large-scale retrieval practical

Why It Mattered: Dense embeddings could understand that "car" and "automobile" are related, while keyword search could not. This semantic understanding became the foundation for all modern RAG systems.

Technical Foundation:

# Early Dense Retrieval (2017-2019)

class EarlyDenseRetrieval:
    def __init__(self, bi_encoder):
        self.encoder = bi_encoder  # Separate encoding for queries and documents

    def retrieve(self, query, documents):
        # Simple two-stage process
        query_vector = self.encoder.encode_query(query)
        doc_vectors = self.encoder.encode_documents(documents)

        # Basic cosine similarity
        return self.cosine_similarity_search(query_vector, doc_vectors)

Phase 2: RAG Foundation (2020) - The Breakthrough Year¶

The Game Changer: 2020 established RAG as the gold standard for knowledge-grounded AI

Revolutionary Papers: - DPR (Dense Passage Retrieval): Created the dual-encoder framework still used today - RAG Paper: Formalized the three-stage architecture (Index→Retrieve→Generate) - REALM: Showed retrieval could be integrated during model training, not just inference - FiD (Fusion-in-Decoder): Solved how to combine information from multiple sources

The Proof: RAG-enhanced models could match the performance of much larger models while being more accurate and transparent.

2020 RAG Architecture:

# Foundational RAG (2020)

class FoundationalRAG:
    def __init__(self, retriever, generator):
        self.retriever = retriever    # DPR-style dual encoder
        self.generator = generator    # BART/T5 with cross-attention

    def generate(self, query):
        # Retrieve multiple relevant passages
        passages = self.retriever.retrieve(query, k=5)

        # Fuse information from all passages
        return self.generator.fuse_and_generate(query, passages)

Code Explanation: - Line 3-4: Separate components for retrieval and generation, allowing optimization of each - Line 8: Retrieve multiple passages to get diverse perspectives on the question - Line 11: Fusion-in-Decoder approach combines information from all passages intelligently

Phase 3: Enhanced Fusion (2021-2022) - The Practical Revolution¶

The Transformation: RAG moved from research labs to production systems

Major Industry Shift: The release of GPT-3.5, GPT-4, and Claude democratized RAG development. Instead of training specialized models, developers could use general-purpose LLMs with RAG augmentation.

Key Innovations: - RAG-Fusion: Generated multiple query variations to capture different perspectives - HyDE (Hypothetical Document Embeddings): Created hypothetical answers to improve search - Reciprocal Rank Fusion: Combined results from multiple searches intelligently - Hallucination Reduction: Studies showed 30-50% reduction in AI hallucinations

The Business Impact: RAG became essential for any AI system requiring factual accuracy

Enhanced RAG Architecture:

# Enhanced RAG (2021-2022)

class EnhancedRAG:
    def __init__(self, llm, vector_store):
        self.llm = llm              # GPT-4, Claude, etc.
        self.vector_store = vector_store

    def fusion_generate(self, user_query):
        # Generate multiple query variants
        query_variants = [
            user_query,
            self.llm.rephrase(user_query),
            self.llm.expand_with_context(user_query)
        ]

        # Retrieve for each variant
        all_contexts = []
        for variant in query_variants:
            contexts = self.vector_store.search(variant)
            all_contexts.extend(contexts)

        # Combine using Reciprocal Rank Fusion
        fused_context = self.reciprocal_rank_fusion(all_contexts)

        # Generate with enhanced context
        return self.llm.generate_with_context(user_query, fused_context)

Phase 4: Adaptive Systems (2023) - The Intelligence Revolution¶

The Breakthrough: RAG systems learned to think about their own performance

Self-Correcting Intelligence: 2023 introduced RAG systems that could evaluate their own outputs, decide when to retrieve more information, and adapt their strategies based on context quality.

Game-Changing Concepts: - Self-RAG: Systems that critique their own outputs and decide when to retrieve more - Corrective RAG (CRAG): Quality assessment before using retrieved information - Adaptive Retrieval: Smart decisions about when retrieval is actually needed - Critique Tokens: Special indicators for confidence and relevance scores

The Paradigm Shift: From "always retrieve" to "intelligently decide when and how to retrieve"

Adaptive RAG Architecture:

# Adaptive RAG (2023) - Self-Correcting Systems

class AdaptiveRAG:
    def __init__(self, llm, retriever, critic):
        self.llm = llm
        self.retriever = retriever
        self.critic = critic      # Quality assessment model

    def smart_generate(self, query):
        # Step 1: Decide if retrieval is needed
        if self.critic.needs_retrieval(query):
            context = self.retriever.retrieve(query)

            # Step 2: Assess context quality
            quality_score = self.critic.assess_relevance(query, context)

            # Step 3: Corrective retrieval if needed
            if quality_score < 0.7:  # Threshold for quality
                context = self.corrective_retrieve(query, context)
        else:
            context = None  # Use parametric knowledge only

        # Step 4: Generate with self-reflection
        response = self.llm.generate_with_critique(query, context)

        # Step 5: Refine if necessary
        if self.critic.needs_improvement(response):
            return self.refine_response(query, context, response)

        return response

Phase 5: Graph-Based and Agentic (2024-2025) - The Multi-Agent Era¶

The Current Frontier: Multiple AI agents working together with knowledge graphs

Revolutionary Capabilities: - Agent Orchestration: Specialized agents for query planning, retrieval, reasoning, and synthesis - Knowledge Graph Integration: Relationship-aware retrieval that follows entity connections - Multi-Hop Reasoning: Systems that can connect information across multiple logical steps - Parallel Processing: Multiple agents working simultaneously for speed and accuracy

Real-World Impact: Microsoft's GraphRAG and similar systems now handle complex questions that require connecting multiple pieces of information across large knowledge bases.

The "Year of AI Agents": 2025 represents the evolution from simple retrieval to autonomous knowledge-gathering agents.

PARTICIPANT PATH: Understanding Agentic RAG Architecture¶

Next-Generation Multi-Agent System:

# Agentic RAG (2024-2025) - Multi-Agent Coordination

class AgenticRAG:
    def __init__(self, knowledge_graph, vector_store):
        self.kg = knowledge_graph
        self.vector_store = vector_store

        # Specialized agent team
        self.query_planner = QueryPlanningAgent()
        self.retriever = AdaptiveRetrievalAgent()
        self.reasoner = MultiHopReasoningAgent()
        self.synthesizer = ResponseSynthesisAgent()

    async def complex_query(self, user_question):
        # Step 1: Break down complex question
        plan = await self.query_planner.analyze(user_question)

        # Step 2: Parallel information gathering
        retrieval_tasks = []
        for sub_query in plan.sub_questions:
            # Each sub-query searches both vectors and graph
            task = self.retriever.search_both(
                sub_query, self.vector_store, self.kg
            )
            retrieval_tasks.append(task)

        # Step 3: Collect all information
        all_contexts = await asyncio.gather(*retrieval_tasks)

        # Step 4: Connect information logically
        reasoning = await self.reasoner.connect_information(
            user_question, all_contexts, self.kg
        )

        # Step 5: Synthesize comprehensive answer
        return await self.synthesizer.create_response(
            user_question, reasoning
        )

Code Explanation: - Line 5-9: Four specialized agents handle different aspects of complex reasoning - Line 12: Query planning breaks complex questions into manageable sub-questions - Line 15-22: Parallel retrieval from both vector databases and knowledge graphs - Line 27-30: Multi-hop reasoning connects related pieces of information - Line 32-35: Response synthesis creates coherent, comprehensive answers

This represents the cutting edge of RAG technology, where systems can handle questions requiring multi-step reasoning and complex information synthesis.

Part 3: Common RAG Problems & Solutions (Observer: 8 min | Participant: 12 min)¶

Figure 3: The five most common RAG implementation problems and their proven solutions

Critical Reality Check: RAG Limitations in 2024¶

Important Truth: Despite marketing claims, RAG doesn't eliminate hallucinations. Recent studies show RAG can actually introduce new types of errors while solving others. Understanding these limitations is crucial for building reliable systems.

Problem 1: Ineffective Chunking - The Foundation Issue¶

The Problem: Poor chunking destroys document meaning and context

Common Issues: - Arbitrary character splitting cuts through sentences and paragraphs - Loss of document structure (headers, tables, lists) - Context boundaries broken across chunks

The Solution: Structure-aware, semantic chunking that preserves meaning

# Intelligent Chunking Solution

class SmartChunker:
    def __init__(self, chunk_size=512, overlap=50):
        self.chunk_size = chunk_size    # Target size in tokens
        self.overlap = overlap          # Maintain context between chunks

    def chunk_document(self, document):
        # Step 1: Preserve document structure
        sections = self.extract_structure(document)  # Headers, paragraphs, etc.

        chunks = []
        for section in sections:
            # Step 2: Split at semantic boundaries
            section_chunks = self.semantic_split(section)

            # Step 3: Add rich metadata
            for chunk in section_chunks:
                chunk.metadata = {
                    'section': section.title,
                    'document': document.title,
                    'type': section.type  # paragraph, table, list, etc.
                }

            chunks.extend(section_chunks)

        return chunks

Why This Works: Instead of arbitrary splitting, we preserve logical document structure and add metadata that helps retrieval understand context.

Problem 2: Poor Semantic Matching - The Query-Document Gap¶

The Problem: User queries don't match how information is written in documents

Real Example: User asks "How do I fix my car?" but document says "Automobile repair procedures"

The Solution: Query enhancement techniques that bridge the semantic gap

# Query Enhancement Solution

class QueryEnhancer:
    def __init__(self, llm):
        self.llm = llm

    def enhance_query(self, user_query):
        # Strategy 1: HyDE (Hypothetical Document Embeddings)
        hypothetical_answer = self.llm.generate(
            f"Write a detailed answer to: {user_query}"
        )

        # Strategy 2: Query expansion with context
        expanded_query = self.llm.generate(
            f"Rephrase with technical terms: {user_query}"
        )

        # Strategy 3: Multiple perspectives
        alternative_phrasings = self.llm.generate(
            f"Generate 3 different ways to ask: {user_query}"
        )

        return {
            'original': user_query,
            'hypothetical': hypothetical_answer,
            'expanded': expanded_query,
            'alternatives': alternative_phrasings
        }

Why HyDE Works: Hypothetical answers are semantically closer to actual documents than questions are, dramatically improving retrieval accuracy.

Problem 3: Ambiguous User Queries - The Clarity Challenge¶

The Problem: Users ask vague questions that could have multiple interpretations

Example: "How do I set this up?" (Set up what? In what context?)

The Solution: Intelligent query clarification and context analysis

# Query Clarification Solution

class QueryClarifier:
    def __init__(self, llm):
        self.llm = llm

    def clarify_if_needed(self, user_query, conversation_history=None):
        # Analyze query clarity
        analysis = self.llm.generate(
            f"Is this query clear and specific enough? '{user_query}'"
        )

        if "unclear" in analysis.lower() or "ambiguous" in analysis.lower():
            # Generate clarifying questions
            clarifications = self.llm.generate(
                f"What clarifying questions would help understand: '{user_query}'?"
            )
            return {
                'needs_clarification': True,
                'questions': clarifications,
                'original_query': user_query
            }

        # Query is clear enough to proceed
        return {
            'needs_clarification': False,
            'enhanced_query': self.add_context(user_query, conversation_history)
        }

Problem 4: Poor Index Organization - The Structure Challenge¶

The Problem: Flat, unorganized indexes make retrieval inefficient and imprecise

Issues: - No metadata filtering capabilities - Poor organization by document type, date, or category - Inefficient search algorithms

The Solution: Hierarchical indexing with rich metadata

# Optimized Index Solution

class HierarchicalIndex:
    def __init__(self, vector_store):
        self.vector_store = vector_store

    def index_with_hierarchy(self, documents):
        for document in documents:
            # Extract rich metadata
            metadata = {
                'document_type': document.type,        # PDF, webpage, etc.
                'creation_date': document.date,
                'department': document.department,
                'topics': self.extract_topics(document),
                'language': document.language
            }

            # Create multiple index levels
            self.create_document_summary(document, metadata)
            self.index_sections(document.sections, metadata)
            self.index_chunks(document.chunks, metadata)

    def filtered_search(self, query, filters=None):
        # Step 1: Filter by metadata first
        if filters:
            candidates = self.vector_store.filter(
                department=filters.get('department'),
                date_range=filters.get('date_range'),
                document_type=filters.get('type')
            )
        else:
            candidates = self.vector_store.get_all()

        # Step 2: Semantic search within filtered results
        return self.vector_store.similarity_search(query, candidates)

Why This Works: Metadata filtering narrows candidates before expensive semantic search, dramatically improving both speed and relevance.

Problem 5: Low-Quality Retrieved Context - The Relevance Challenge¶

The Problem: Retrieved chunks are often irrelevant, redundant, or missing key information

2024 Reality Check: Studies show RAG can retrieve factually correct but misleading sources, leading to interpretation errors.

The Solution: Multi-stage context optimization and quality validation

# Context Quality Optimization Solution

class ContextOptimizer:
    def __init__(self, llm):
        self.llm = llm

    def optimize_retrieved_context(self, user_query, raw_chunks):
        # Stage 1: Relevance scoring with LLM
        scored_chunks = []
        for chunk in raw_chunks:
            relevance_score = self.llm.generate(
                f"Rate relevance 1-10 for query '{user_query}' and text '{chunk}'"
            )
            scored_chunks.append((chunk, float(relevance_score)))

        # Stage 2: Remove low-quality chunks
        quality_threshold = 7.0
        high_quality = [
            chunk for chunk, score in scored_chunks
            if score >= quality_threshold
        ]

        # Stage 3: Diversity filtering to avoid redundancy
        diverse_chunks = self.remove_redundant_information(high_quality)

        # Stage 4: Final validation
        validated_context = self.validate_completeness(
            user_query, diverse_chunks
        )

        return validated_context

    def validate_completeness(self, query, context_chunks):
        # Check if context is sufficient to answer the query
        assessment = self.llm.generate(
            f"Can this context fully answer '{query}'? Context: {context_chunks}"
        )

        if "insufficient" in assessment.lower():
            # Trigger additional retrieval or flag incomplete context
            return self.request_additional_context(query, context_chunks)

        return context_chunks

Critical Innovation: LLM-based quality assessment catches issues that traditional similarity scoring misses.

Part 4: RAG vs. Alternative Approaches (Observer: 7 min | Participant: 10 min)¶

When to Choose RAG (2024 Decision Framework)¶

RAG Excels When: - Information changes frequently (daily/weekly updates) - You need source attribution and transparency - Working with large, diverse knowledge bases - Budget constraints prevent frequent model retraining - Accuracy and reducing hallucinations are priorities

Real-World RAG Success Stories (2024): - Healthcare: 30% reduction in misdiagnoses with clinical decision support - Legal: AI assistants retrieve relevant case law in real-time - Customer Support: Shopify's RAG-powered bots provide contextually accurate responses - Enterprise Search: Google's Vertex AI handles document intelligence at scale

# RAG Decision Framework

class RAGDecisionHelper:
    def should_use_rag(self, use_case):
        rag_score = 0

        # Dynamic data (+3 points)
        if use_case.data_changes_frequency == 'daily' or 'weekly':
            rag_score += 3

        # Need transparency (+2 points)
        if use_case.requires_source_attribution:
            rag_score += 2

        # Large knowledge base (+2 points)
        if use_case.knowledge_base_size > '1M documents':
            rag_score += 2

        # Limited retraining budget (+2 points)
        if use_case.retraining_budget == 'limited':
            rag_score += 2

        return rag_score >= 5  # Recommend RAG if score >= 5

Alternative Approaches: When NOT to Use RAG¶

Fine-Tuning vs. RAG (2024 Analysis):

Choose Fine-Tuning When: - Domain knowledge is relatively stable (changes yearly or less) - You need consistent output formatting and style - Low-latency responses are critical - Data privacy requires embedding knowledge in model weights - Working with smaller, specialized models

Function Calling vs. RAG:

Choose Function Calling When: - Need real-time data (weather, stock prices, live calculations) - Task automation and workflow execution required - Structured API interactions are primary need - Computational tasks rather than knowledge synthesis

2024 Cost Analysis:

# Cost-Benefit Decision Framework

class ApproachSelector:
    def recommend_approach(self, requirements):
        if requirements.data_freshness == 'real_time':
            return "Function Calling - Live API access"

        elif requirements.knowledge_stability == 'stable' and requirements.budget == 'high':
            return "Fine-tuning - Embedded expertise"

        elif requirements.transparency == 'required' and requirements.data_size == 'large':
            return "RAG - Scalable knowledge with attribution"

        elif requirements.complexity == 'high':
            return "Hybrid - Combine RAG + Fine-tuning + Function Calling"

        else:
            return "Start with RAG - Most flexible foundation"

Hybrid Approaches - The 2024 Trend: Most production systems now combine multiple techniques. For example: - Fine-tuned model for domain expertise - RAG for dynamic knowledge updates - Function calling for real-time data and computations

PARTICIPANT PATH: Building a Hybrid System¶

Real-world systems often combine RAG with other approaches:

# Hybrid System Architecture

class IntelligentHybridSystem:
    def __init__(self, rag_system, fine_tuned_model, function_registry):
        self.rag = rag_system              # For knowledge retrieval
        self.specialist = fine_tuned_model  # For domain expertise
        self.functions = function_registry  # For computations

    def route_query(self, user_query):
        # Analyze query type
        query_type = self.analyze_query_intent(user_query)

        if query_type == 'factual_lookup':
            # Use RAG for knowledge retrieval
            return self.rag.query(user_query)

        elif query_type == 'domain_specific':
            # Use fine-tuned model for specialized tasks
            return self.specialist.generate(user_query)

        elif query_type == 'computation':
            # Use function calling for calculations
            return self.functions.execute(user_query)

        else:
            # Complex query - combine approaches
            knowledge = self.rag.retrieve(user_query)
            computation = self.functions.compute_if_needed(user_query)
            return self.specialist.synthesize(user_query, knowledge, computation)

This intelligent routing ensures each query type gets handled by the most appropriate technique.

Interactive Exercise: RAG Architecture Design¶

Scenario: Legal Document Assistant¶

Challenge: Design a RAG system for lawyers to find relevant case law and statutes

Critical Requirements: - Extreme accuracy (legal consequences for errors) - Proper citation formatting - Multi-jurisdictional search capabilities - Precedent-aware retrieval

PARTICIPANT PATH: Legal RAG Solution Design¶

# Legal RAG - Specialized System

class LegalRAGSystem:
    def __init__(self):
        # Domain-specific components
        self.embedder = LegalBERTEmbedder()        # Legal-trained embeddings
        self.citation_parser = CitationParser()    # Understand legal citations
        self.jurisdiction_filter = JurisdictionFilter()
        self.precedent_analyzer = PrecedentAnalyzer()

    def process_legal_query(self, query, jurisdiction='federal'):
        # Step 1: Parse legal concepts and entities
        legal_entities = self.extract_legal_entities(query)

        # Step 2: Jurisdiction-aware search
        relevant_cases = self.jurisdiction_filter.search(
            query, legal_entities, jurisdiction
        )

        # Step 3: Precedent analysis
        precedent_chain = self.precedent_analyzer.build_chain(
            relevant_cases
        )

        # Step 4: Generate response with proper citations
        response = self.generate_legal_response(
            query, precedent_chain, jurisdiction
        )

        # Step 5: Validation and disclaimers
        return self.add_legal_disclaimers(response)

Key Design Decisions: 1. Legal-specific embeddings trained on case law and statutes 2. Citation-aware retrieval that understands legal document references 3. Jurisdiction filtering to ensure relevant legal authority 4. Precedent analysis to understand case law hierarchy 5. Mandatory disclaimers for legal compliance

Why This Approach Works: Legal documents require domain-specific understanding that general embeddings can't provide. The specialized components ensure accuracy and legal compliance.

Chapter Summary¶

Key Takeaways¶

1. RAG Fundamentals: Three-stage pipeline (Index → Retrieve → Generate) that transforms static documents into dynamic, queryable knowledge

2. Industry Impact: RAG is revolutionizing healthcare (30% reduction in misdiagnoses), legal services, customer support, and enterprise search in 2024-2025

3. Evolution Timeline: From simple keyword search (2017) to sophisticated multi-agent systems with knowledge graphs (2024-2025)

4. Problem-Solution Mastery: Five common RAG problems have proven solutions:

5. Ineffective chunking → Structure-aware processing
6. Poor semantic matching → Query enhancement (HyDE)
7. Ambiguous queries → Intelligent clarification
8. Poor index organization → Hierarchical metadata indexing

9. Low-quality context → Multi-stage optimization

10. Strategic Decision Framework: RAG vs. Fine-tuning vs. Function Calling depends on data freshness, transparency needs, and use case requirements

Critical Success Factors for Production RAG¶

• Quality-First Indexing: Structure-aware chunking with rich metadata
• Enhanced Retrieval: Query enhancement and semantic gap bridging
• Context Optimization: Multi-stage filtering and quality validation
• Continuous Monitoring: Real-world evaluation and performance tracking
• Hybrid Architecture: Combine RAG with other techniques when appropriate

Optional Deep-Dive Modules¶

⚠️ OPTIONAL CONTENT - Choose based on your goals:

• Module A: Advanced RAG Patterns - Complex workflow coordination & dynamic agent generation
• Module B: Enterprise RAG Architectures - Production state handling & sophisticated routing

Multiple Choice Test - Session 0 (15 minutes)¶

Question 1: What are the three main stages of a RAG system? A) Store, Find, Answer B) Index, Retrieve, Generate C) Parse, Search, Respond D) Chunk, Embed, Query

Question 2: Which industry reported a 30% reduction in misdiagnoses using RAG in 2024? A) Legal services B) Healthcare C) Customer support D) Financial services

Question 3: What is the primary advantage of HyDE (Hypothetical Document Embeddings)? A) Reduces computational cost B) Improves query-document semantic alignment C) Eliminates need for vector databases D) Simplifies system architecture

Question 4: Which RAG evolution phase introduced self-correcting mechanisms? A) 2020 - RAG Foundation B) 2021-2022 - Enhanced Fusion C) 2023 - Adaptive Systems D) 2024-2025 - Graph-Based and Agentic

Question 5: When should you choose RAG over fine-tuning? A) When the domain knowledge is static B) When you need frequent knowledge updates C) When computational resources are unlimited D) When source attribution is not needed

Question 6: What is structure-aware chunking designed to solve? A) Reducing computational costs B) Preserving document meaning and context boundaries C) Increasing chunk size limits D) Eliminating metadata requirements

Question 7: Which technique bridges the semantic gap between user queries and documents? A) Reciprocal Rank Fusion B) Query expansion with synonyms C) HyDE (Hypothetical Document Embeddings) D) Metadata filtering

Question 8: What is the key benefit of Agentic RAG systems? A) Simpler system architecture B) Multi-agent coordination for complex reasoning C) Lower computational requirements D) Faster retrieval speed

Question 9: According to 2024 studies, what is a critical limitation of RAG systems? A) They completely eliminate hallucinations B) They can introduce new types of errors while solving others C) They only work with small knowledge bases D) They require constant human supervision

Question 10: What characterizes the 2024-2025 "Graph-Based and Agentic" RAG phase? A) Simple two-stage pipelines B) LLM integration with existing models C) Multi-agent systems with knowledge graph integration D) Basic similarity matching with cosine distance

🗂️ View Test Solutions →

Navigation¶

Previous: Module 2: RAG Architecture (Introduction)
Next: Session 1 - Basic RAG Implementation →
